Arteor Advance - 1 module RJ45 CAT6 STP socket rose - Shielded 1Gbit/s data jack - With dust cover, toolless IDC - PoE ready

Arteor Advance Legrand

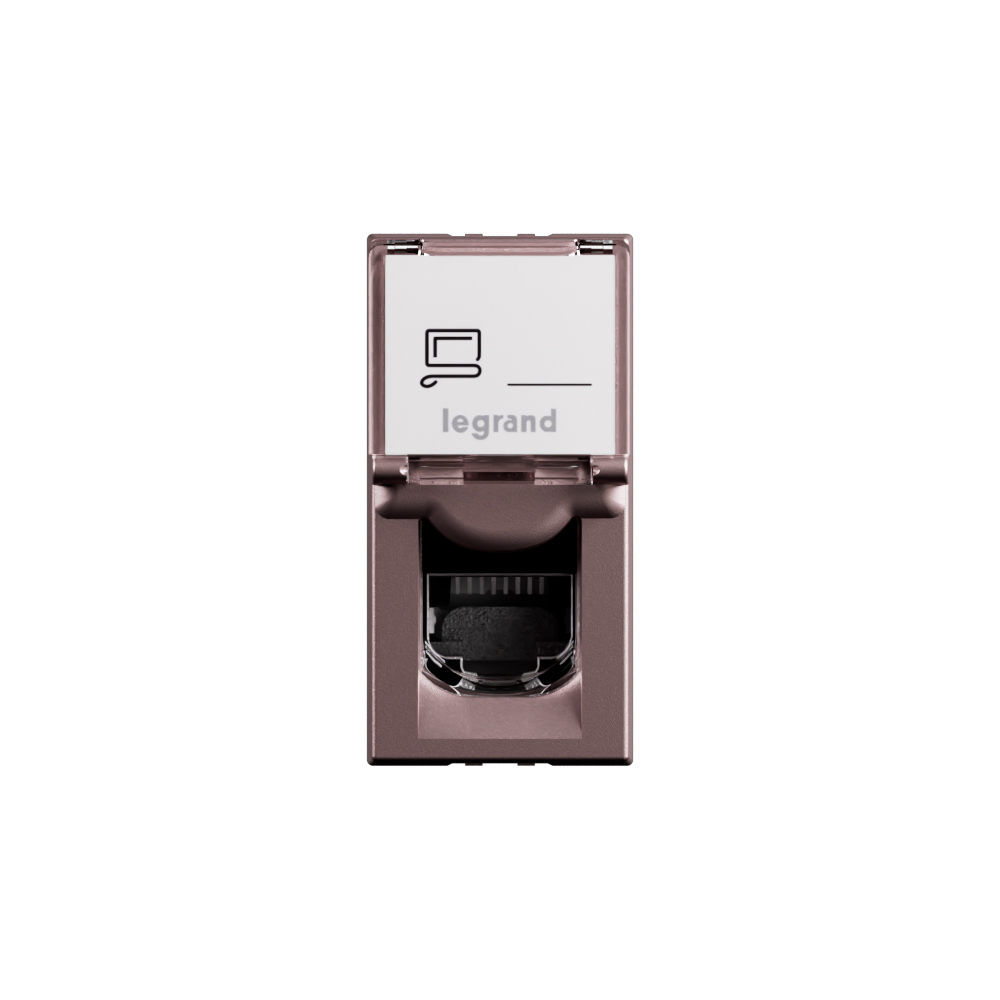

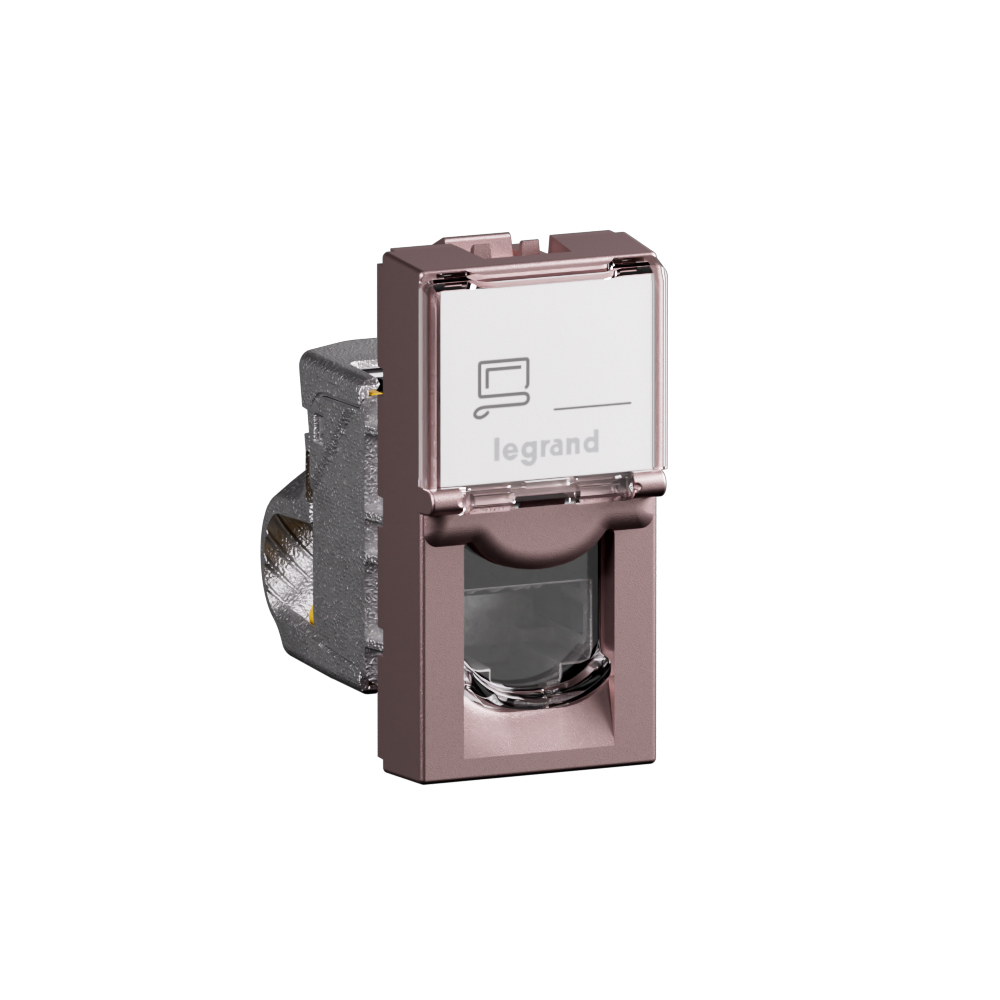

Arteor Advance - 1 module RJ45 CAT6 STP socket rose - Shielded 1Gbit/s data jack - With dust cover, toolless IDC - PoE ready

REF. AC4303RS EAN. 3414972927444
RJ45 socket connects a device to the local network, ensuring secure and reliable 1Gbit/s data transmission. Shielded Cat6 STP design supports high-capacity PoE. Transparent dust cover and toolless IDC connection simplify installation.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

RJ45 socket connects a device to the local network, ensuring secure and reliable 1Gbit/s data transmission. Shielded Cat6 STP design supports high-capacity PoE. Transparent dust cover and toolless IDC connection simplify installation.

Product characteristics
  • One RJ45 Cat 6 module providing up to 1Gigabit/s data rate, enabling transfer of a 1Gigabyte file in approximately 8 seconds for high-speed, low-latency network applications.
  • Rose-colored 1-module RJ45 socket, matching Arteor Advance aesthetic requirements while providing clear visual identification at the workstation.
  • Equipped with a transparent protective dust cover safeguarding the RJ45 connector and a shielded Cat 6 socket to minimize electromagnetic interference and ensure signal integrity.
  • Compact 1-module RJ45 Cat 6 STP socket (22.5x45mm, depth 34mm, IP20, IK03), suitable for flush, surface, duct, and floor box mounting with snap-in fastening and toolless IDC connection.
  • Supports high-capacity PoE applications, allowing simultaneous transmission of data and electric power over twisted pair Ethernet cabling for IP phones, cameras, and other powered devices.
Recommendation / Restriction
  • Conform to standards ISO/IEC 11801 Ed. 3.0, EN 50173-1 and TIA/EIA 568 C. Indoor use only.

The product's benefits

Installation
  • Supplied with rocker plates, to be equipped with support frames and plates. Equipped with connectors with quick toolless connection.
Usage
  • Suitable for commercial and residential installation. IP and analog phones. Very suitable for downloads, streaming or online games requiring low latency.
Avantages
  • Toolless connector with fast connection thanks to integrated crimping.
  • Pink finish evoking subtle blush effect
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation. Can be installed in a normal (single) flush mounting box, no need to additional wall groove cutting or cabling.

Technical characteristics

Surface mounting Yes
Flush-mounted installation Yes
Duct installation Yes
Floor box/subfloor mounted Yes
Type of fastening Engage (snap)
Assembly arrangement Basic element with central cover plate
Type of connector RJ45 8(8)
With buses/couplings Yes
Suitable for number of connectors 1
Category 6
Colour Other
Connection type Insulation displacement connector
Shielded buses Yes
Separate earthing connection No
With label space Yes
Compatible with third-party covers Yes
Separate strain relief No
Mounting method shielding connection Other
Outlet direction Straight
With dust cover Yes
With terminal resistor No
Degree of protection (IP) IP20
Mechanical coding No
Colour coding Yes
Device width 22.5 mm
Device height 45 mm
Device depth 42 mm
Number of modules (module system) 1
Built-in depth 25.2 mm
degree of impact strength (IK) IK03
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Terminal marking indication Yes
Halogen free Yes
Antimicrobial treatment No
Mounting method Flush-mounted
Maximum Input cable diameter 9 mm
Entry membrane gland type Not applicable
Cable support Not applicable

Product environmental data

Product carbon footprint
Estimation of the Global Warming Potential (kgCO₂eq) emitted during the Manufacturing phase of the product life cycle according to sector methodology
0.289
Carbon footprint Manufacturing phase (A1-A3) (kg CO2 eq.)
