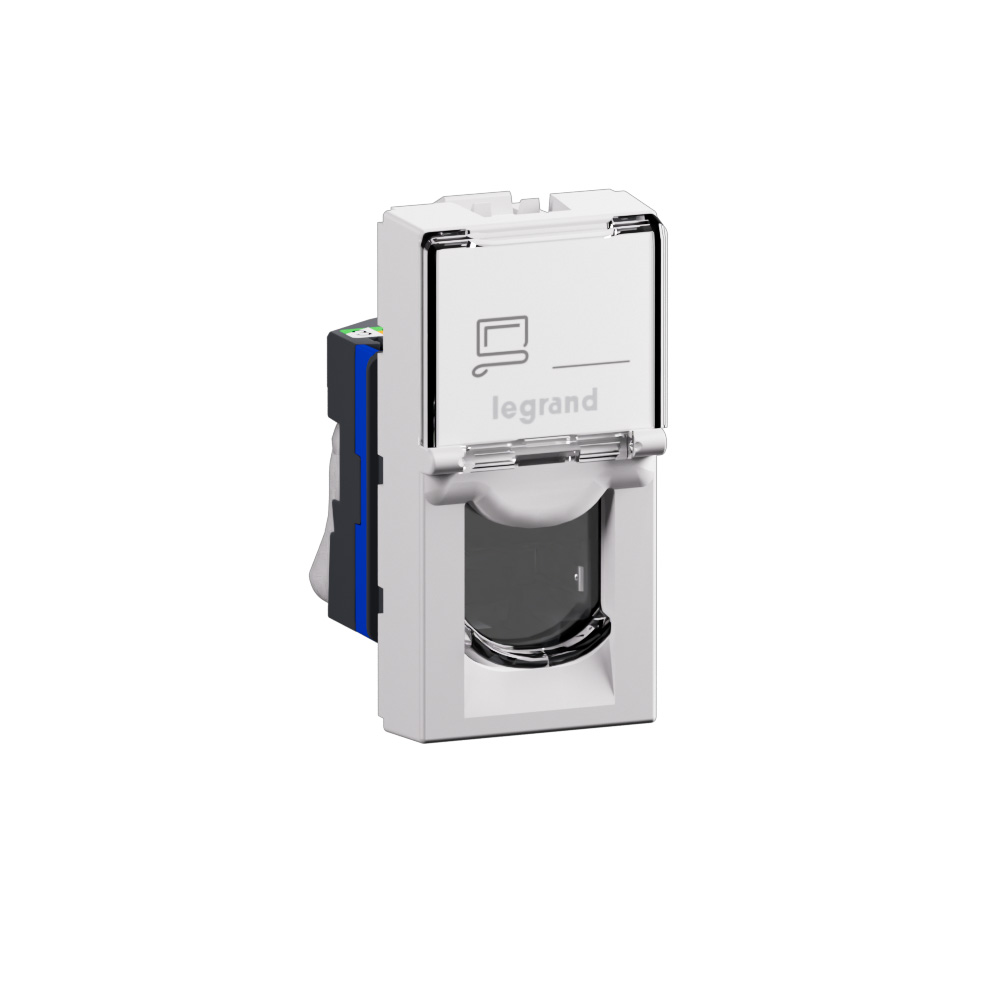

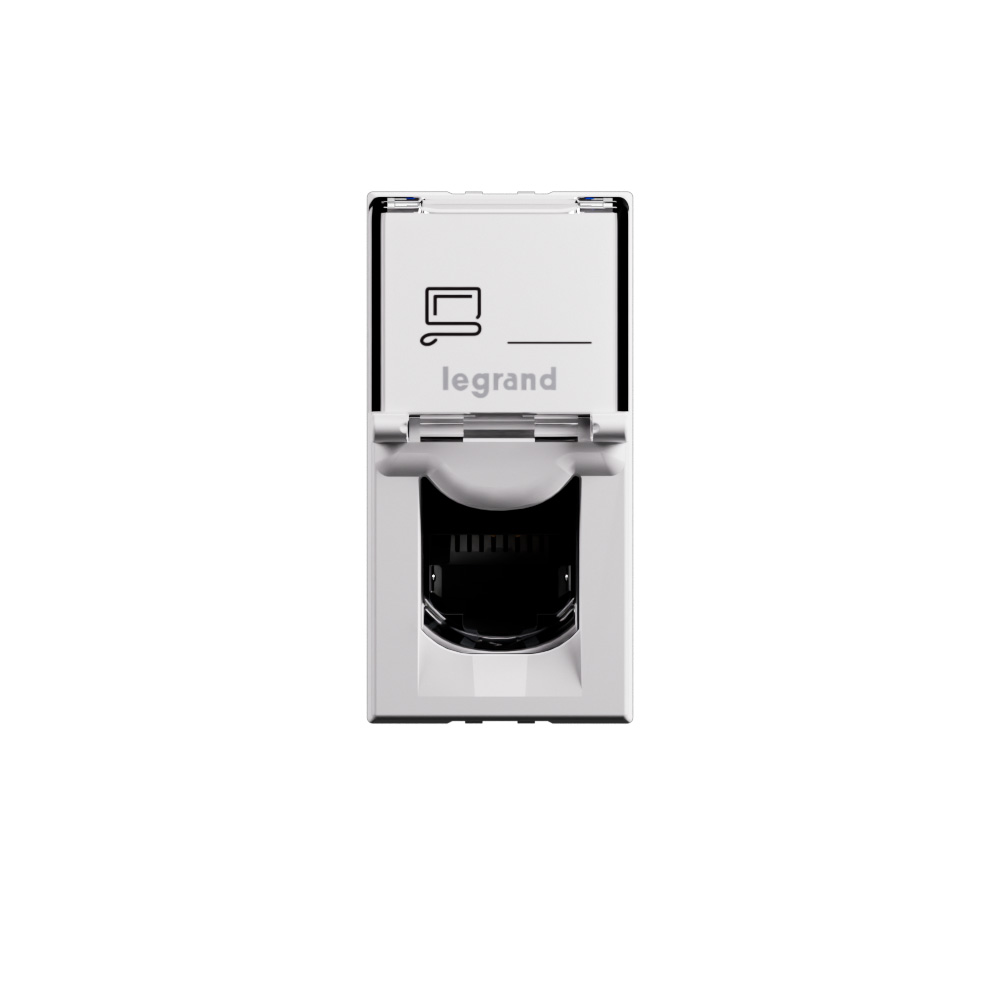

Arteor Advance - 1 module RJ45 CAT6 FTP socket matt white - Shielded data outlet up to 1Gbit/s - Matt white dust cover

Arteor Advance Legrand

Arteor Advance - 1 module RJ45 CAT6 FTP socket matt white - Shielded data outlet up to 1Gbit/s - Matt white dust cover

REF. AC4302MW EAN. 3414973081848
RJ45 socket connects a device to the local network, ensuring high-speed, reliable internet. Its CAT6 FTP performance supports up to 1GigaBit/s. Matt white finish, dust cover, and toolless IDC connection enable fast installation.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

RJ45 socket connects a device to the local network, ensuring high-speed, reliable internet. Its CAT6 FTP performance supports up to 1GigaBit/s. Matt white finish, dust cover, and toolless IDC connection enable fast installation.

Product characteristics
  • One RJ45 CAT6 FTP module supporting data rates up to 1Gigabit/s for high-speed, reliable Ethernet links
  • Matt white finish (RAL 9003) for a neutral, professional appearance matching standard wiring accessories
  • Equipped with a transparent protective dust cover to shield the RJ45 connector from dust and contamination
  • 1-module basic element with central cover plate, RJ45 8(8) connector and insulation displacement connection for fast, toolless wiring
  • IP20, IK03-rated, halogen-free design for indoor surface, flush, duct or floor box mounting, operating from -5 to 35° C
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has prewired screw-type terminals for easy and secure wire installation.
Usage
  • Toolless connector with fast connection thanks to integrated crimping.
Avantages
  • Powdery white with a smooth matte aspect

Technical characteristics

Surface mounting Yes
Flush-mounted installation Yes
Duct installation Yes
Floor box/subfloor mounted Yes
Type of fastening Engage (snap)
Assembly arrangement Basic element with central cover plate
Type of connector RJ45 8(8)
With buses/couplings Yes
Suitable for number of connectors 1
Category 6
Colour White
RAL-number 9003
Connection type Insulation displacement connector
Shielded buses No
Separate earthing connection No
With label space Yes
Compatible with third-party covers Yes
Separate strain relief No
Mounting method shielding connection None
Outlet direction Straight
With dust cover Yes
With terminal resistor No
Degree of protection (IP) IP20
Mechanical coding No
Colour coding Yes
Device width 22.5 mm
Device height 45 mm
Device depth 35 mm
Number of modules (module system) 1
Built-in depth 25.2 mm
degree of impact strength (IK) IK03
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Terminal marking indication Yes
Halogen free Yes
Antimicrobial treatment No
Mounting method Flush-mounted
Maximum Input cable diameter 9 mm
Entry membrane gland type Not applicable
Cable support Not applicable

Product environmental data

Product carbon footprint
Estimation of the Global Warming Potential (kgCO₂eq) emitted during the Manufacturing phase of the product life cycle according to sector methodology
0.289
Carbon footprint Manufacturing phase (A1-A3) (kg CO2 eq.)

Documentation

1 document
Technical Sheet
S000128273EN-00.pdf pdf (1.38 Mo)
3 documents
Product Environmental Profile (PEP)
LGRP-02022-V01.01-FR.pdf pdf (0.85 Mo)
Product Environmental Profile (PEP)
LGRP-02022-V01.01-EN.pdf pdf (0.89 Mo)
