Arteor Advance - 1 module RJ11 telephone socket matt white - 1M flush-mounted modular device - With dust cover - IP20 straight outlet

Arteor Advance Legrand

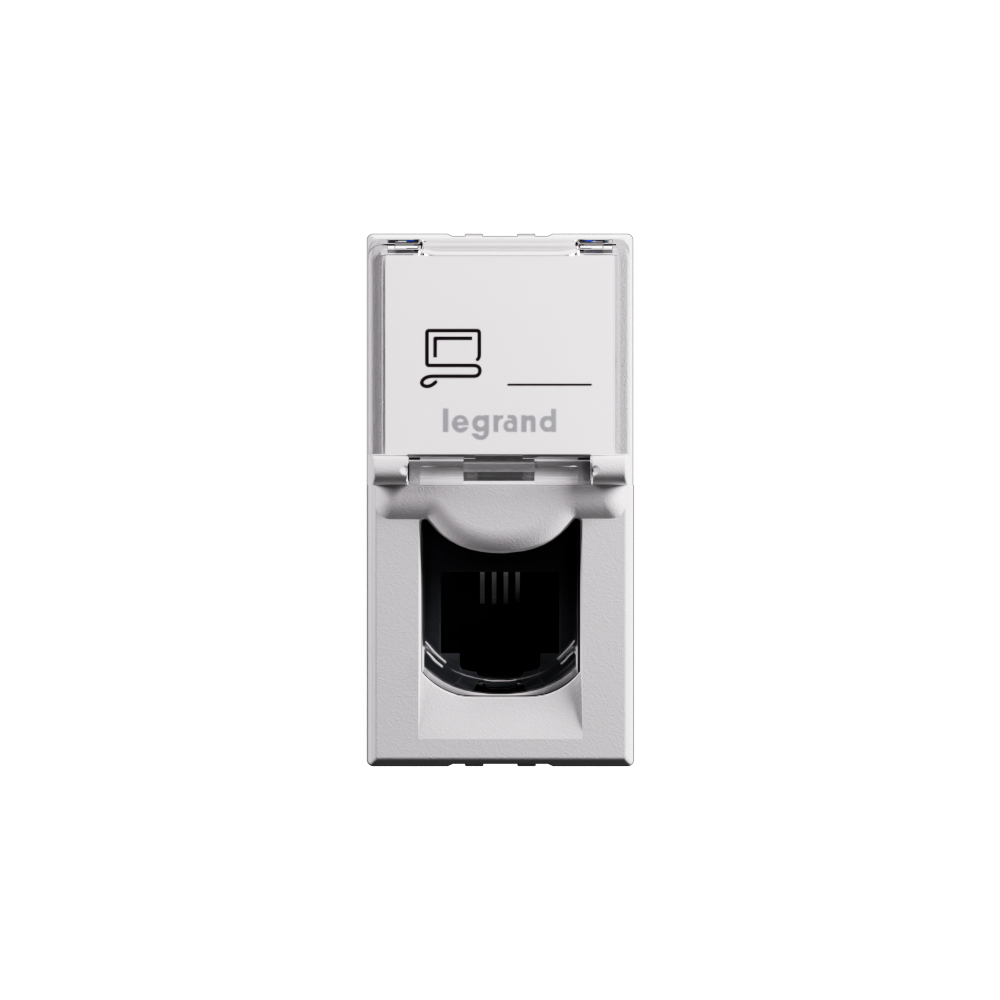

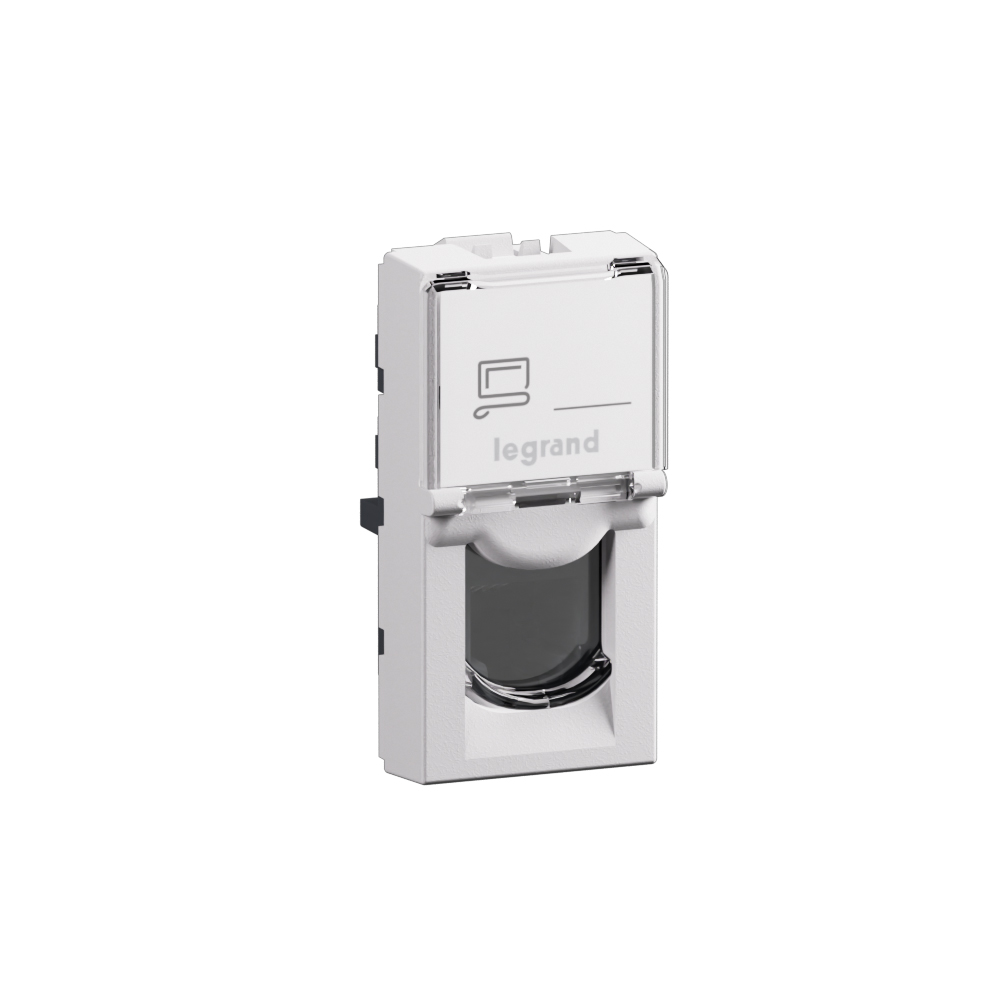

Arteor Advance - 1 module RJ11 telephone socket matt white - 1M flush-mounted modular device - With dust cover - IP20 straight outlet

REF. AC421MW EAN. 3414972762670
For telephone installation, this 1 module RJ11 telephone socket in matt white ensures superior voice transmission and reliable four-contact connectivity. Its modular jack with 1/4 turn terminal enables fast connection.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

For telephone installation, this 1 module RJ11 telephone socket in matt white ensures superior voice transmission and reliable four-contact connectivity. Its modular jack with 1/4 turn terminal enables fast connection.

Product characteristics
  • One-module RJ11 telephone socket for copper twisted-pair telephone installations, 1-module modular device for domestic switching systems
  • Matt white finish (RAL 9003) with smooth, powdery aspect for aesthetic integration with Arteor Advance devices
  • Four-contact RJ11 interface ensuring reliable voice transmission and compatibility with standard telephone wiring schemes
  • Telephone mechanism supplied with rocker plate, to be completed with dedicated support frames and front plates for flush-mounted installation
  • RJ11 and RJ12 straight-outlet sockets with IP20 protection and integrated dust cover for protected, clean terminations

The product's benefits

Installation
  • Equipped with modular Jack connector with 1/4 turn terminal for fast connection (possible looping)
Avantages
  • Powdery white with a smooth matte aspect

Technical characteristics

Surface mounting No
Flush-mounted installation Yes
Duct installation No
Floor box/subfloor mounted Yes
Type of fastening Engage (snap)
Assembly arrangement Modular device for domestic switching devices
With buses/couplings No
Colour White
RAL-number 9003
Shielded buses No
Shielded housing No
Separate earthing connection No
With label space Yes
Compatible with third-party covers No
Separate strain relief No
Outlet direction Straight
With dust cover Yes
With terminal resistor No
Degree of protection (IP) IP20
Mechanical coding No
Colour coding No
Device width 22.5 mm
Device height 45 mm
Number of modules (module system) 1
Terminal marking indication No
Halogen free No
Antimicrobial treatment No
Mounting method Flush-mounted
Cable support Not applicable

Documentation

1 document
Technical Sheet
S000130845EN-00.pdf pdf (0.85 Mo)
