Arteor Advance - 1 module push dimmer 150W LED matt black - Universal LED and halogen dimming - 110V to 240V AC IP20

Arteor Advance Legrand

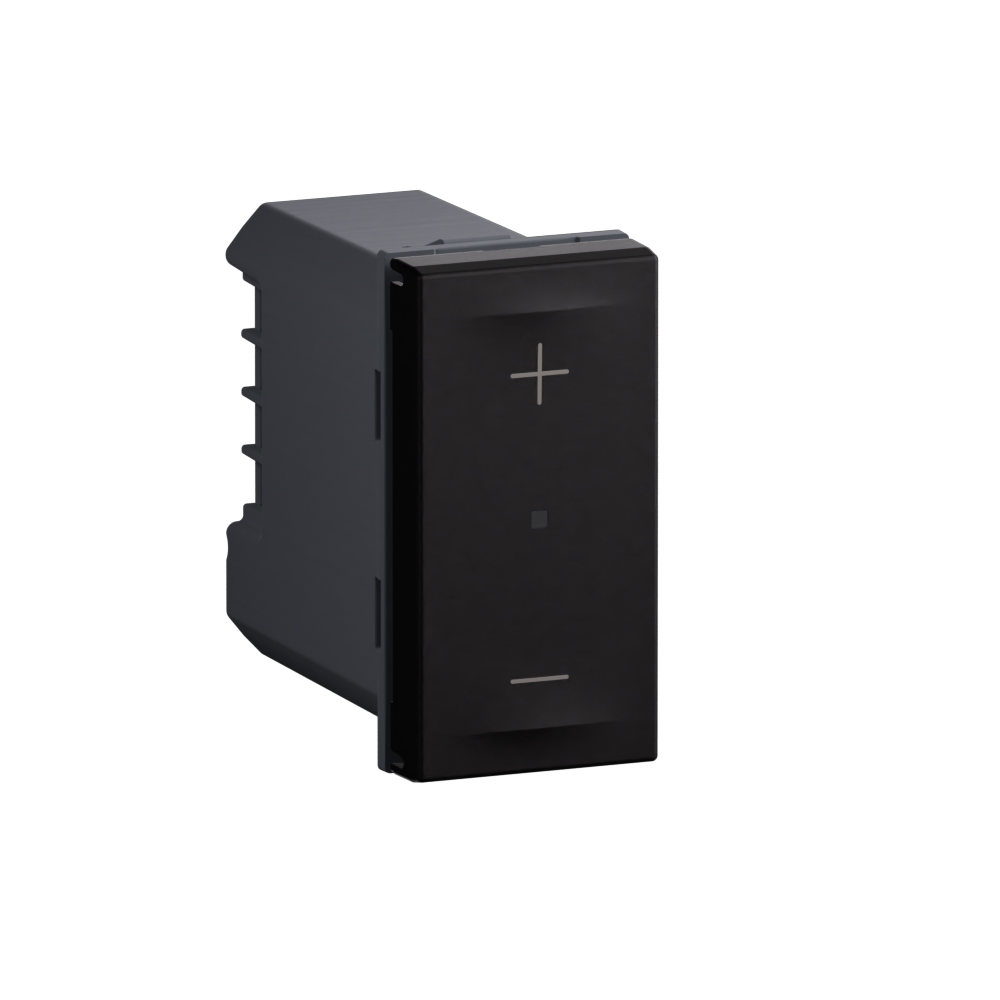

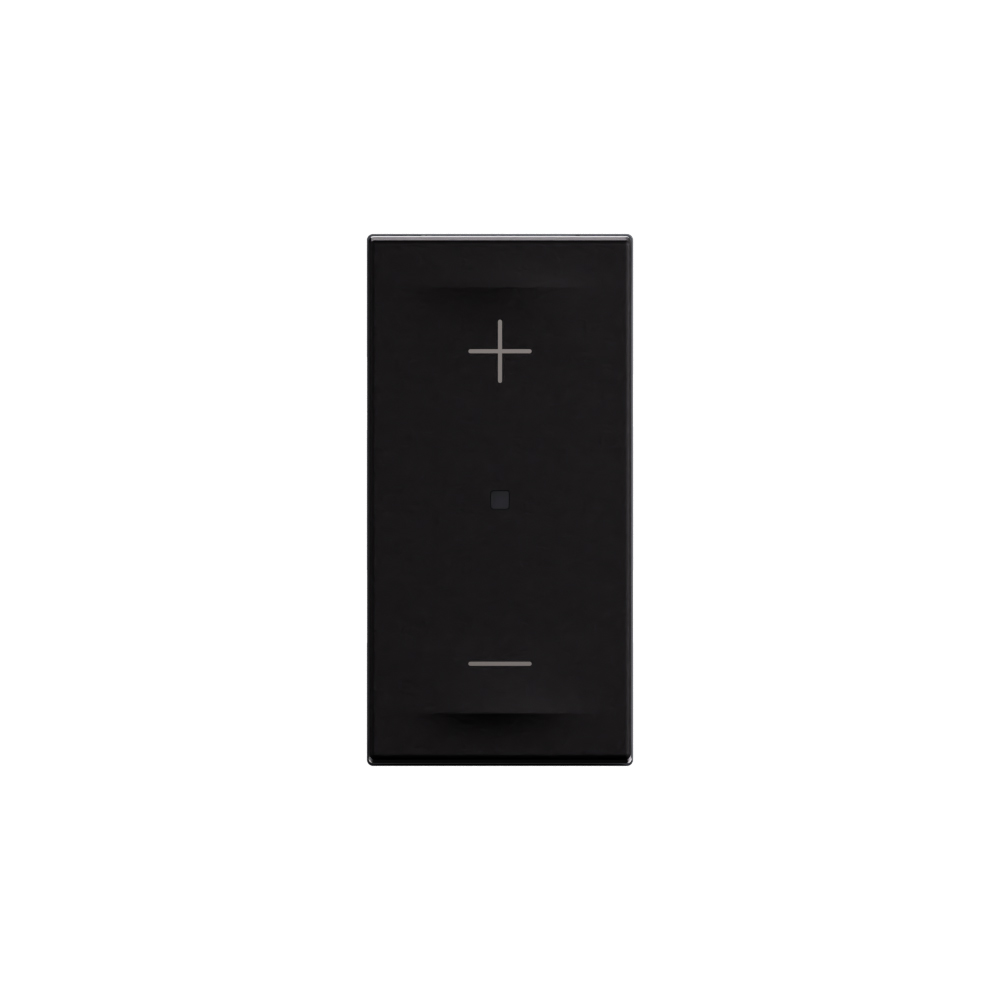

Arteor Advance - 1 module push dimmer 150W LED matt black - Universal LED and halogen dimming - 110V to 240V AC IP20

REF. AC24101MB EAN. 3414972752251
Allows adjustment of light output with universal 150W LED compatibility. The 1-module push dimmer with neutral supports leading/trailing-edge control and light value memory. Matt black thermoplastic finish.
Download product sheet
Finition :
Number of modules (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

Allows adjustment of light output with universal 150W LED compatibility. The 1-module push dimmer with neutral supports leading/trailing-edge control and light value memory. Matt black thermoplastic finish.

Product characteristics
  • One-module universal push dimmer for LED and conventional loads, 0–150W at 110–240V~ 50–60Hz
  • Matt black thermoplastic front with lacquered finish for a deep, low-glare aesthetic in technical interiors
  • Supports dimmable LED retrofit, halogen, and compact fluorescent lamps with leading- and trailing-edge control
  • Maximum LED switching and dimming power 150W with mandatory neutral connection and 0.7W self-consumption
  • Compatible with 40mm minimum box depth (built-in depth 36mm) for modular mounting with screw terminals
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • Upper and lower light adjustment
Avantages
  • Compatibility with the new generation of LED
  • Deep black with a smooth matte finish

Technical characteristics

Assembly arrangement Modular device for domestic switching devices
Method of operation Push button
Number of modules (module system) 1
App control via Bluetooth No
Dimming phase cut-on (leading edge) Yes
Dimming phase cut-off (trailing edge) Yes
Serial dimmer No
Type of load Universal and LED Retrofit
Substation input Yes
Light value memory Yes
Applicable with button Yes
Applicable with movement sensor No
Applicable with presence indicator No
Applicable with time switch/timer No
Applicable with transmission button No
Applicable with infrared button No
Min. brightness controllable Yes
Mounting method Module frame
Type of fastening Mounting with screw
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Lacquered
Surface finishing Matt
Colour Black
Transparent No
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK02
Nominal voltage (Min-Max) 110-240 V
Frequency (Min-Max) 50-60 Hz
Control voltage (Min-Max) 110-240 V
Nominal power resistive load (Min-Max) 0-150 W
Nominal power inductive load (Min-Max) 0-150 VA
Nominal power capacitive load (Min-Max) 0-150 VA
Max. switching power LED 150 W
Power consumption 0.7 W
Connection type Screwed terminal
Cable section (Min-Max) 1.5-2.5 mm²
Device width 22.5 mm
Device height 45 mm
Device depth 42 mm
Min. depth of built-in installation box 40 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Built-in depth 36 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) 0-45 °C
Voltage type AC
Mandatory neutral Yes
Terminal marking indication Yes
Stress test conformity (1000V) No
Antimicrobial treatment No
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable nature for connection Flexible or rigid
