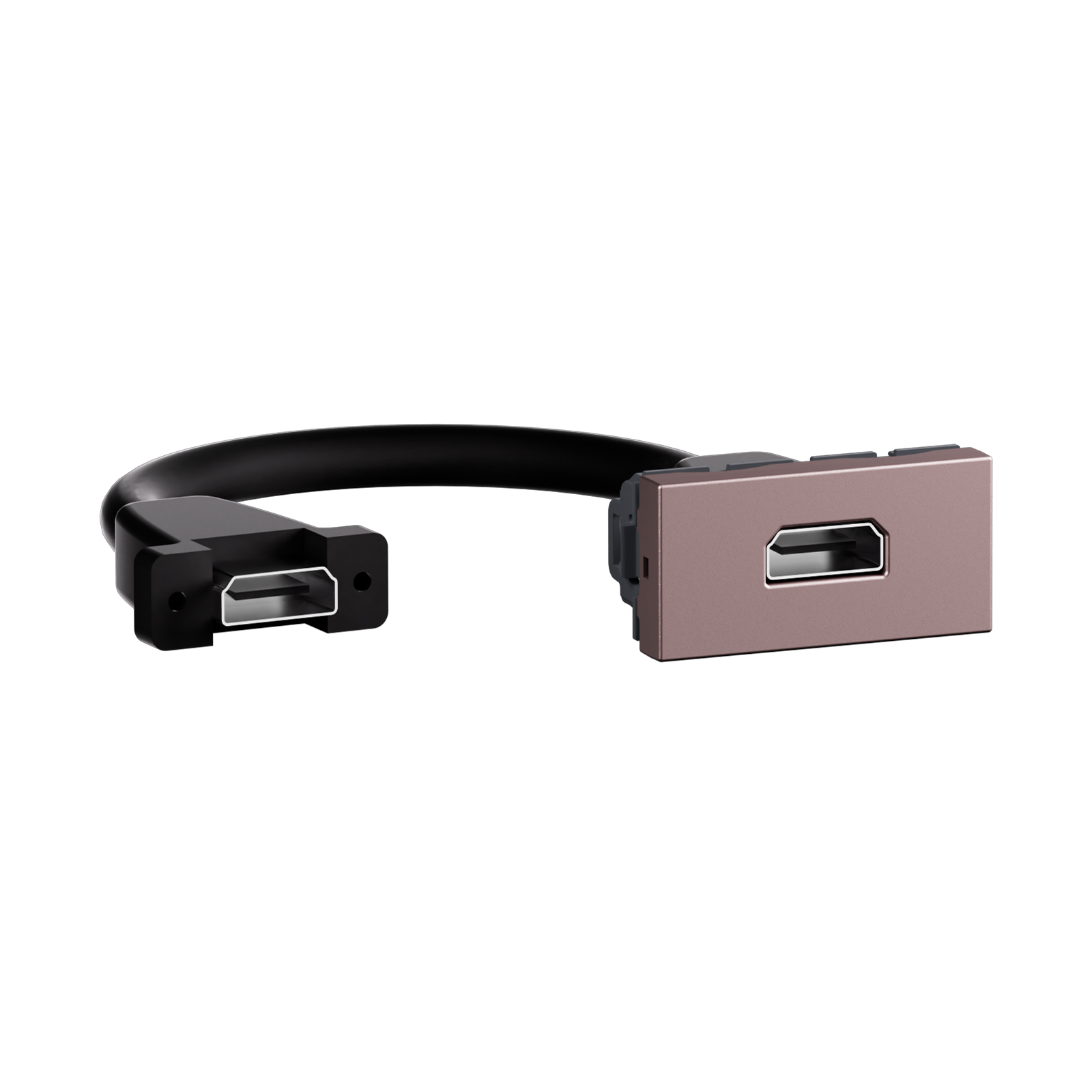

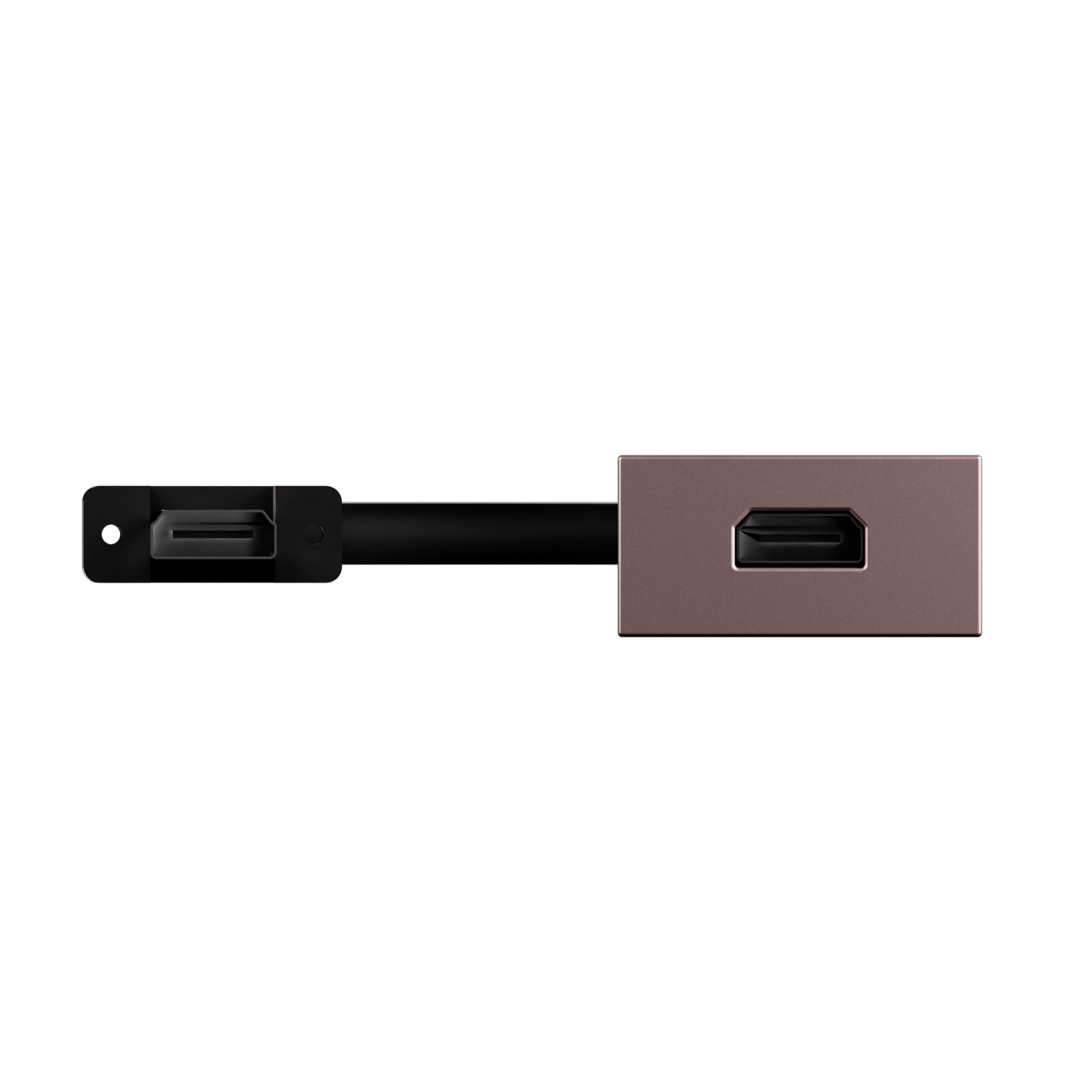

Arteor Advance - 1 module pre-terminated hdmi socket rose - 1M hdmi 2.0 type-A female - Preterminated 15cm cord - Snap-in mounting

Arteor Advance Legrand

Arteor Advance - 1 module pre-terminated hdmi socket rose - 1M hdmi 2.0 type-A female - Preterminated 15cm cord - Snap-in mounting

REF. AC4411RS EAN. 3414972928021
This preterminated hdmi socket transmits high-definition digital audio/video streams between source and receiver with a compact 1-module design. Its prewired 15cm cord localizes wear, and clip-in mounting simplifies integration.
Download product sheet
Finition :
Number of modules (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This preterminated hdmi socket transmits high-definition digital audio/video streams between source and receiver with a compact 1-module design. Its prewired 15cm cord localizes wear, and clip-in mounting simplifies integration.

Product characteristics
  • One-module hdmi 2.0 type-A preterminated socket for high-definition digital audio/video transmission between source and display devices
  • Rose finish front plate for aesthetic integration in advanced residential and commercial environments
  • Supplied with rocker plates, to be equipped with module support frames and plates for secure snap-in mounting
  • 1-module thermoplastic insert, matt lacquered, IP40, IK04, dimensions 22.5x45mm, built-in depth 28.4mm, operating temperature -5° C to 35° C
  • Equipped with preterminated hdmi cord, length 15cm, localizing wear on the cord rather than on the equipment hdmi connector
Recommendation / Restriction
  • To connect with a hdmi cord. Minimum flush mounting box depth 50mm.

The product's benefits

Installation
  • Modular, fixed with clips directly
Usage
  • Fits perfectly in your environment. Designed in harmony with the large Arteor advance range
Avantages
  • Ease of maintenance: wear and tear is localized on the preterminated cord and not on the equipment hdmi cord.
  • Pink finish evoking subtle blush effect

Technical characteristics

Assembly arrangement Basic element with central cover plate
Utilization HDMI
Support ring No
With dust cover No
With hinged lid No
Outlet direction Straight
Contact type Female
Imprintable label Without indication field
With imprint Yes
Mounting method Module frame
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Other
Transparent No
Type of fastening Engage (snap)
Number of modules (module system) 1
With buses/couplings Yes
Suitable for number of connectors 1
With strain relief No
Shielded buses No
Shielded housing No
Luster terminal No
With lighting No
Suitable for degree of protection (IP) IP40
degree of impact strength (IK) IK04
Device width 22.5 mm
Device height 45 mm
Min. depth of built-in installation box 40 mm
Built-in depth 28.4 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
