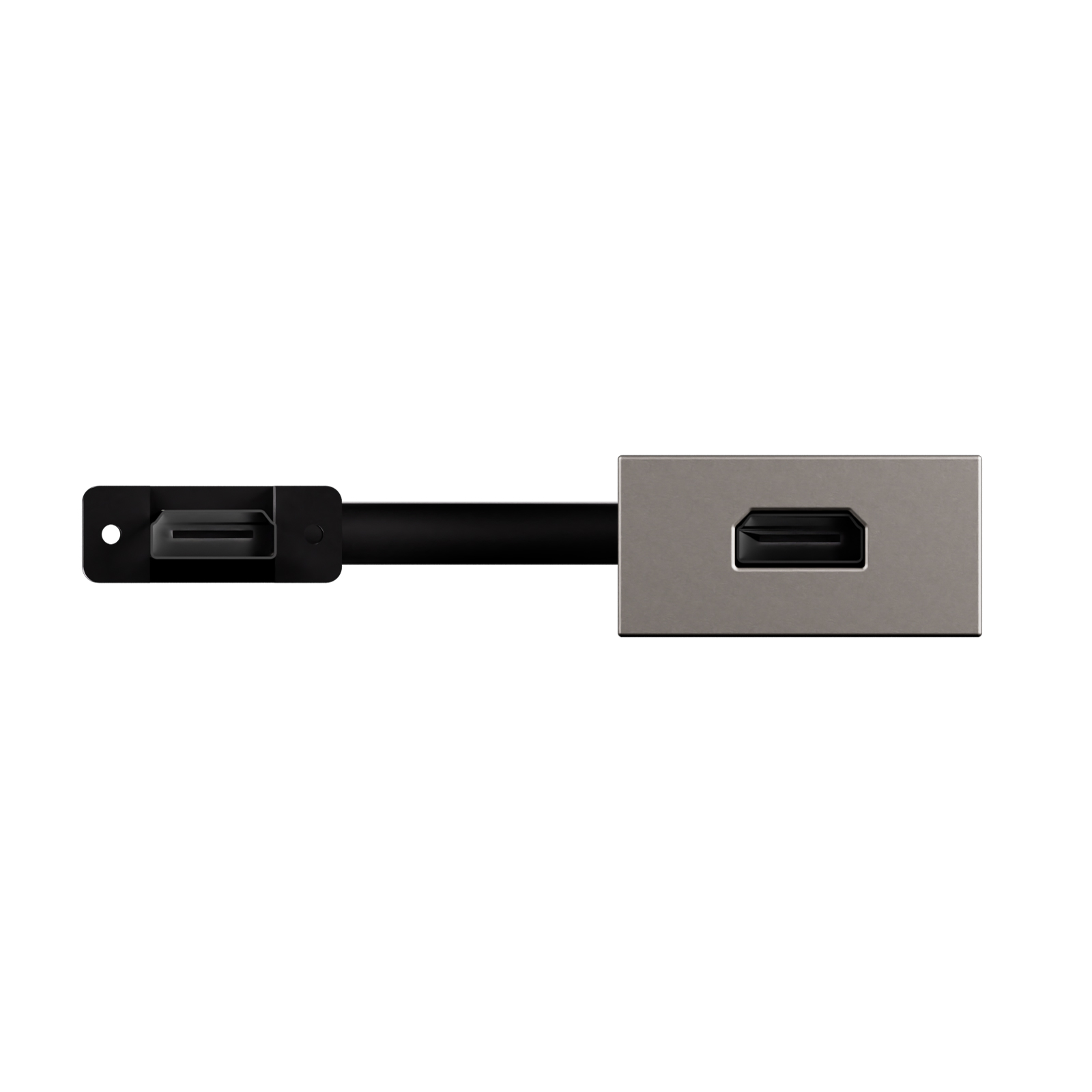

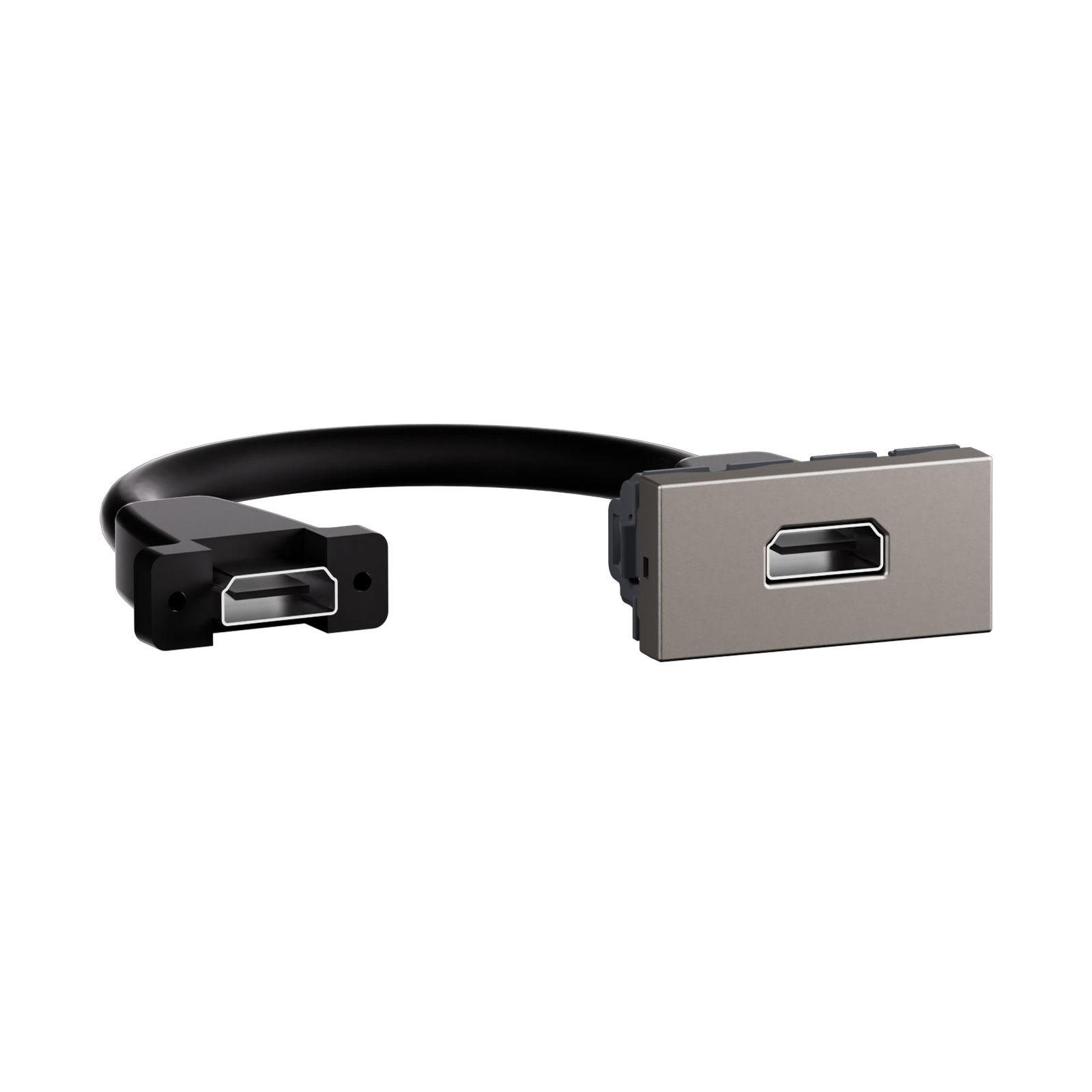

Arteor Advance - 1 module pre-terminated hdmi socket matt titanium - Hdmi 2.0 type-A female - Matt titanium thermoplastic, IP40 IK04

Arteor Advance Legrand

Arteor Advance - 1 module pre-terminated hdmi socket matt titanium - Hdmi 2.0 type-A female - Matt titanium thermoplastic, IP40 IK04

REF. AC4411MT EAN. 3414972766289
This preterminated hdmi socket transmits high-definition digital audio/video streams. Its 1-module hdmi 2.0 type-A interface and 15cm preterminated cord simplify installation. The matt titanium finish integrates seamlessly.
Download product sheet
Finition :
Number of modules (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This preterminated hdmi socket transmits high-definition digital audio/video streams. Its 1-module hdmi 2.0 type-A interface and 15cm preterminated cord simplify installation. The matt titanium finish integrates seamlessly.

Product characteristics
  • One-module hdmi 2.0 type-A preterminated socket for high-definition digital audio/video transmission between source and display devices
  • Matt titanium thermoplastic front with lacquered surface finish, matching the Arteor Advance range for a discreet, technical aesthetic
  • Supplied with rocker plates; to be completed with module support frames and plates, snap-in fastening for quick modular installation
  • 1-module insert/cover for communication technology, female hdmi outlet, straight cable exit, suitable for 1 connector, IP40, IK04, dimensions 22.5x45mm, built-in depth 28.4mm
  • Equipped with preterminated hdmi cord, length 15cm, concentrating wear on the replaceable cord rather than on the equipment hdmi cable
Recommendation / Restriction
  • To connect with a hdmi cord. Minimum flush mounting box depth 50mm.

The product's benefits

Installation
  • Modular, fixed with clips directly
Usage
  • Fits perfectly in your environment. Designed in harmony with the large Arteor advance range
Avantages
  • Ease of maintenance: wear and tear is localized on the preterminated cord and not on the equipment hdmi cord.
  • Titanium with a smooth matte finish

Technical characteristics

Assembly arrangement Basic element with central cover plate
Utilization HDMI
Support ring No
With dust cover No
With hinged lid No
Outlet direction Straight
Contact type Female
Imprintable label Without indication field
With imprint Yes
Mounting method Module frame
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Titanium
Transparent No
Type of fastening Engage (snap)
Number of modules (module system) 1
With buses/couplings Yes
Suitable for number of connectors 1
With strain relief No
Shielded buses No
Shielded housing No
Luster terminal No
With lighting No
Suitable for degree of protection (IP) IP40
degree of impact strength (IK) IK04
Device width 22.5 mm
Device height 45 mm
Min. depth of built-in installation box 40 mm
Built-in depth 28.4 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
