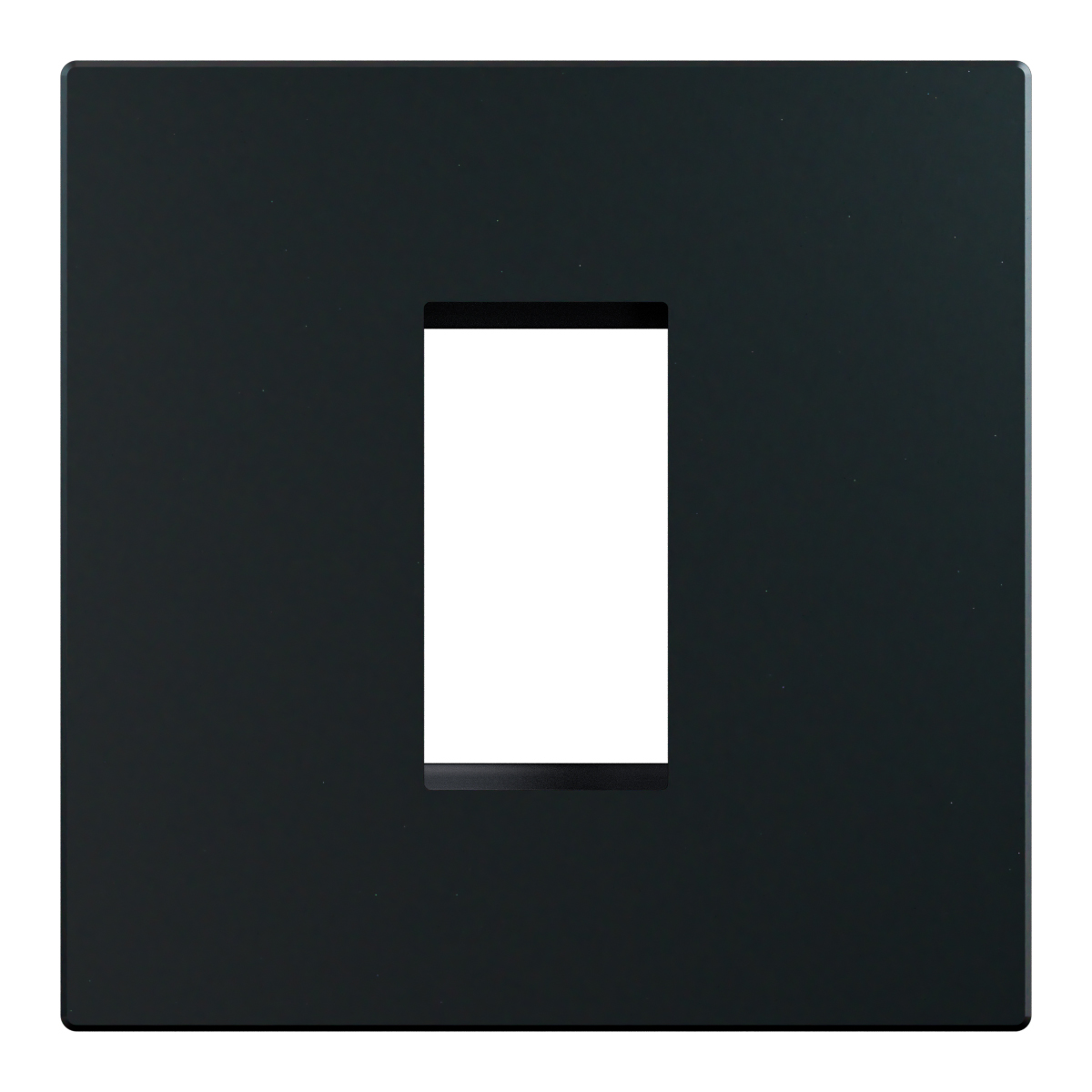

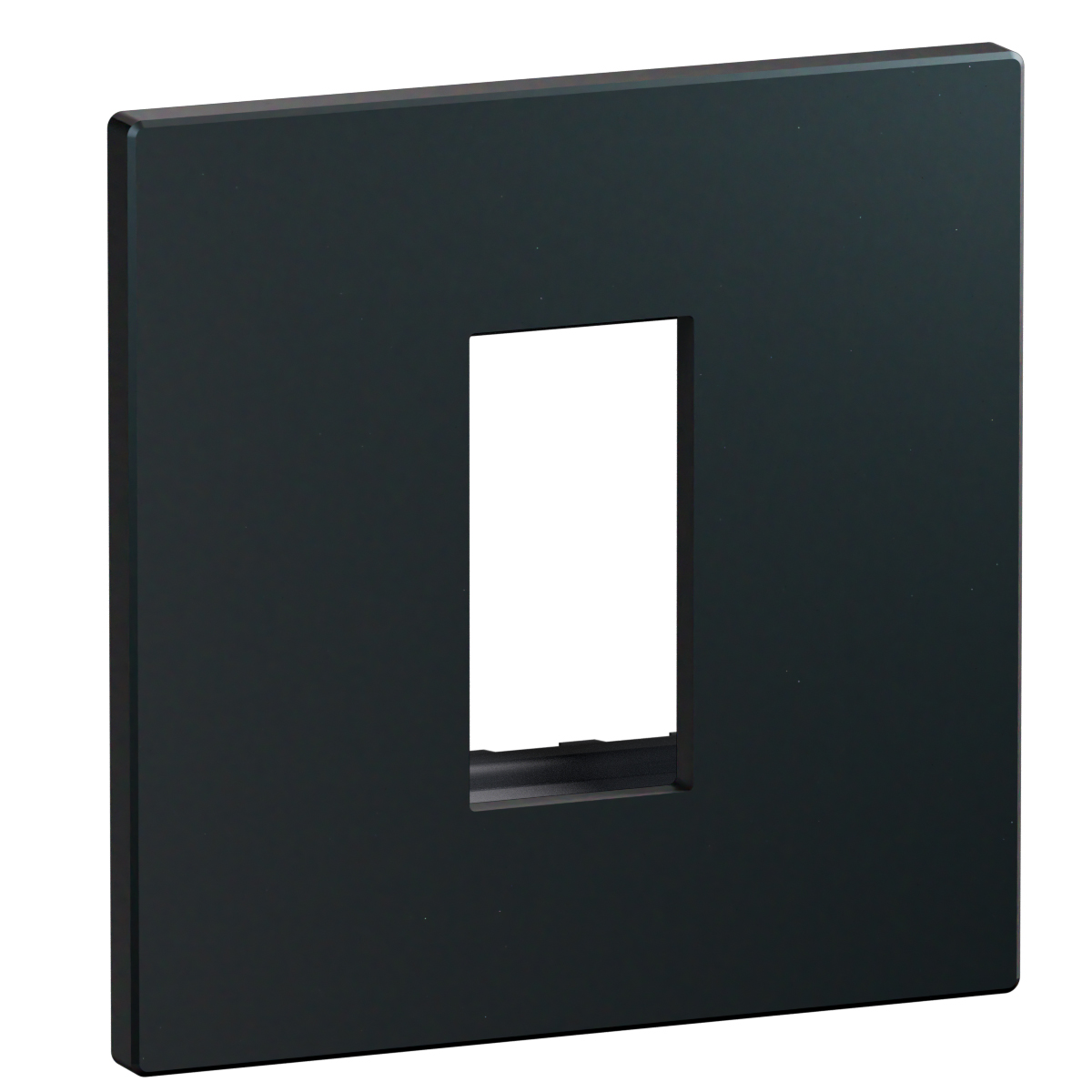

Arteor Advance - 1 module plate+frame midnight blue - 1-gang square metal plate and frame - Matt lacquered aluminum finish

Arteor Advance Legrand

Arteor Advance - 1 module plate+frame midnight blue - 1-gang square metal plate and frame - Matt lacquered aluminum finish

REF. AC1200NB EAN. 3414972737401
This module plate+frame in midnight blue combines plain aluminum with matt lacquered finish for robust flush-mounted installations. Its square design enables modular flexibility, while the integrated adjuster ensures precise wall alignment
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This module plate+frame in midnight blue combines plain aluminum with matt lacquered finish for robust flush-mounted installations. Its square design enables modular flexibility, while the integrated adjuster ensures precise wall alignment

Product characteristics
  • Two-gang cover frame configuration enabling modular installation of two domestic switching devices within a compact 1-module footprint
  • Midnight blue lacquered matte finish providing a dark blue pearlescent appearance for refined, contemporary interiors
  • Plates are made of real plain aluminum, halogen free, with metal construction for enhanced robustness and a cool metallic touch
  • Square 90x90mm form factor with 8.5mm depth, ensuring clean geometric aesthetics and compatibility with Arteor Advance modular layouts
  • Flush-mounted, snap-on frame with integrated adjuster for precise wall alignment; recommended for indoor use within -5 to 35° C operating temperature range
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Dark blue with pearlescent gleam and cool sensation of metal
  • Refined design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 1
Number of modules vertical (module system) 1
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Blue
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
