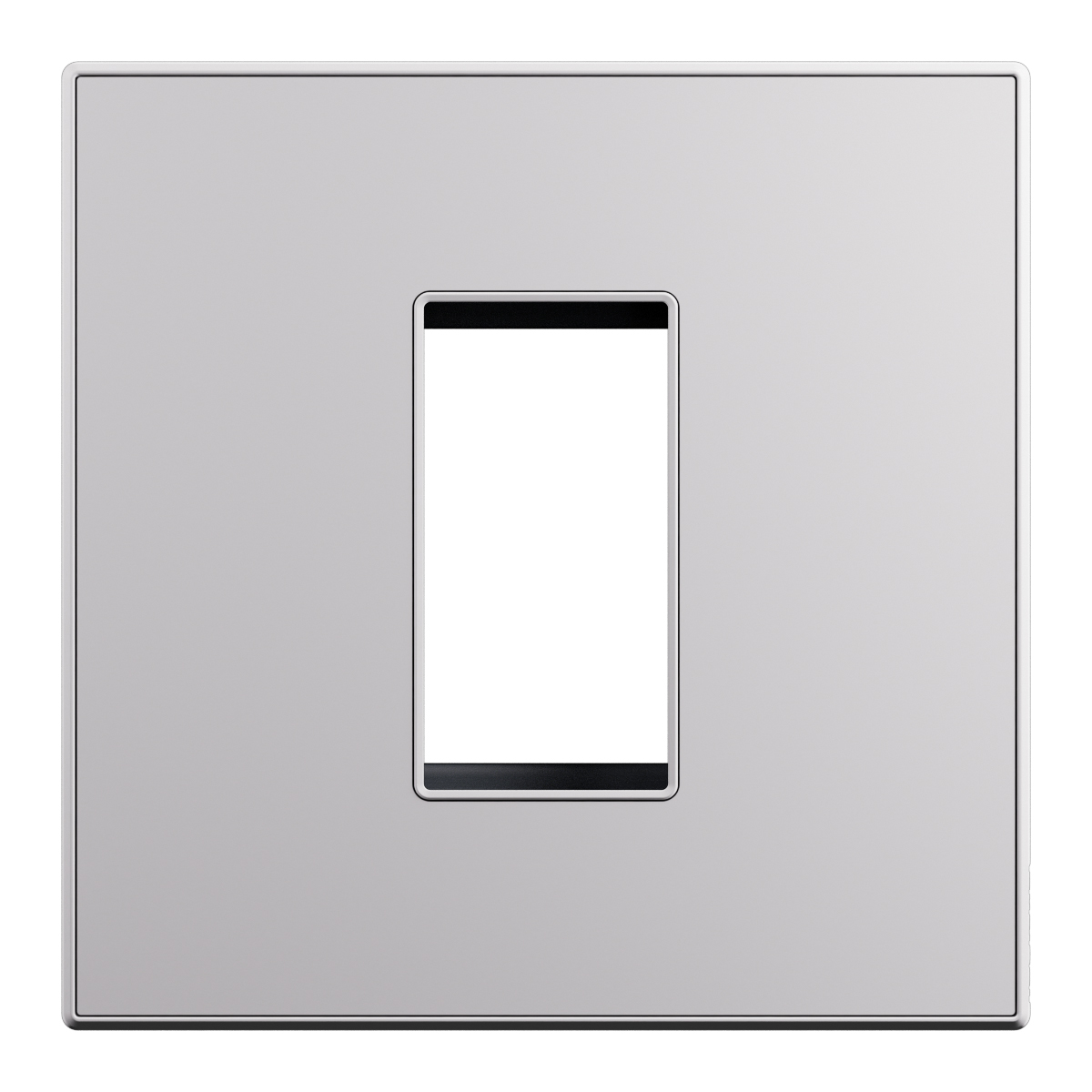

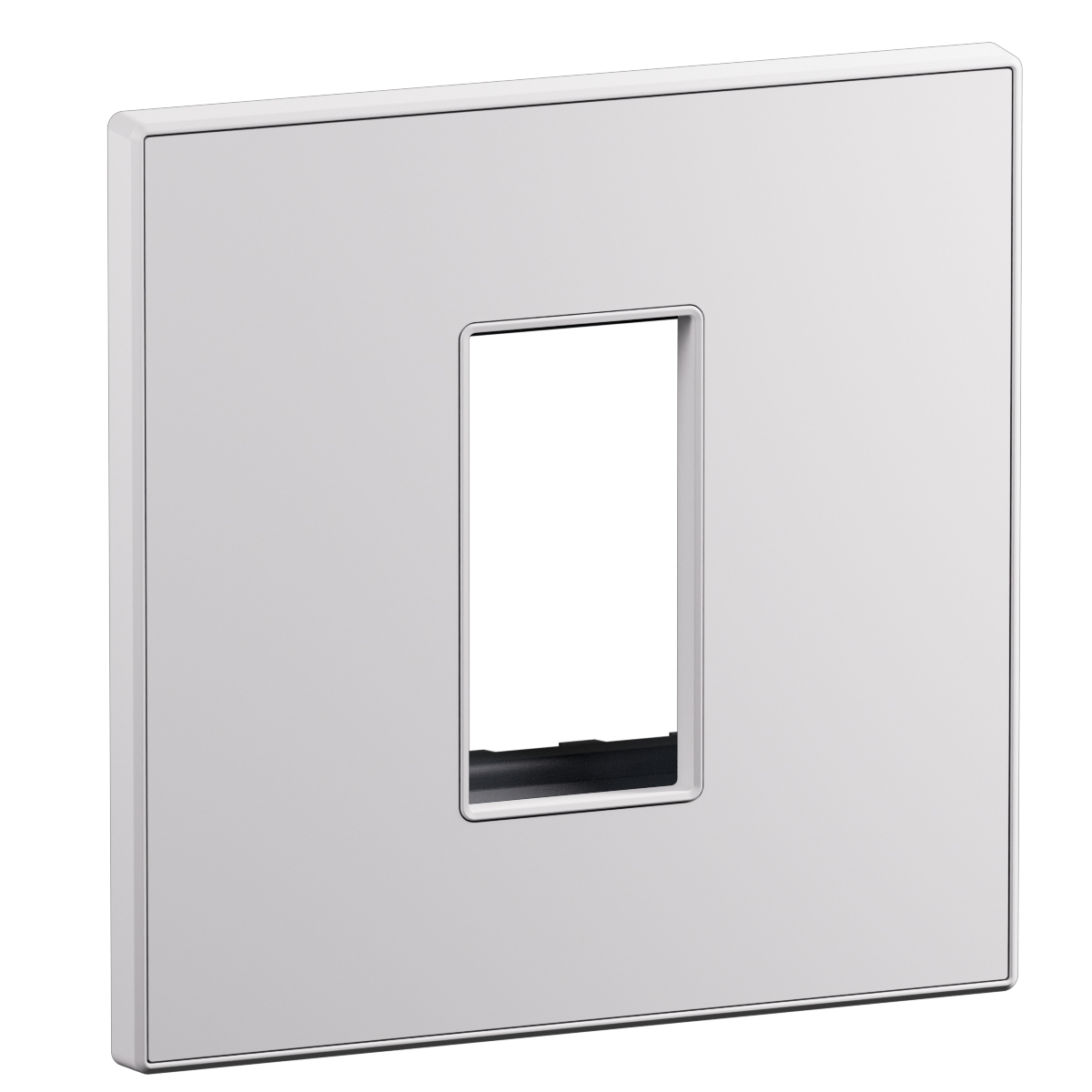

Arteor Advance - 1 module plate+frame frosted white - 1-module square design - Crystal polycarbonate matt finish

Arteor Advance Legrand

Arteor Advance - 1 module plate+frame frosted white - 1-module square design - Crystal polycarbonate matt finish

REF. AC1200FW EAN. 3414972737289
This 1 module plate+frame in frosted white features crystal polycarbonate construction for a velvet touch and subtle translucence. Its square design ensures modularity in compact installations. An integrated adjuster guarantees precise
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 1 module plate+frame in frosted white features crystal polycarbonate construction for a velvet touch and subtle translucence. Its square design ensures modularity in compact installations. An integrated adjuster guarantees precise

Product characteristics
  • Single-module plate and frame for domestic switching devices, providing a compact 1M interface in both horizontal and vertical configurations
  • Frosted white matte finish for reduced glare and refined visual integration with Arteor Advance installations
  • Plate made of crystal polycarbonate (thermoplastic, halogen free) for high mechanical strength, white translucence, and velvet-touch surface
  • Square 90-Drummm x 90-Drummm geometry enabling modularity and flexibility in a compact wall-mounted configuration
  • Flush-mounted, snap-engage fastening with integrated adjuster for precise wall alignment; recommended for indoor use at -5° C to 35° C operating temperature
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Crystal PC, set in a cradle, providing both velvet touch and white translucence
  • Refined design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 1
Number of modules vertical (module system) 1
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour White
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
