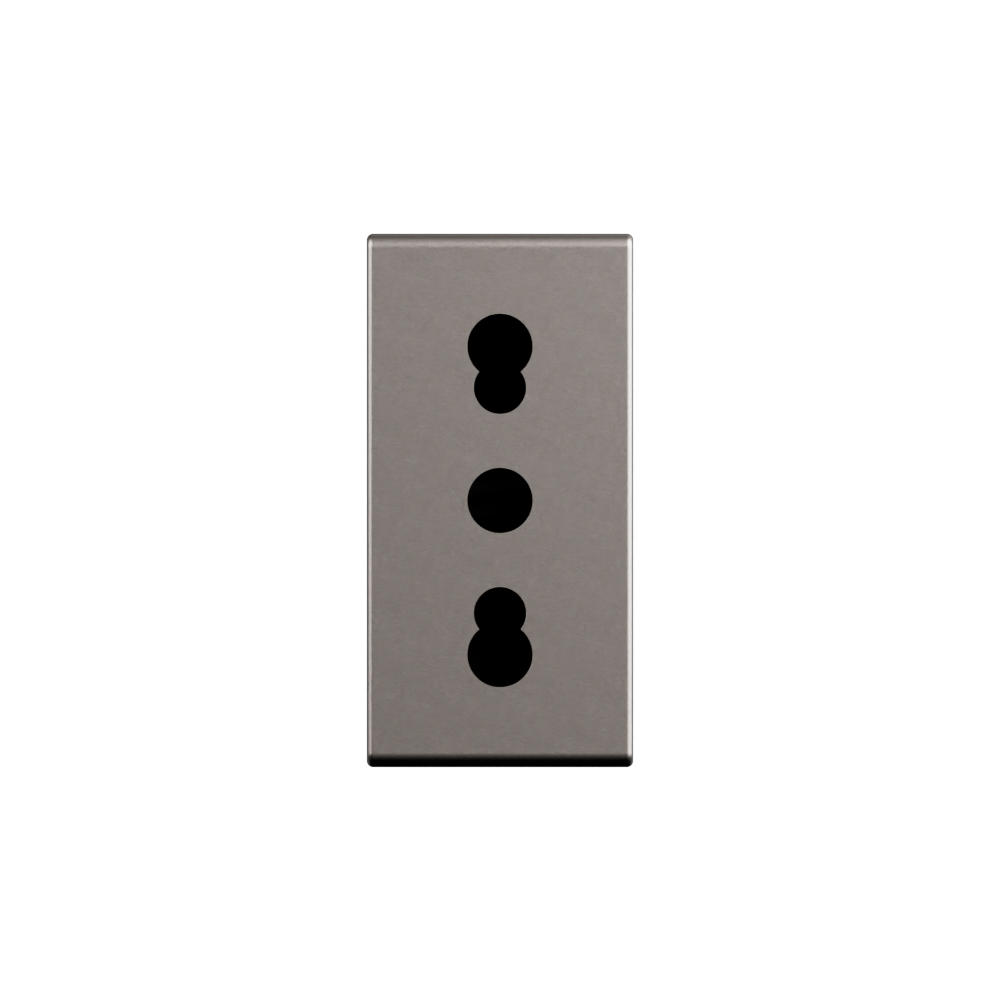

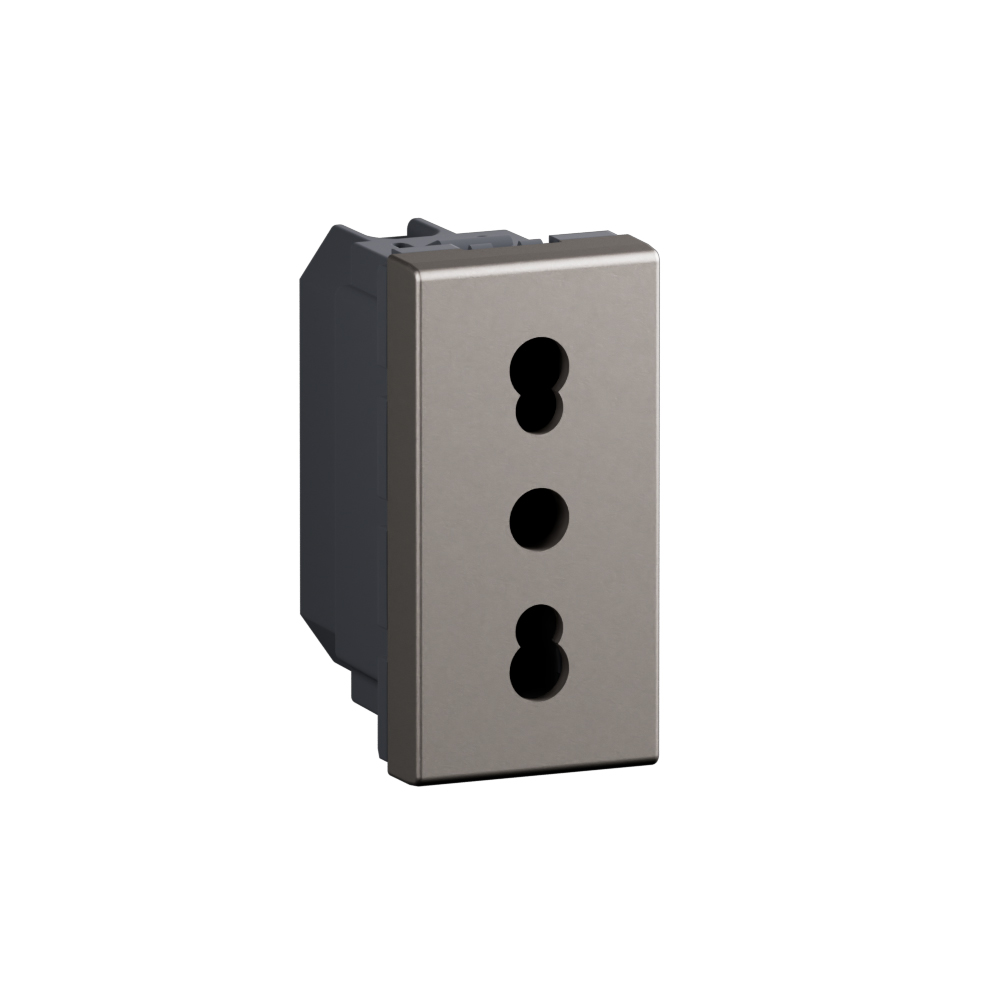

Arteor Advance - 1 module Italian 10/16A 2 poles + earth shuttered socket matt titanium - 1M Italian type P11 2P+E - Safety shutters

Arteor Advance Legrand

Arteor Advance - 1 module Italian 10/16A 2 poles + earth shuttered socket matt titanium - 1M Italian type P11 2P+E - Safety shutters

REF. AC3169MT EAN. 3414972758956
Allows connecting an electrical appliance through a 1-module Italian 10/16A 2P+E shuttered socket in matt titanium. It offers earth connection and marked screw terminals for secure wiring in flexible indoor installations.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

Allows connecting an electrical appliance through a 1-module Italian 10/16A 2P+E shuttered socket in matt titanium. It offers earth connection and marked screw terminals for secure wiring in flexible indoor installations.

Product characteristics
  • One-module Italian type P11 socket outlet, 10/16A 2P+E, 230V AC, with safety shutters for protected appliance connection
  • Matt titanium thermoplastic front with lacquered surface finishing, matching Arteor Advance aesthetics and reducing visible fingerprints
  • Integrated earth (protective) contact with enhanced contact protection, ensuring safe grounding of connected equipment
  • Screw-type, clearly marked terminals for flexible or rigid conductors up to 4mm², enabling fast, secure, and error-free wiring
  • 1-module snap-in modular element for mounting in module frames, with loop-through function to simplify circuit distribution in IP20 indoor installations
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • Fitted with safety shutters to maximise protection
Avantages
  • Titanium with a smooth matte finish
  • The square format enables modularity

Technical characteristics

Model Italian type P11
Concurrently switching neutral conductor No
Protective contact Round
Number of active contacts (round) 2
Number of active contacts (flat) 0
Number of active contacts (square) 0
Mounting direction Horizontal and vertical
Assembly arrangement Basic element with central cover plate
With complemantary luminous signal No
Number of ports USB-A 0
Number of empty module positions 0
Number of socket outlets 1
Socket outlets phase-separated No
Number of modules (module system) 1
Number of socket outlets switchable 0
Number of phases 1
Imprint/indication Other
Connection type Screwed terminal
With hinged lid No
With enhanced contact protection Yes
Label space/information surface No
Colour Titanium
Metallic colour No
Transparent No
Lockable No
Eject-mechanism No
Insulated mounting No
With function lighting No
Overvoltage protection No
Fault current protection No
With miniature fuse No
Special power supply None
Mounting method Module frame
Type of fastening Snap mounting (engagement)
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Lacquered
Surface finishing Matt
Antimicrobial treatment No
With loop through function Yes
With on/off switch No
Colour of switch operator Titanium
Rotated central insert No
Nominal current 16 A
Nominal voltage 230 V
Frequency (Min-Max) 50-60 Hz
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 22.5 mm
Device height 45 mm
Device depth 36.3 mm
Compatible with Apple HomeKit No
Compatible with Amazon Alexa No
Compatible with Google Assistant No
IFTTT support available No
With Wi-Fi signal repeater No
With built-in bluetooth speaker No
For heavy conditions according to VDE No
Built-in depth 27.8 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Power Delivery No
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 4-4 mm²
Cable support Other
Connected object No
