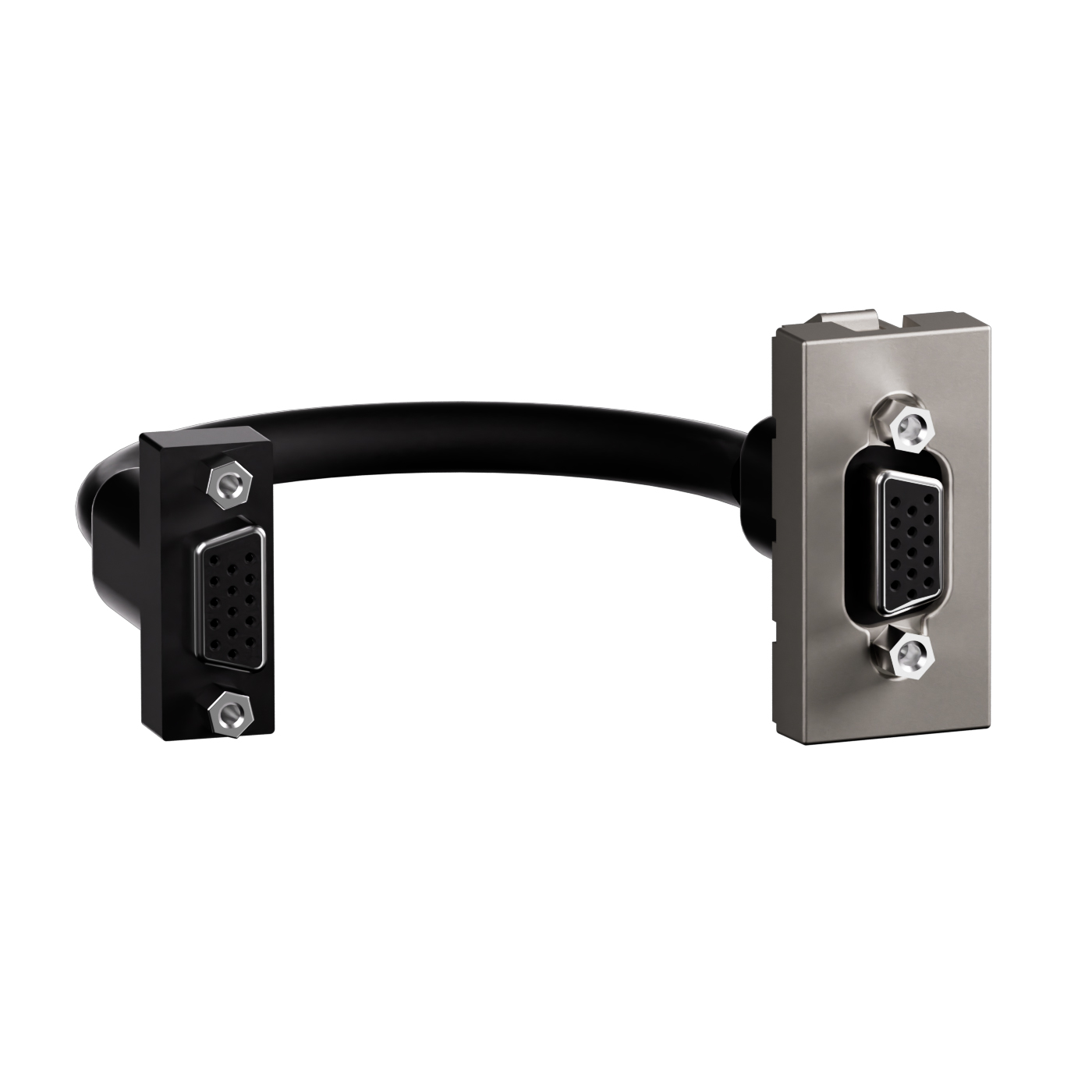

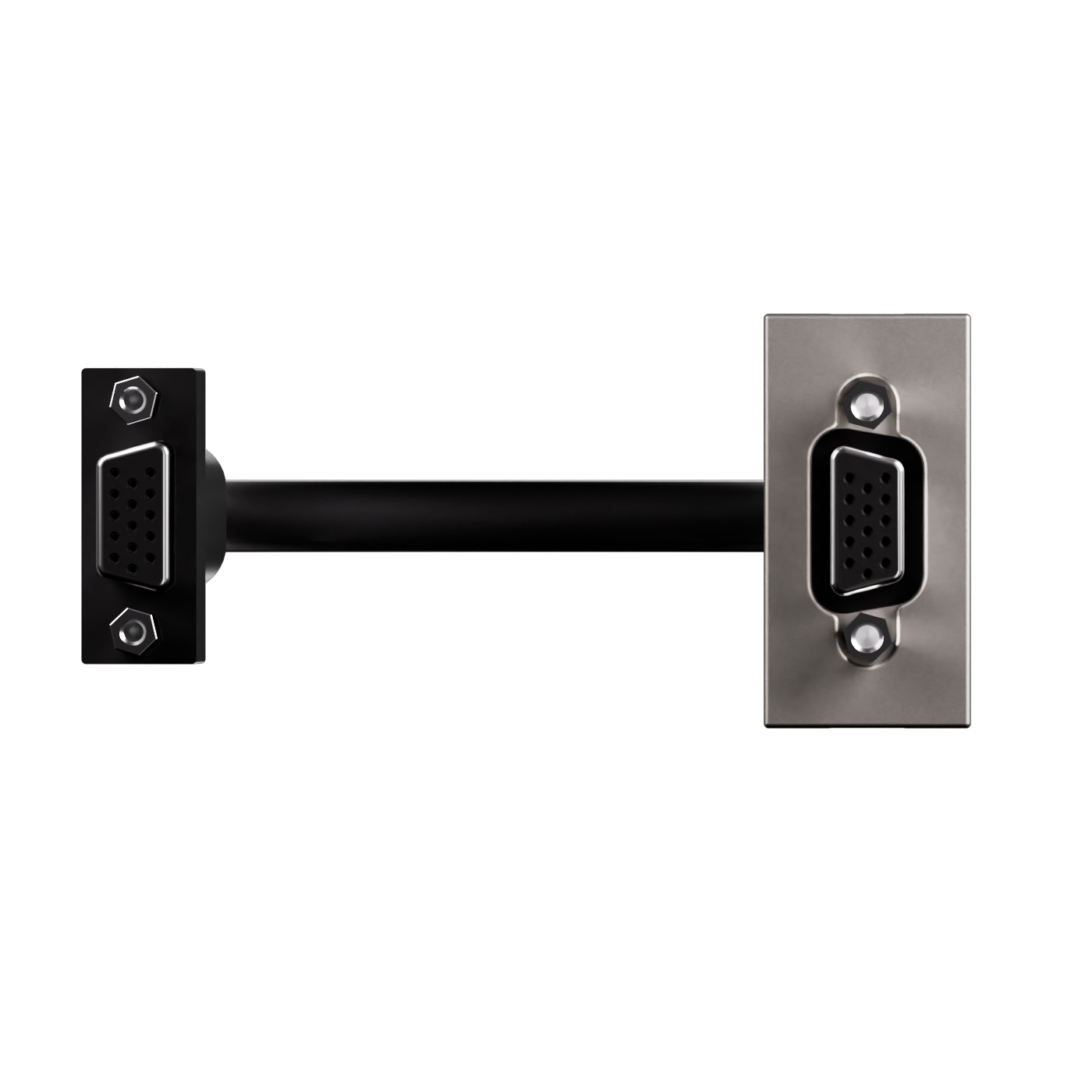

Arteor Advance - 1 module HD15 preterminated socket matt titanium - VGA video connector - 1M snap-in module frame mounting IP40 IK04

Arteor Advance Legrand

Arteor Advance - 1 module HD15 preterminated socket matt titanium - VGA video connector - 1M snap-in module frame mounting IP40 IK04

REF. AC4421MT EAN. 3414972766708
This HD15 pre-terminated socket provides reliable VGA video links for peripheral devices. The 1-module matt titanium design with snap-in mounting integrates into Arteor Advance frames. Its 15cm pre-terminated cord simplifies installation.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This HD15 pre-terminated socket provides reliable VGA video links for peripheral devices. The 1-module matt titanium design with snap-in mounting integrates into Arteor Advance frames. Its 15cm pre-terminated cord simplifies installation.

Product characteristics
  • 1-module HD15/VGA preterminated socket for D-Sub 15-pole video signal connections in communication installations
  • Matt titanium thermoplastic front with lacquered surface for a discreet, high-end finish matching Arteor Advance aesthetics
  • Supplied with rocker plates, to be completed with module frame and plates for snap-in mounting in modular support systems
  • Compact 1-module insert (22.5x45mm, built-in depth 24mm) with straight female outlet, suitable for 1 connector in IP40, IK04 environments
  • Equipped with preterminated cord, length 15cm, localizing wear on the cord rather than on the equipment HD15 connector for easier maintenance
Recommendation / Restriction
  • To connect with a HD15 cord. Minimum flush mounting box depth 50mm.

The product's benefits

Installation
  • Modular, fixed with clips directly
Usage
  • Fits perfectly in your environment. Designed in harmony with the large Arteor advance range
Avantages
  • Ease of maintenance: wear and tear is localized on the preterminated cord and not on the equipment HD15 cord.
  • Titanium with a smooth matt aspect

Technical characteristics

Assembly arrangement Basic element with central cover plate
Utilization D-Sub 15-pole
Support ring No
With dust cover No
With hinged lid No
Outlet direction Straight
Contact type Female
Imprintable label Without indication field
With imprint Yes
Mounting method Module frame
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Titanium
Transparent No
Type of fastening Engage (snap)
Number of modules (module system) 1
With buses/couplings Yes
Suitable for number of connectors 1
With strain relief No
Shielded buses No
Shielded housing No
Luster terminal No
With lighting No
Suitable for degree of protection (IP) IP40
degree of impact strength (IK) IK04
Device width 22.5 mm
Device height 45 mm
Built-in depth 24 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
