Arteor Advance - 1 module french/schuko plate matt black - 1-module square cover frame - Matt deep black thermoplastic IP20

Arteor Advance Legrand

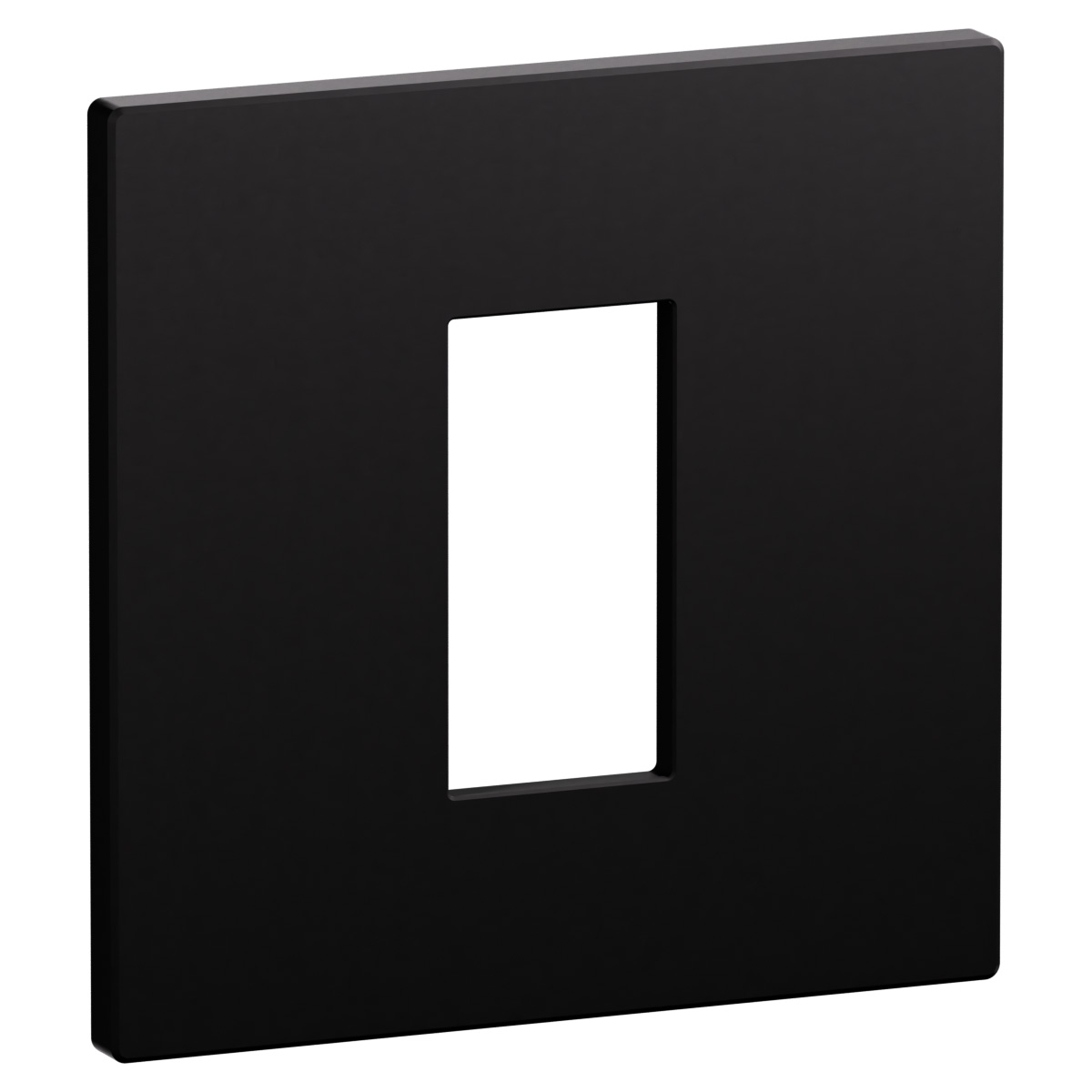

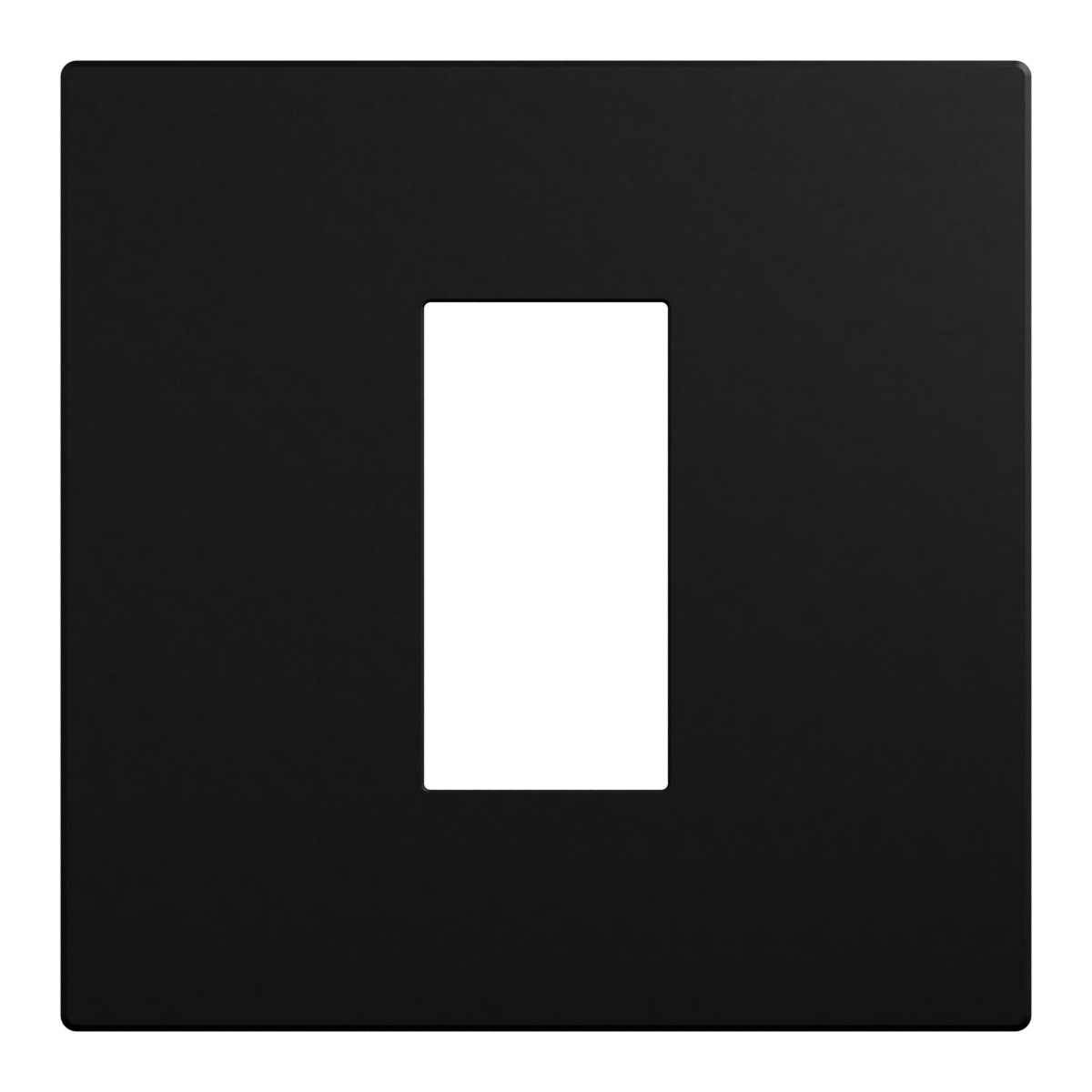

Arteor Advance - 1 module french/schuko plate matt black - 1-module square cover frame - Matt deep black thermoplastic IP20

REF. AC1120MB EAN. 3414973069419
This 1 module French/Schuko plate in matt black thermoplastic offers IP20 protection and flush-mounted installation. Its deep black, smooth matt finish and minimalist square format ensure long-term aesthetics.
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 1 module French/Schuko plate in matt black thermoplastic offers IP20 protection and flush-mounted installation. Its deep black, smooth matt finish and minimalist square format ensure long-term aesthetics.

Product characteristics
  • Single-module French/Schuko cover frame for domestic switching devices, optimized for 1 horizontal unit in Arteor Advance installations
  • Deep matt black finish providing a minimalist aesthetic and long-term visual stability against daily wear and indoor light exposure
  • High-quality thermoplastic polycarbonate plate, halogen free and impact-resistant, suitable for professional residential and commercial applications
  • Square 90x90mm front format with 22.5mm built-in width and 45mm built-in height, enabling modularity and flexible configuration
  • Flush-mounted IP20 plate with snap-on fastening, compatible with wall and subfloor duct boxes and integrating label space for circuit identification
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • The plate contains an adjuster that ensures perfect installation on the wall
Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Deep black with a smooth matte aspect
  • Minimalist design
  • Square format allows modularity and flexible configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 1
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation No
Label space/information surface Yes
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Black
Transparent No
With hinged lid No
Degree of protection (IP) IP20
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8.5 mm
Built-in width 22.5 mm
Built-in height 45 mm
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04877EN-00.pdf pdf (0.53 Mo)
