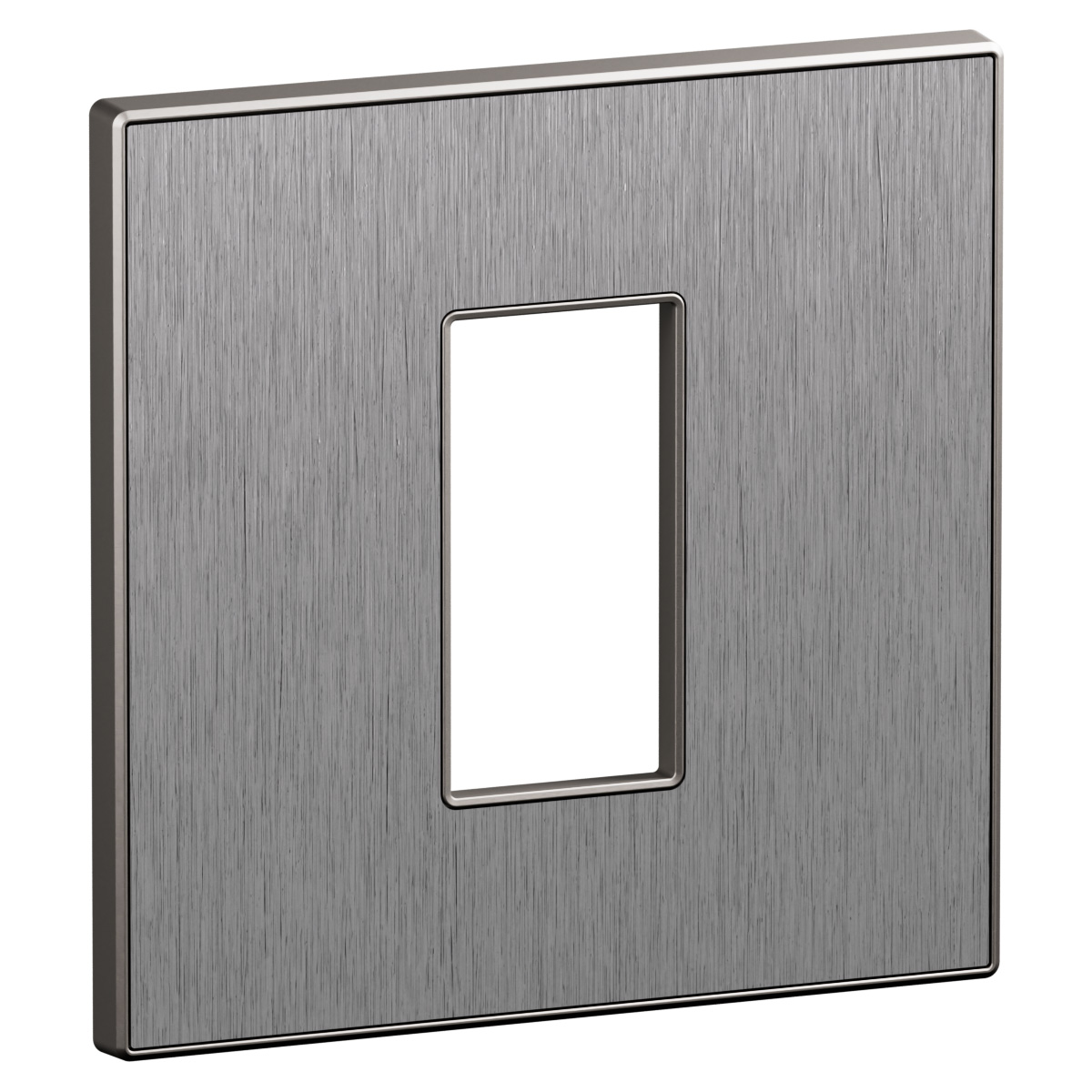

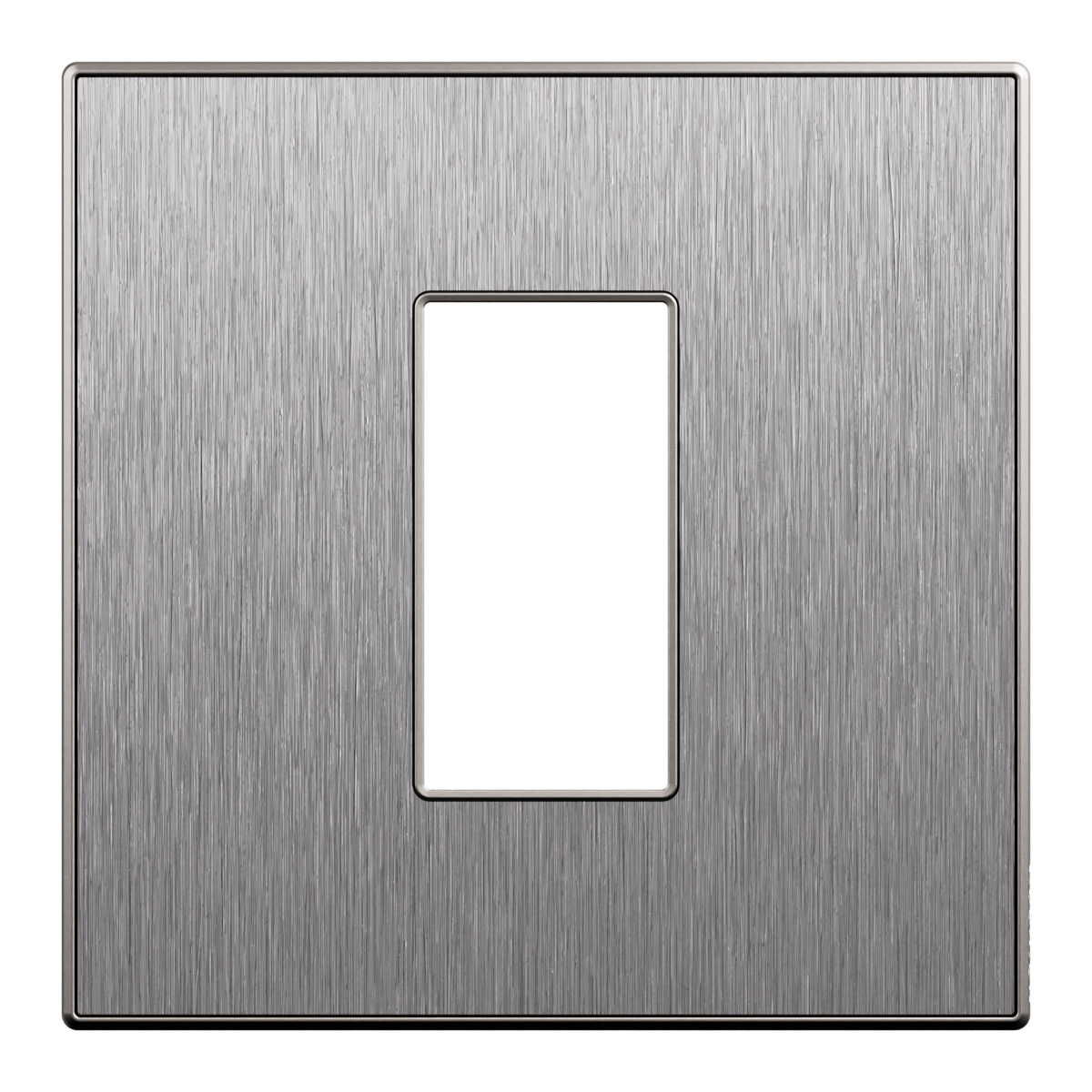

Arteor Advance - 1 module french/schuko plate brushed stainless steel - 1-module square cover frame - Real brushed stainless steel

Arteor Advance Legrand

Arteor Advance - 1 module french/schuko plate brushed stainless steel - 1-module square cover frame - Real brushed stainless steel

REF. AC1120BS EAN. 3414973069297
This French/Schuko 1 module plate made of real brushed stainless steel offers IP20 protection and a halogen-free design. Its square format allows for modular configurations.
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This French/Schuko 1 module plate made of real brushed stainless steel offers IP20 protection and a halogen-free design. Its square format allows for modular configurations.

Product characteristics
  • One-module French/Schuko cover frame enabling a single wiring device in Arteor Advance modular installations
  • Brushed stainless steel metal plate with matt surface for a refined, professional finish
  • Plate made of real brushed stainless steel for enhanced durability and long-term aesthetic stability
  • Square 90-Drummm x 90-Drummm front format providing modularity and flexible configuration
  • Flush-mounted IP20 cover frame with snap fastening, 8.5mm depth and integrated label space for indoor applications
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • The plate contains an adjuster that ensures perfect installation on the wall
Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Real brushed stainless steel, set in a cradle, with a slight ethereal effect
  • Refined design
  • Square format allows modularity and flexible configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 1
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation No
Label space/information surface Yes
Material Metal
Material quality Stainless steel
Halogen free Yes
Antimicrobial treatment No
Surface protection Brushed
Surface finishing Matt
Colour Stainless steel
Transparent No
With hinged lid No
Degree of protection (IP) IP20
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8.5 mm
Built-in width 22.5 mm
Built-in height 45 mm
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04878EN-00.pdf pdf (0.53 Mo)
