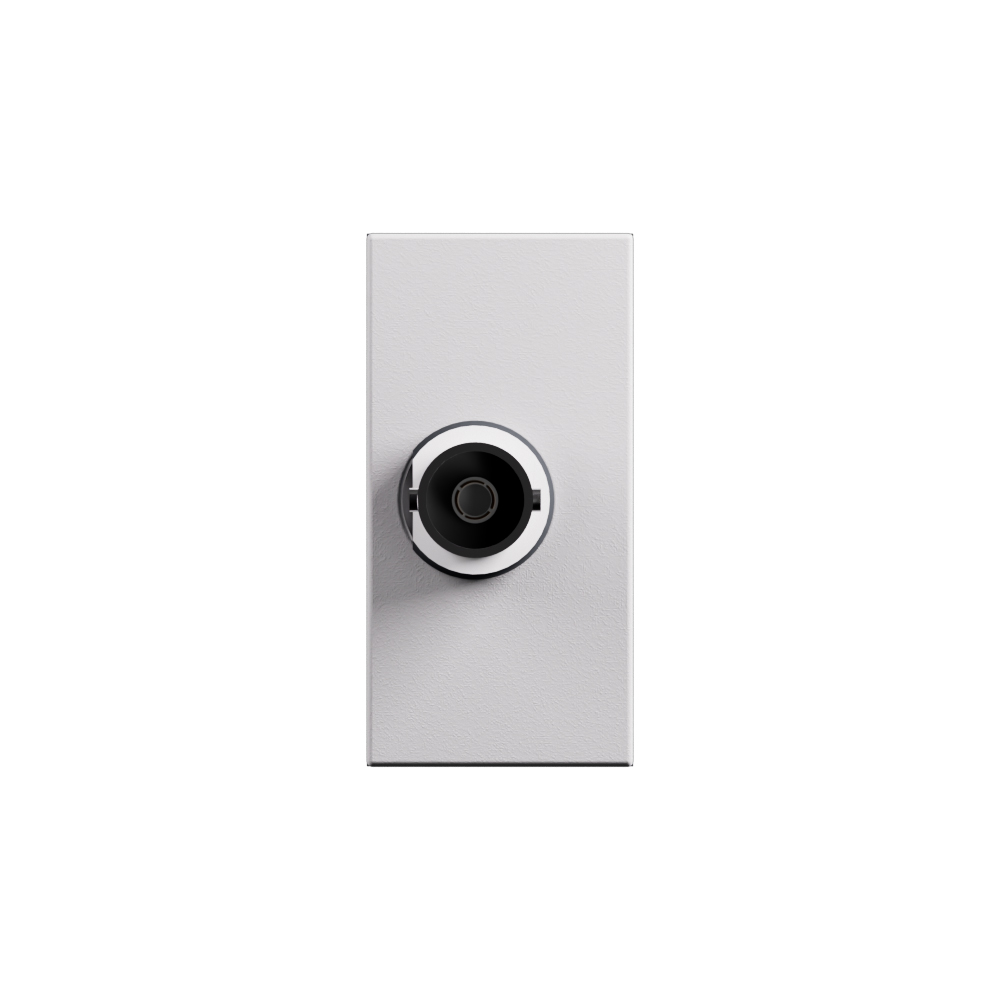

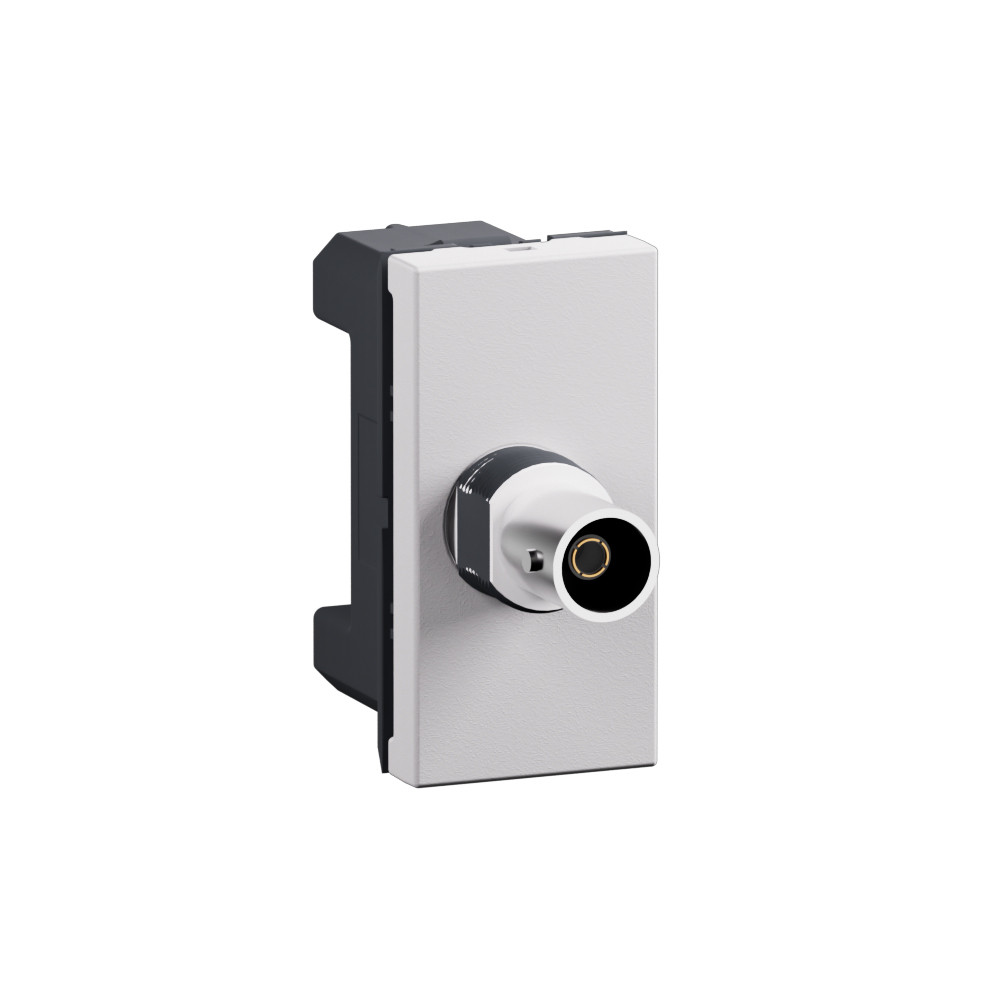

Arteor Advance - 1 module female BNC 75 socket matt white - Composite video link for AV devices - Matt thermoplastic IP40 IK04

Arteor Advance Legrand

Arteor Advance - 1 module female BNC 75 socket matt white - Composite video link for AV devices - Matt thermoplastic IP40 IK04

REF. AC4460MW EAN. 3414972767408
Provides composite video connection for devices such as DVD drives, cameras, or video recorders. This 1 module female BNC 75 socket in matt white thermoplastic offers reliable signal integrity. Snap-in mounting and IP40, IK04 ratings.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

Provides composite video connection for devices such as DVD drives, cameras, or video recorders. This 1 module female BNC 75 socket in matt white thermoplastic offers reliable signal integrity. Snap-in mounting and IP40, IK04 ratings.

Product characteristics
  • One-module 75Ω BNC insert for composite video and communication applications
  • Matt white thermoplastic central cover, lacquered finish, RAL 9003
  • Supplied with rocker plates, to be combined with module frames and front plates for mounting
  • 1m female BNC 75 socket, straight outlet direction, suitable for 1 connector
  • Halogen-free plastic body, IP40, IK04, operating temperature -5 to 35° C, dimensions 22.5x45mm

The product's benefits

Avantages
  • Powdery white with a smooth matte aspect

Technical characteristics

Assembly arrangement Basic element with central cover plate
Utilization BNC/TNC
Support ring No
With dust cover No
With hinged lid No
Outlet direction Straight
Contact type Male
Imprintable label Without indication field
With imprint No
Mounting method Module frame
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Transparent No
Type of fastening Engage (snap)
Number of modules (module system) 1
Suitable for number of connectors 1
With strain relief No
Shielded buses No
Shielded housing No
Luster terminal No
With lighting No
Suitable for degree of protection (IP) IP40
degree of impact strength (IK) IK04
Device width 22.5 mm
Device height 45 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
