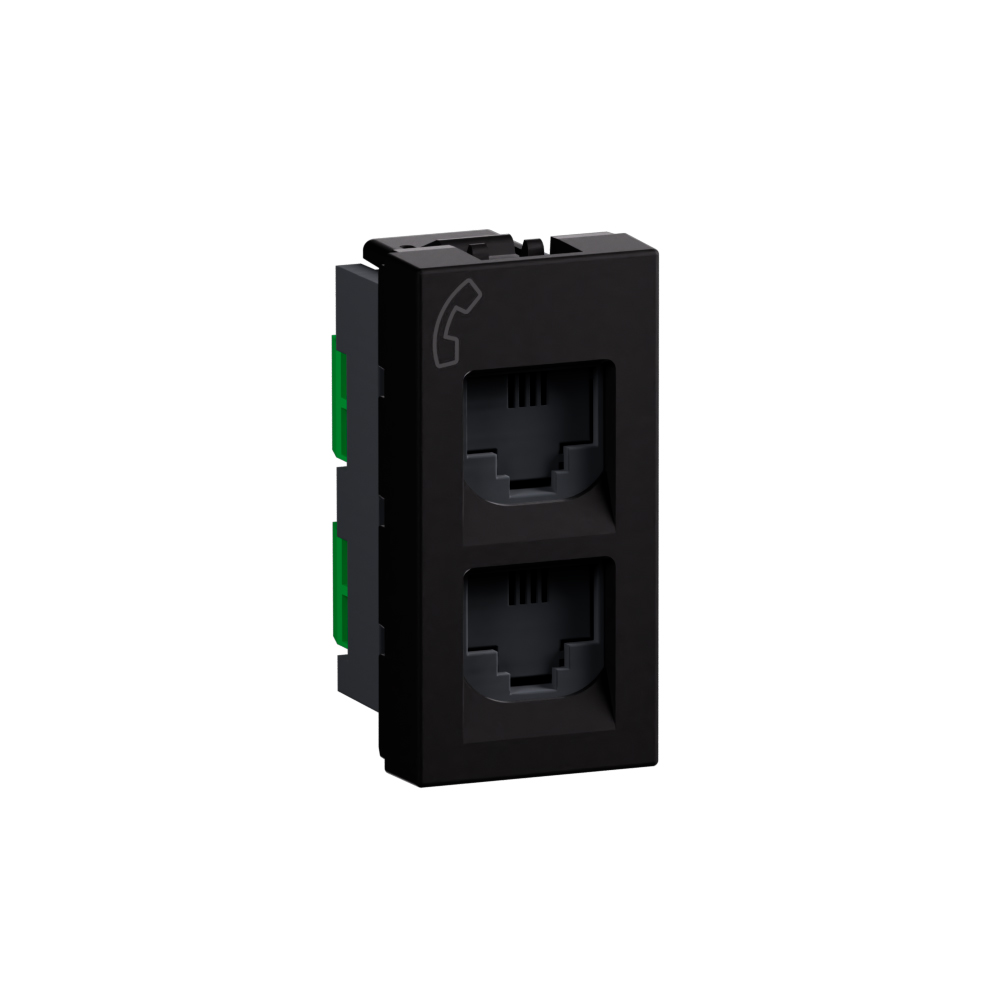

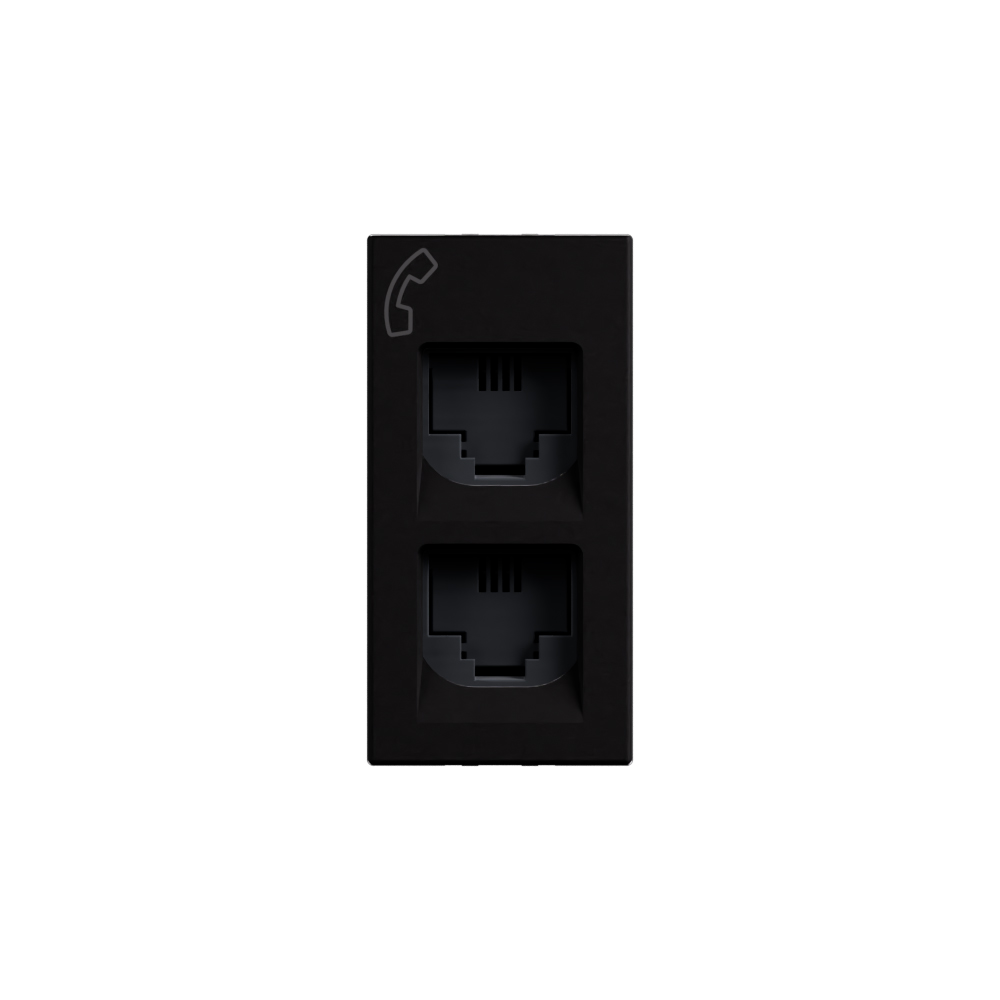

Arteor Advance - 1 module double RJ11 telephone socket matt black - 1M flush-mounted dual RJ11 ports - Deep matt black finish

Arteor Advance Legrand

Arteor Advance - 1 module double RJ11 telephone socket matt black - 1M flush-mounted dual RJ11 ports - Deep matt black finish

REF. AC423MB EAN. 3414972762700
For telephone installation, this 1 module double RJ11 telephone socket in matt black ensures reliable twisted-pair connectivity. Its flush-mounted design with snap fastening and compact 22.5mm width optimizes space.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

For telephone installation, this 1 module double RJ11 telephone socket in matt black ensures reliable twisted-pair connectivity. Its flush-mounted design with snap fastening and compact 22.5mm width optimizes space.

Product characteristics
  • One-module double RJ11 telephone socket for data communication over copper twisted pair, suitable for two RJ11 connectors
  • Matt black finish in deep black with a smooth, non-reflective aspect for discreet integration in technical and architectural environments
  • Flush-mounted 1-module device (22.5x45x23.9mm, built-in depth 14.3mm) for standard wall box installation in structured cabling systems
  • Snap-in fastening basic element with housing top for quick, secure installation and straight outlet direction for clean cable routing
  • RJ11 socket for telephone installation ensuring superior voice transmission and compatibility with a wide range of telephone systems

The product's benefits

Avantages
  • Deep black with a smooth matte aspect

Technical characteristics

Surface mounting No
Flush-mounted installation Yes
Duct installation No
Floor box/subfloor mounted No
Type of fastening Engage (snap)
Assembly arrangement Basic element with housing top
Type of connector Other
With buses/couplings No
Suitable for number of connectors 2
Colour Black
Connection type Other
Shielded buses No
Shielded housing No
Separate earthing connection No
With label space No
Compatible with third-party covers No
Separate strain relief No
Mounting method shielding connection Clip
Outlet direction Straight
With dust cover No
With terminal resistor No
Degree of protection (IP) IP20
Mechanical coding No
Colour coding No
Device width 22.5 mm
Device height 45 mm
Device depth 23.9 mm
Number of modules (module system) 1
Built-in depth 14.3 mm
Terminal marking indication No
Halogen free No
Antimicrobial treatment No
Mounting method Flush-mounted
Cable support Not applicable
