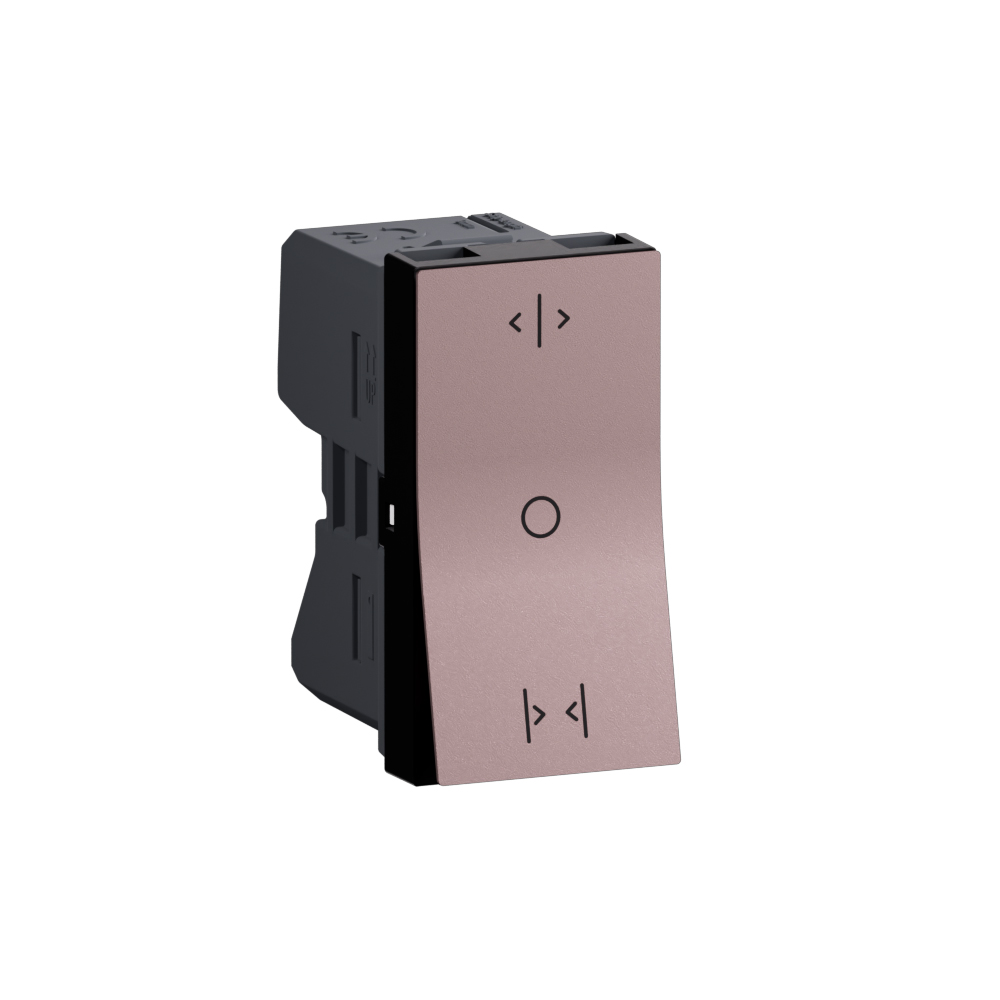

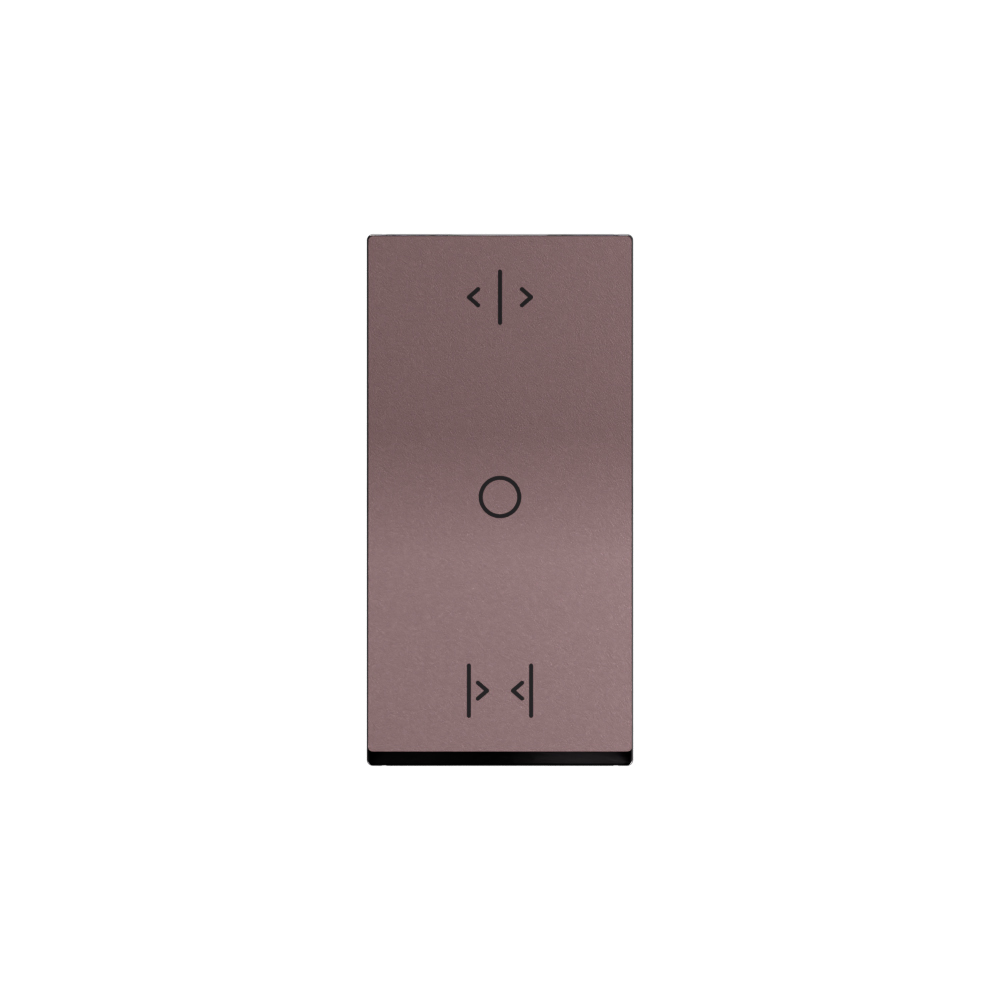

Arteor Advance - 1 module curtain switch center retract rose - 1M modular rocker for blinds and awnings - 6A 250V AC IP20

Arteor Advance Legrand

Arteor Advance - 1 module curtain switch center retract rose - 1M modular rocker for blinds and awnings - 6A 250V AC IP20

REF. AC26102RS EAN. 3414972925013
Allows convenient control of curtains, venetian and roller blinds, and awnings. This 1-pole rocker push button offers 250V AC, 6A operation with center retract. Its compact 1-module design with screw terminals ensures secure installation.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

Allows convenient control of curtains, venetian and roller blinds, and awnings. This 1-pole rocker push button offers 250V AC, 6A operation with center retract. Its compact 1-module design with screw terminals ensures secure installation.

Product characteristics
  • One-module 1M curtain/window blind switch optimized for modular domestic installations, providing compact integration in Arteor Advance frames
  • Rose (pink) finish with subtle blush effect for coordinated aesthetics in residential and light commercial interiors
  • Thermoplastic, halogen-free, matt lacquered front with IK04 impact resistance and IP20 rating for robust indoor use
  • 1-pole rocker push-button with center-off (retractive) operation for precise control of venetian blinds, roller blinds, and awnings
  • 3-way curtain/blind control with on/off and center-off positions, rated 6A 250V AC 50 to 60Hz, with screw terminals (1mm² to 6mm²) for secure wiring
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Pink finish evoking subtle blush effect

Technical characteristics

For venetian blinds Yes
For roller blinds Yes
For awnings Yes
Assembly arrangement Modular device for domestic switching devices
Model 1-pole push button
Number of poles 1
Method of operation Rocker
With electrical latch No
With mechanical latch No
Mechanical controllable Yes
Electronic controllable No
Mounting method Module frame
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Lacquered
Surface finishing Matt
Type of fastening Mounting with screw
Connection type Screwed terminal
Colour Other
Transparent No
Label space/information surface No
Suitable for degree of protection (IP) IP20
Rated current 6 A
Nominal voltage 250 V
Number of buttons 1
Number of modules (module system) 1
Device width 22.5 mm
Device height 45 mm
Device depth 36.9 mm
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Type of lighting Not applicable
Terminal marking indication Yes
Antimicrobial treatment No
Number of terminals 4
Terminals capacity (Min-Max) 1-6 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1-6 mm²
Contains Batteries No
