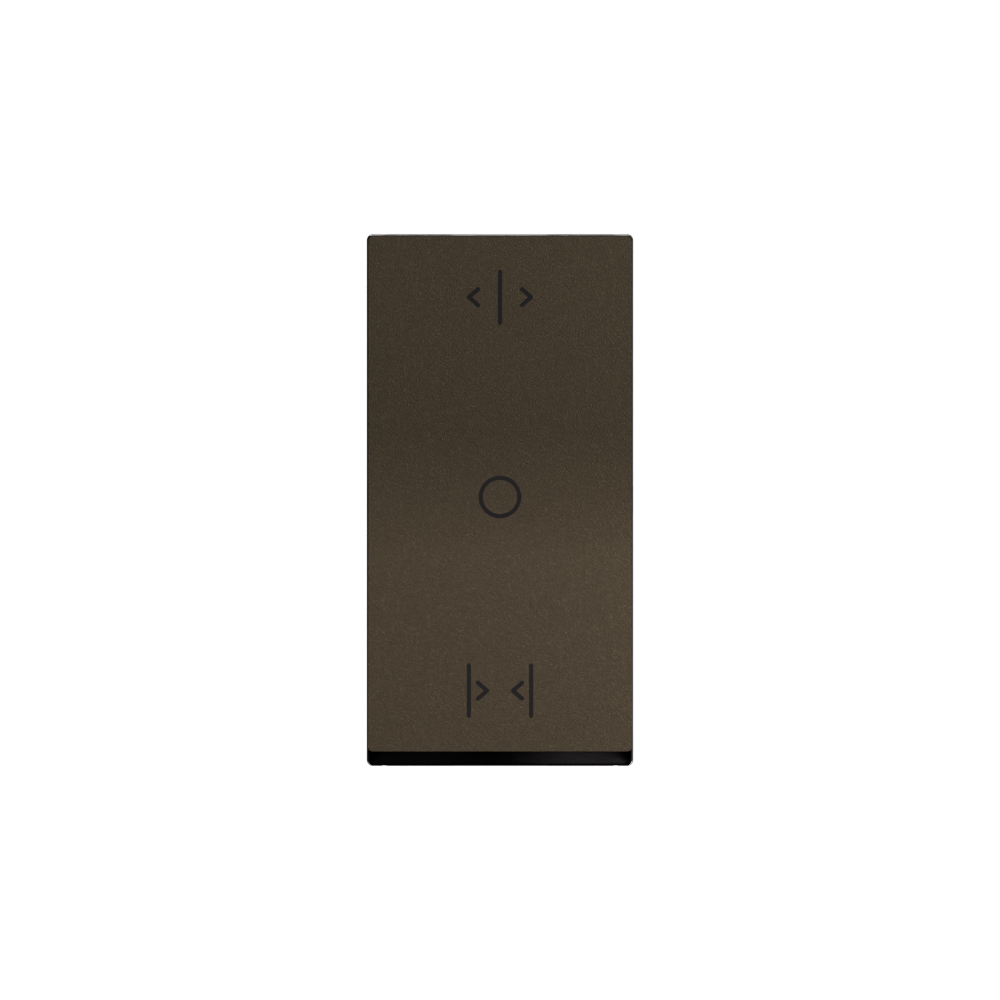

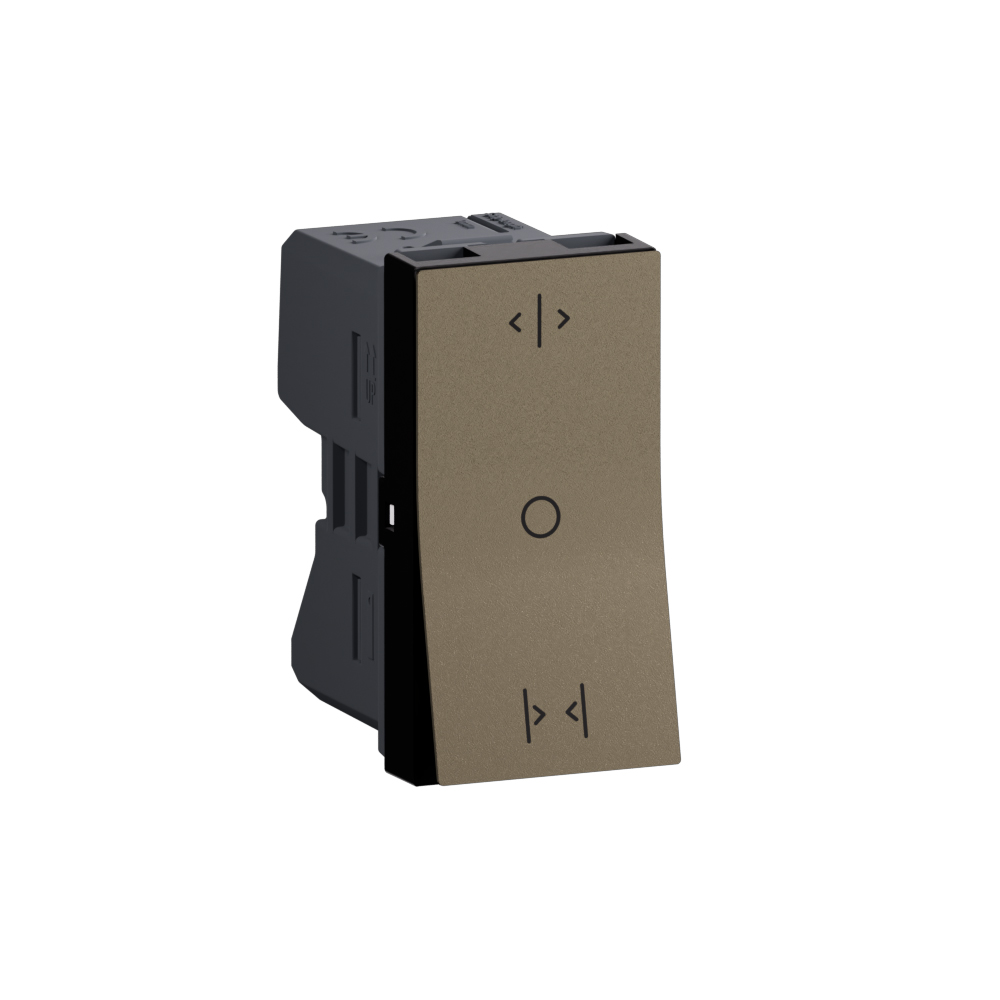

Arteor Advance - 1 module curtain switch center retract dark bronze - 1M modular rocker for blinds and awnings - 6A 250V AC IP20

Arteor Advance Legrand

Arteor Advance - 1 module curtain switch center retract dark bronze - 1M modular rocker for blinds and awnings - 6A 250V AC IP20

REF. AC26102DB EAN. 3414972924986
Allows convenient control of curtains, venetian and roller blinds with a 1-pole rocker push button. Its 1-module, IP20, 250V AC/6A design with screw terminals ensures secure wiring and a robust dark bronze matt thermoplastic finish.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

Allows convenient control of curtains, venetian and roller blinds with a 1-pole rocker push button. Its 1-module, IP20, 250V AC/6A design with screw terminals ensures secure wiring and a robust dark bronze matt thermoplastic finish.

Product characteristics
  • Compact 1-module curtain/window blind switch for modular domestic installations
  • Dark bronze, matt lacquered thermoplastic finish for a deep, classic aesthetic
  • 1-pole rocker, center-retract push-button mechanism for precise curtain and blind positioning
  • Screw-type terminals (1mm² to 6mm², 4 terminals) for secure wiring on flexible or rigid conductors
  • Rated 6A, 250V AC, IP20, IK04, for indoor use with operating temperature from -5 to 35° C
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Deep bronze finish evoking classic aesthetic

Technical characteristics

For venetian blinds Yes
For roller blinds Yes
For awnings Yes
Assembly arrangement Modular device for domestic switching devices
Model 1-pole push button
Number of poles 1
Method of operation Rocker
With electrical latch No
With mechanical latch No
Mechanical controllable Yes
Electronic controllable No
Mounting method Module frame
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Lacquered
Surface finishing Matt
Type of fastening Mounting with screw
Connection type Screwed terminal
Colour Bronze
Transparent No
Label space/information surface No
Suitable for degree of protection (IP) IP20
Rated current 6 A
Nominal voltage 250 V
Number of buttons 1
Number of modules (module system) 1
Device width 22.5 mm
Device height 45 mm
Device depth 36.9 mm
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Type of lighting Not applicable
Terminal marking indication Yes
Antimicrobial treatment No
Number of terminals 4
Terminals capacity (Min-Max) 1-6 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1-6 mm²
Contains Batteries No
