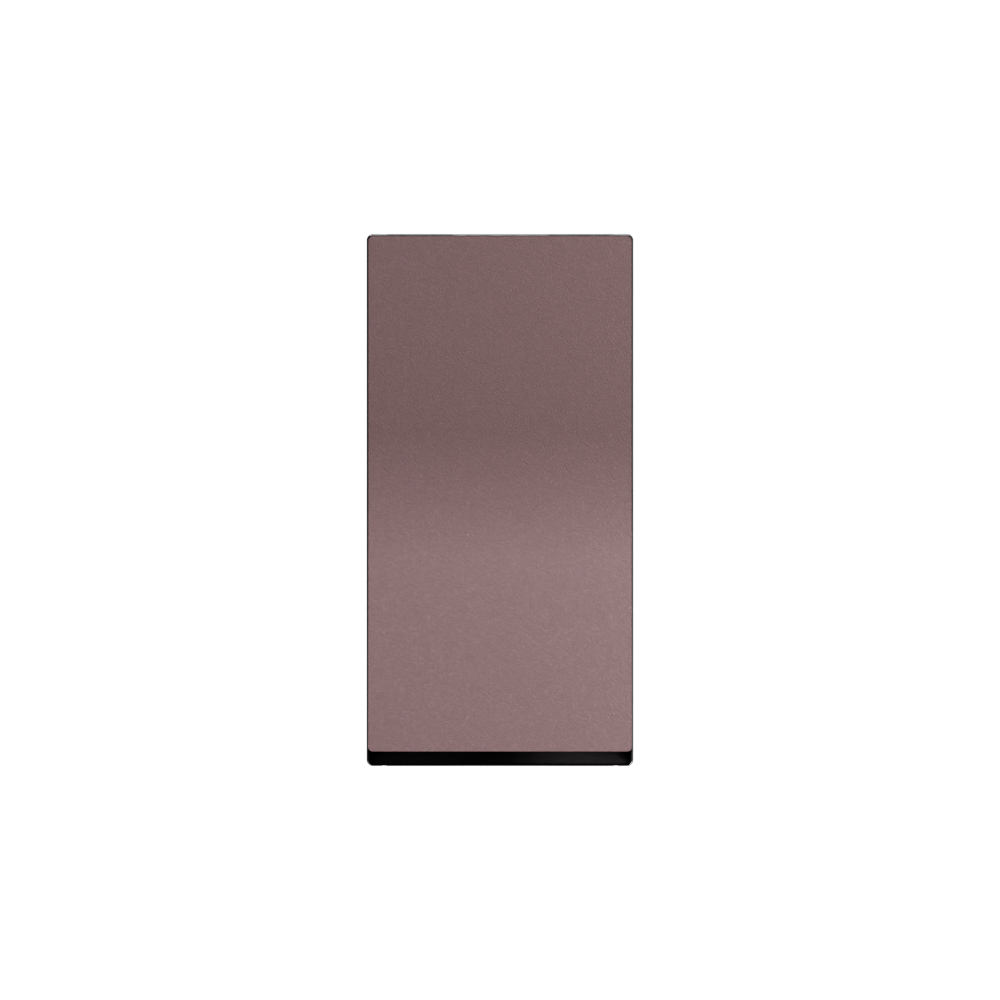

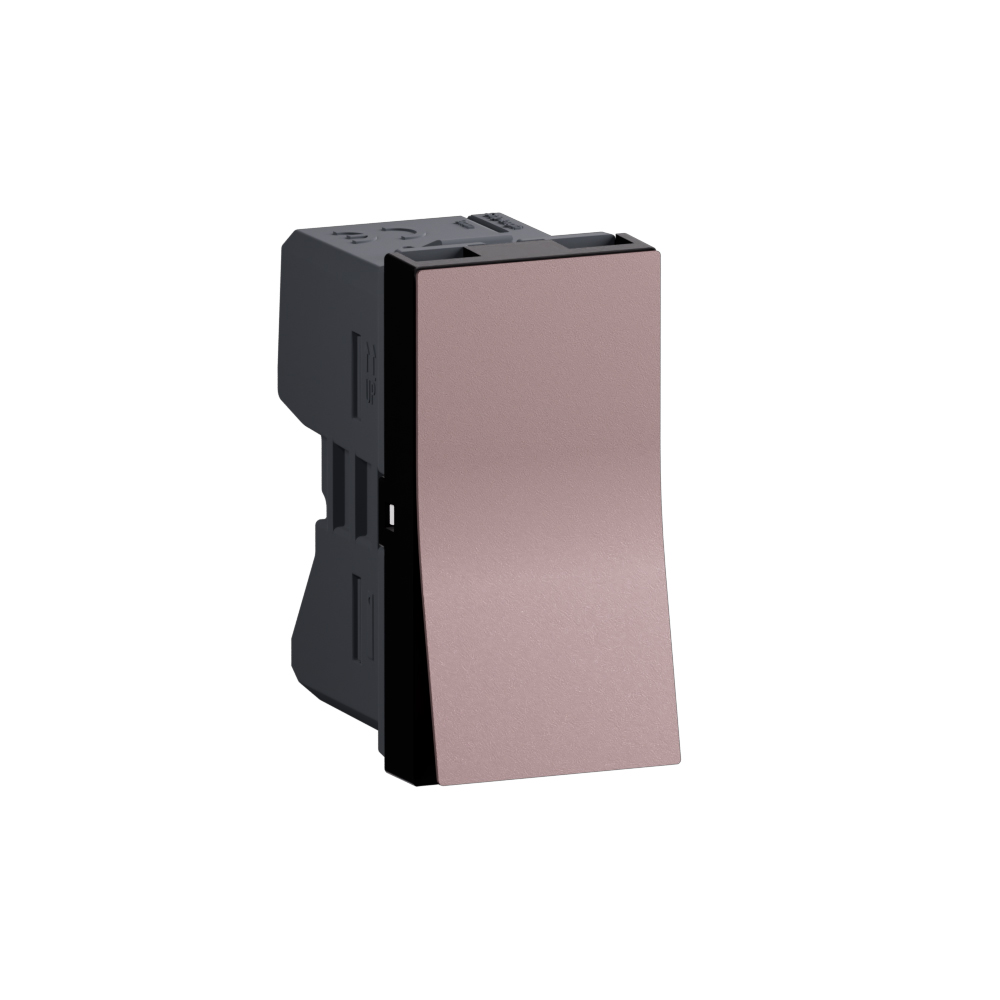

Arteor Advance - 1 module curtain switch center off rose - 1-module rocker for roller blinds - 2-pole 250V 10A IP20 - Screw terminals

Arteor Advance Legrand

Arteor Advance - 1 module curtain switch center off rose - 1-module rocker for roller blinds - 2-pole 250V 10A IP20 - Screw terminals

REF. AC26101RS EAN. 3414972924924
Allows convenient control of curtains with a 1 module, 2-pole rocker switch and center-off position for precise roller blind operation. Rated 10A, 250V AC with IP20 protection and IK04 impact strength for reliable indoor installations.
Download product sheet
Finition :
Number of modules (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

Allows convenient control of curtains with a 1 module, 2-pole rocker switch and center-off position for precise roller blind operation. Rated 10A, 250V AC with IP20 protection and IK04 impact strength for reliable indoor installations.

Product characteristics
  • One-module 1M curtain/window blind switch for roller blinds, optimized for modular domestic installations
  • Rose (pink) finish with subtle blush effect for coordinated aesthetics within Arteor Advance range
  • Rocker-operated 2-pole switch with mechanical latching and 3 terminals, suitable for flexible or rigid cables 1mm² to 4mm²
  • Rated 10A, 250V AC, IP20, IK04, with operating temperature from -5 to 35° C for indoor applications
  • 3-way center-off control enabling up/down curtain actuation with a stable off position for precise, easy operation
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Pink finish evoking subtle blush effect

Technical characteristics

For venetian blinds No
For roller blinds Yes
Assembly arrangement Modular device for domestic switching devices
Model Switch 2-pole
Number of poles 2
Method of operation Rocker
With electrical latch No
With mechanical latch Yes
Mechanical controllable Yes
Electronic controllable No
Mounting method Module frame
Material Plastic
Material quality Thermoplastic
Halogen free No
Surface protection Lacquered
Surface finishing Matt
Type of fastening Other
Connection type Screwed terminal
Colour Other
Transparent No
Label space/information surface No
Suitable for degree of protection (IP) IP20
Rated current 10 A
Nominal voltage 250 V
Number of buttons 1
Number of modules (module system) 1
Device width 22.5 mm
Device height 44.95 mm
Device depth 36.9 mm
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Type of lighting Other
Terminal marking indication Yes
Antimicrobial treatment No
Number of terminals 3
Terminals capacity (Min-Max) 1-4 mm²
Cable nature for connection Flexible or rigid
Contains Batteries No
