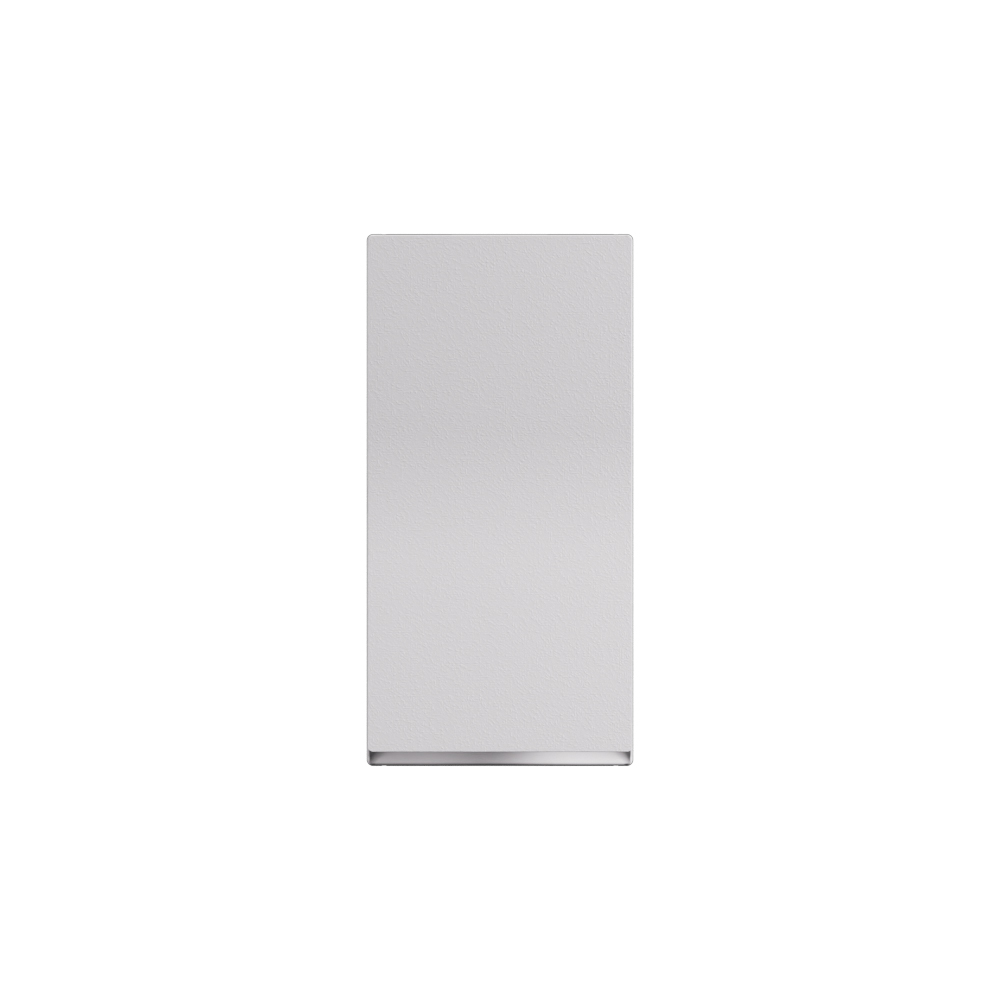

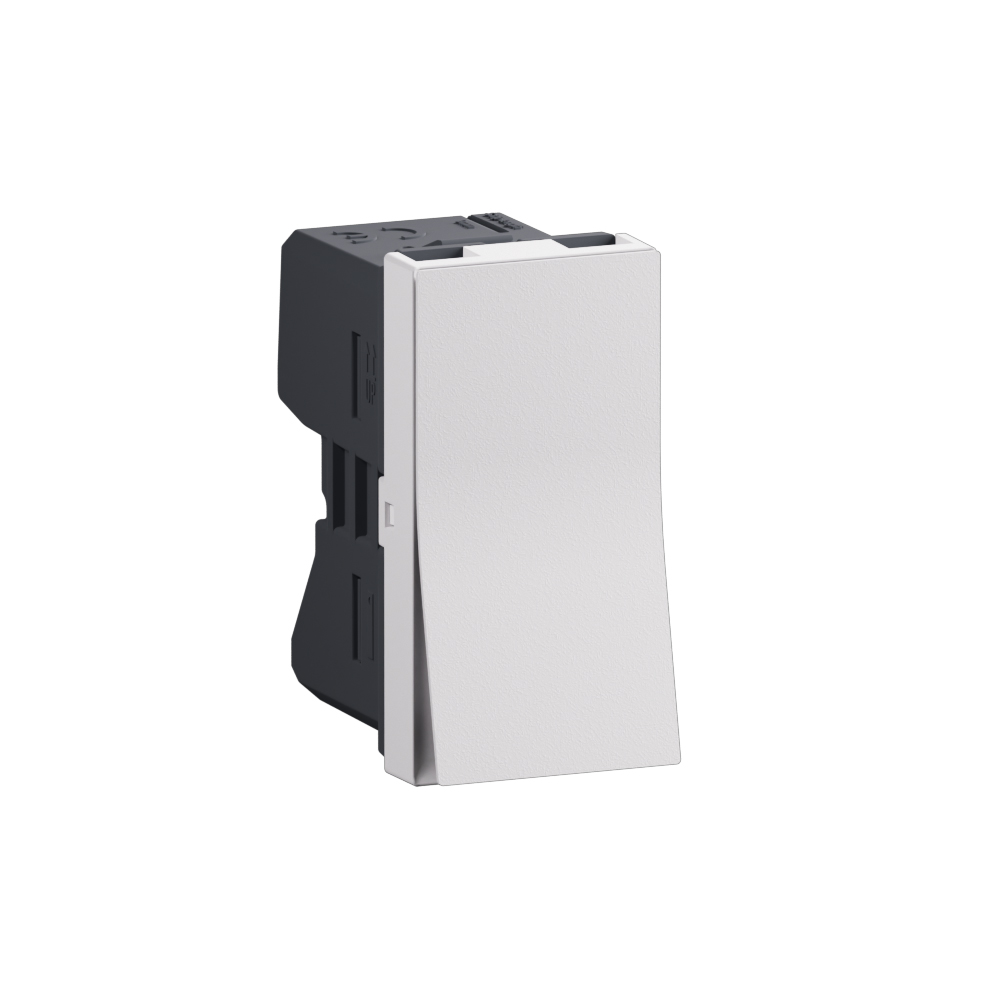

Arteor Advance - 1 module curtain switch center off matt white - 1-pole rocker for blinds and awnings - 250V AC 10A IP20

Arteor Advance Legrand

Arteor Advance - 1 module curtain switch center off matt white - 1-pole rocker for blinds and awnings - 250V AC 10A IP20

REF. AC26101MW EAN. 3414972825450
Allows convenient control of curtains, venetian and roller blinds, and awnings. This 1-module, 1-pole rocker switch with center-off ensures precise 250V, 10A operation. Its matt white thermoplastic body with IP20 rating delivers durability.
Download product sheet
Finition :
Number of modules (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

Allows convenient control of curtains, venetian and roller blinds, and awnings. This 1-module, 1-pole rocker switch with center-off ensures precise 250V, 10A operation. Its matt white thermoplastic body with IP20 rating delivers durability.

Product characteristics
  • 1-module modular curtain/window blind switch for venetian blinds, roller blinds, and awnings
  • Matt white thermoplastic finish (similar to RAL 9003) for a neutral, low-glare appearance
  • Compact 1-pole rocker push-button with center-off position for precise curtain positioning
  • Rated 10A, 250V AC, IP20, IK04, for indoor installations with screw-type terminals (1mm² to 6mm² flexible or rigid cables)
  • 3-way center-off switching for intuitive up/stop/down control and easy manual operation
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Powdery white with a smooth matte aspect

Technical characteristics

For venetian blinds Yes
For roller blinds Yes
For awnings Yes
Assembly arrangement Modular device for domestic switching devices
Model 1-pole push button
Number of poles 1
Method of operation Rocker
With electrical latch No
With mechanical latch No
Mechanical controllable Yes
Electronic controllable No
Mounting method Module frame
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Untreated
Surface finishing Matt
Type of fastening Mounting with screw
Connection type Screwed terminal
Colour White
RAL-number (similar) 9003
Transparent No
Label space/information surface No
Suitable for degree of protection (IP) IP20
Rated current 10 A
Nominal voltage 250 V
Number of buttons 1
Number of modules (module system) 1
Device width 22.5 mm
Device height 45 mm
Device depth 36.9 mm
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Type of lighting Not applicable
Terminal marking indication Yes
Antimicrobial treatment No
Number of terminals 4
Terminals capacity (Min-Max) 1-6 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1-6 mm²
Contains Batteries No
