Arteor Advance - 1 module 3.5mm female preterminated jack socket matt white - 1M audio connector IP40

Arteor Advance Legrand

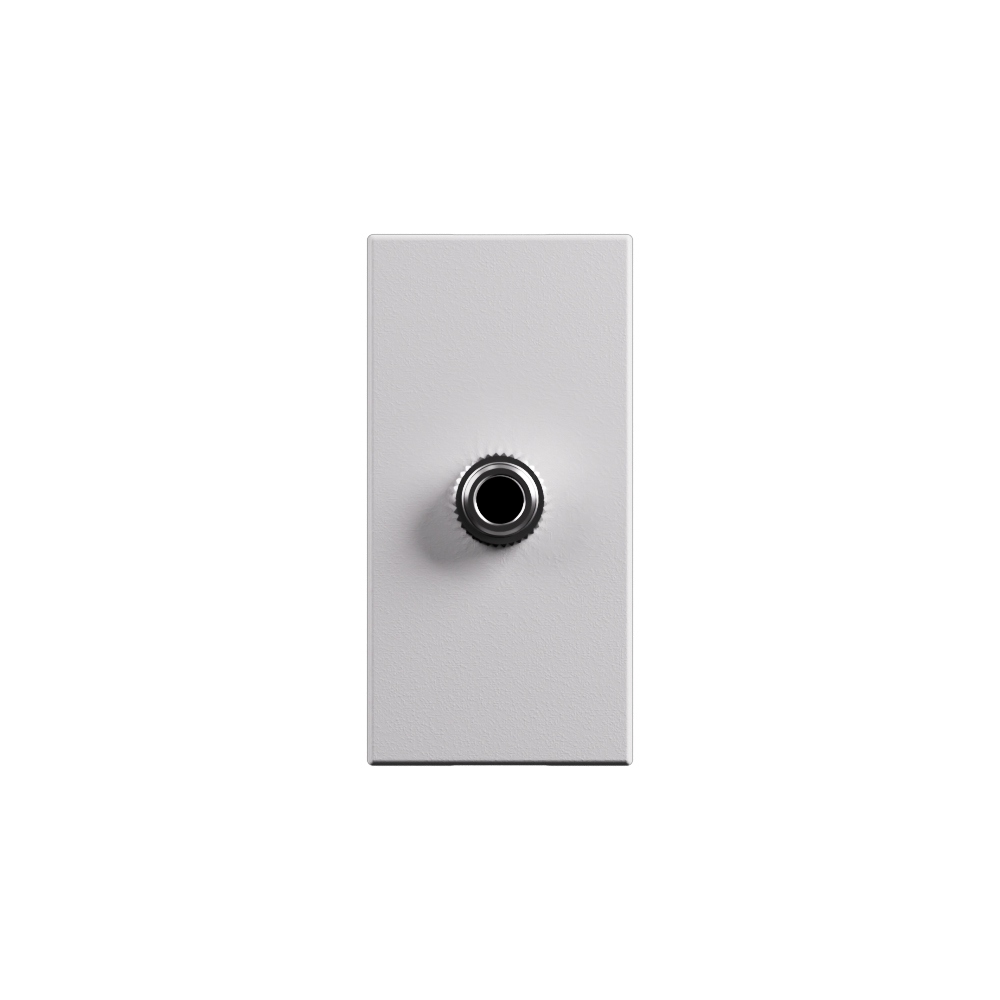

Arteor Advance - 1 module 3.5mm female preterminated jack socket matt white - 1M audio connector IP40

REF. AC4430MW EAN. 3414972766869
This 3.5mm jack socket creates audio links with a compact 1-module, 3.5mm female interface. Its matt white thermoplastic finish integrates in Arteor Advance installations. Preterminated with a 15cm cord, it enables fast, reliable inte
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 3.5mm jack socket creates audio links with a compact 1-module, 3.5mm female interface. Its matt white thermoplastic finish integrates in Arteor Advance installations. Preterminated with a 15cm cord, it enables fast, reliable inte

Product characteristics
  • One-module 3.5mm preterminated jack insert for audio links in communication installations
  • Matt white thermoplastic front (similar to RAL 9003) with lacquered smooth matt finish for discreet integration
  • Supplied with rocker plates, to be combined with Arteor Advance module frames and cover plates for modular mounting
  • Straight female 3.5mm jack socket, 1 connector, basic element with central cover plate for jack plug utilization

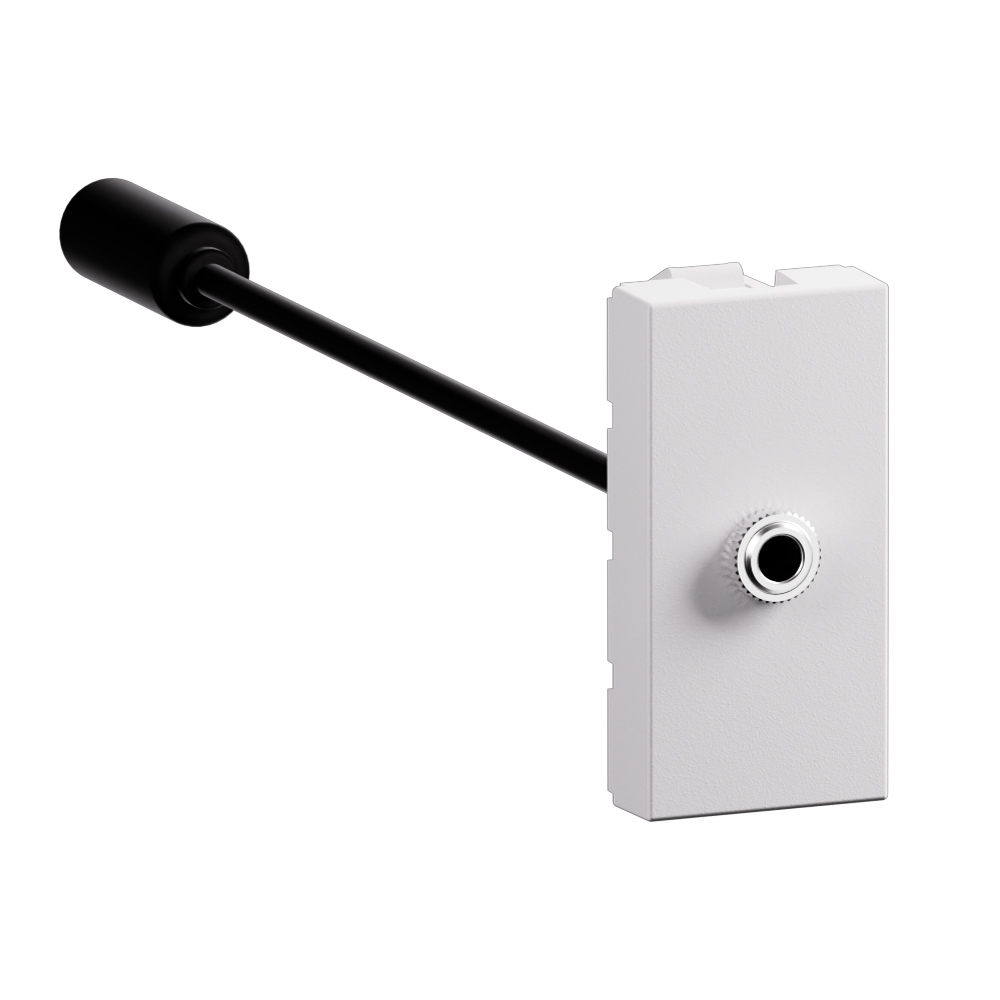

  • Equipped with 15cm cord for easy point-to-point audio connection within the wall box (built-in depth 19mm)

The product's benefits

Installation
  • Modular, fixed with clips directly
Usage
  • Fits perfectly in your environment. Designed in harmony with the large Arteor advance range
Avantages
  • Powdery white with a smooth matte aspect

Technical characteristics

Assembly arrangement Basic element with central cover plate
Utilization Jack plug
Support ring No
With dust cover No
With hinged lid No
Outlet direction Straight
Contact type Female
Imprintable label Without indication field
With imprint No
Mounting method Module frame
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Transparent No
Type of fastening Engage (snap)
Number of modules (module system) 1
Suitable for number of connectors 1
With strain relief No
Shielded buses No
Shielded housing No
Luster terminal No
With lighting No
Suitable for degree of protection (IP) IP40
degree of impact strength (IK) IK04
Device width 22.5 mm
Device height 45 mm
Min. depth of built-in installation box 40 mm
Built-in depth 19 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
