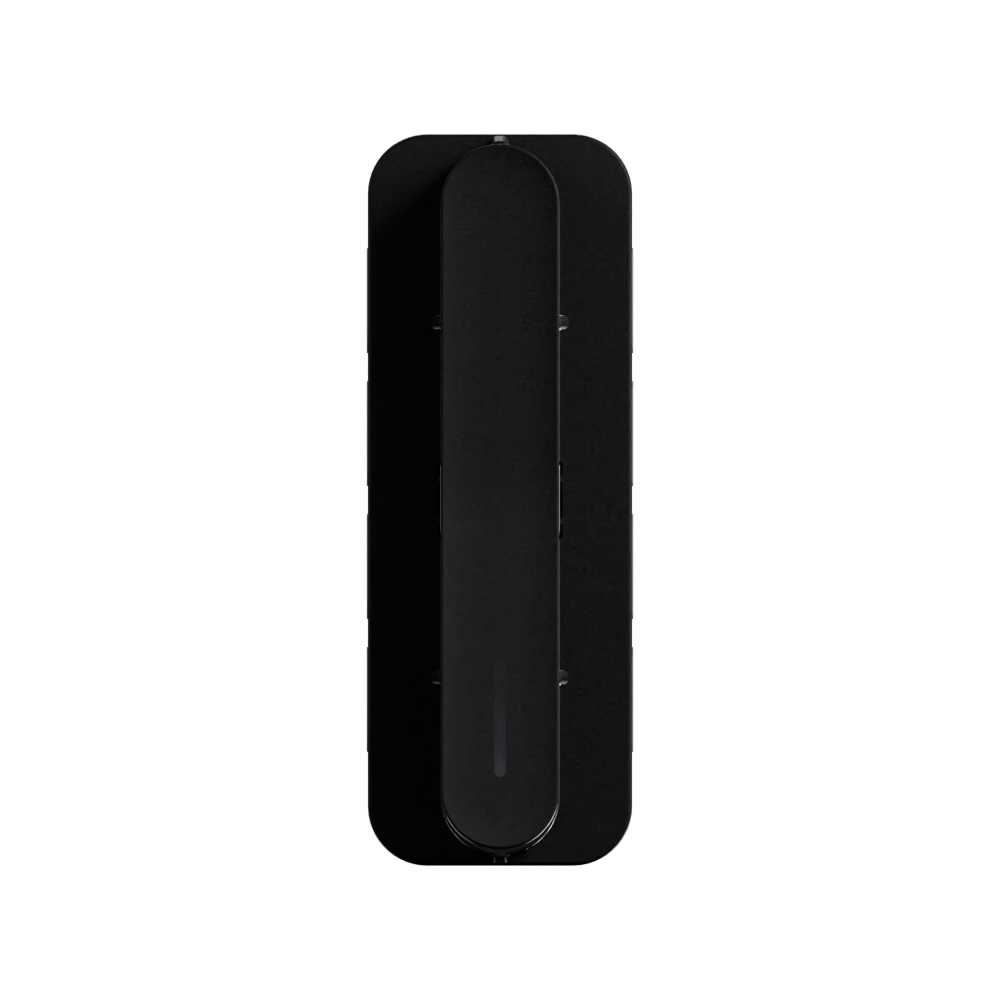

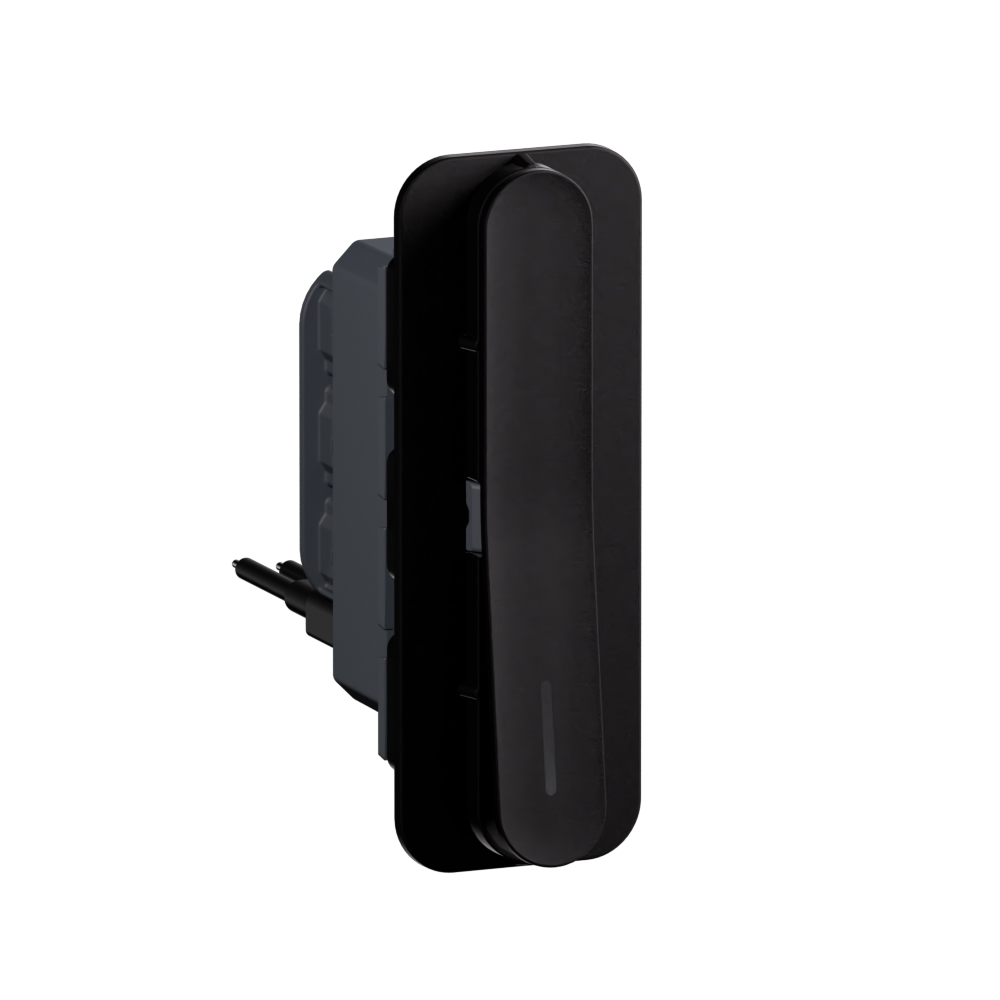

Arteor Advance - 1 module 2 way 20AX slim switch with indicator matt black - Slender ergonomic design

Arteor Advance Legrand

Arteor Advance - 1 module 2 way 20AX slim switch with indicator matt black - Slender ergonomic design

REF. AA22108MB EAN. 3414973144765
Allows control of light from two locations with a 1-module, 2-way 20AX AC switch. Its slender matt black design ensures elegant integration. Screw-type terminals and 20AX rating support secure wiring and reliable switching.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Allows control of light from two locations with a 1-module, 2-way 20AX AC switch. Its slender matt black design ensures elegant integration. Screw-type terminals and 20AX rating support secure wiring and reliable switching.

Product characteristics
  • One-module, two-way 20AX installation switch for controlling a circuit from two locations
  • Matt black thermoplastic front with lacquered, smooth finish for a deep, low-glare aesthetic
  • Slender 1M modular rocker design (22.5x61.8x43.1mm) with snap-in mounting for Arteor Advance frames
  • Rated 20A 250V AC, suitable for switching the full rated current on inductive and resistive SBL loads and LED lighting
  • IP20, IK02 device with screw terminals (0.75mm² to 1.5mm² flexible or rigid) and operating temperature from -5 to 35° C for indoor use
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 10,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch
  • Deep black with a smooth matt aspect
  • The slender format offers a unique ergonomy with a low angle of 3.5° for optimal and elegant integration in the environment

Technical characteristics

Wiring system Two-way switch
Method of operation Rocker/button
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 1
Push button switch No
Number of rockers 1
Mounting method Module frame
Type of fastening Engage (snap)
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Black
RAL-number (similar) 9003
Colour of switch operator Black
Label space/information surface No
Lighting Optional
Function lighting Illuminated (on)
Type of lighting LED exchangeable
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK02
Nominal voltage 250 V
Rated current 20 A
Switching current for fluorescent lamps 20 AX
Monitoring contact No
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 22.5 mm
Device height 61.8 mm
Device depth 43.1 mm
Built-in depth 31.5 mm
Min. depth of built-in installation box 45 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) 0-70 °C
Voltage type AC
Frequency (Min-Max) 50 -60 Hz
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
Cable nature for connection Flexible or rigid
