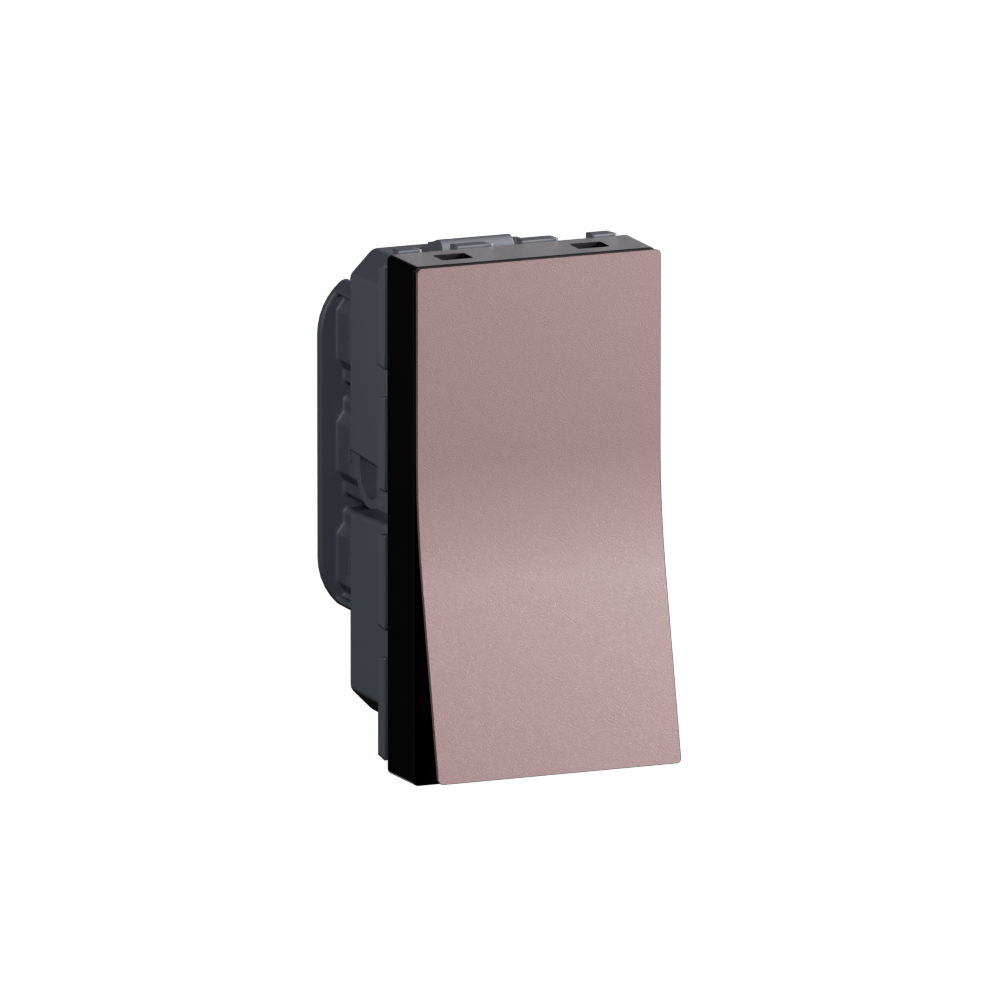

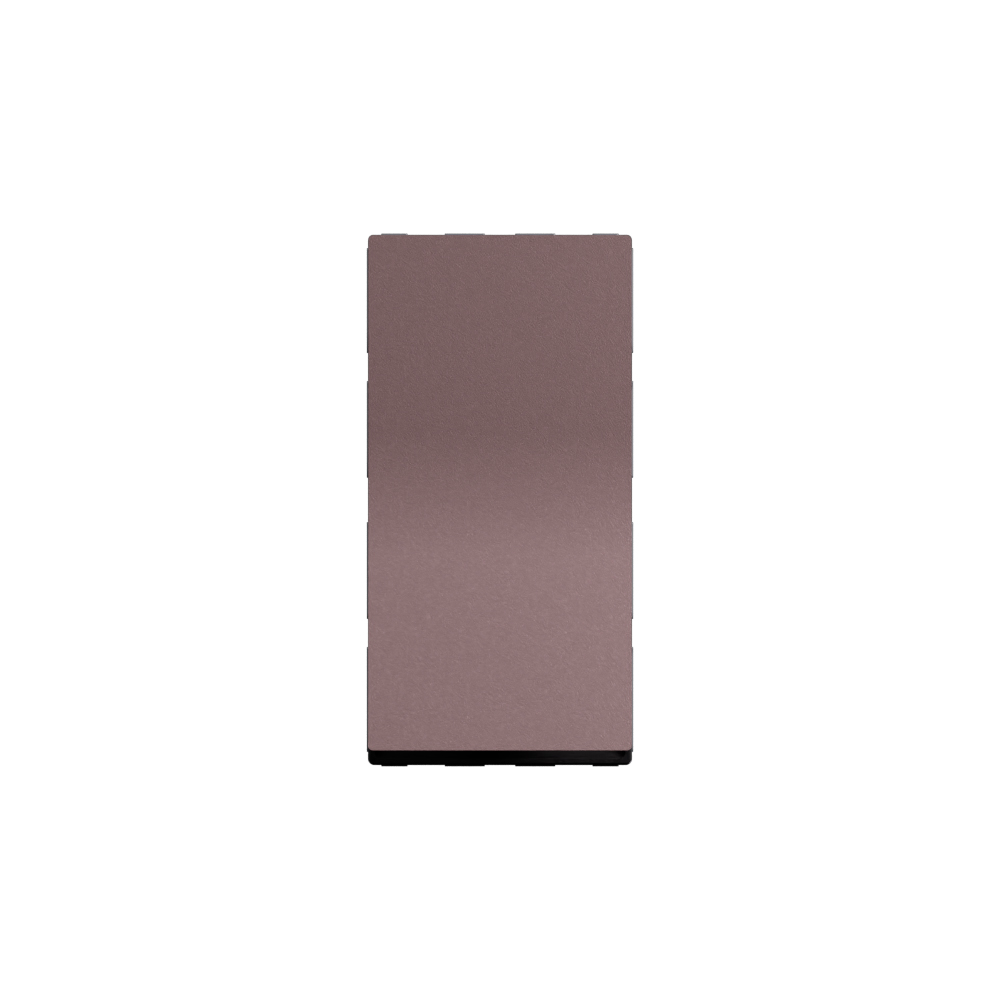

Arteor Advance - 1 module 2 way 20AX single pole switch rose - 1M modular rocker, 250V AC - Screw terminals, IP20

Arteor Advance Legrand

Arteor Advance - 1 module 2 way 20AX single pole switch rose - 1M modular rocker, 250V AC - Screw terminals, IP20

REF. AC22106RS EAN. 3414972923873
Offers a gentle touch for effortless light control with a smooth rocker operation. This 1-module, 2-way, 20AX single-pole switch in rose finish ensures reliable 250V AC performance on inductive, resistive, and LED loads.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Offers a gentle touch for effortless light control with a smooth rocker operation. This 1-module, 2-way, 20AX single-pole switch in rose finish ensures reliable 250V AC performance on inductive, resistive, and LED loads.

Product characteristics
  • One-module, two-way 20AX single-pole installation switch for domestic lighting control
  • Rose finish in the Arteor Advance range, providing a subtle blush aesthetic for premium interiors
  • Rocker/button actuator engineered for smooth, gentle touch operation and precise switching
  • 20A rating at 250V AC, suitable for switching the full rated current on inductive and resistive SBL loads and LED circuits
  • Modular snap-in device (1M) with screw-type terminals for flexible/rigid conductors 0.75mm² to 1.5mm², IP20, IK02, for indoor use
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 10,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch
  • Pink finish evoking subtle blush effect
  • The square format enables modularity for lighting control

Technical characteristics

Wiring system Two-way switch
Method of operation Rocker/button
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 1
Push button switch No
Number of rockers 1
Mounting method Module frame
Type of fastening Engage (snap)
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Other
Colour of switch operator Other
Label space/information surface No
Lighting No
Function lighting Other
Type of lighting Other
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK02
Nominal voltage 250 V
Rated current 20 A
Switching current for fluorescent lamps 20 AX
Monitoring contact No
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 22.5 mm
Device height 45.1 mm
Device depth 40 mm
Built-in depth 27.5 mm
Min. depth of built-in installation box 45 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) 0-70 °C
Voltage type AC
Frequency (Min-Max) 50 -60 Hz
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
Cable nature for connection Flexible or rigid
