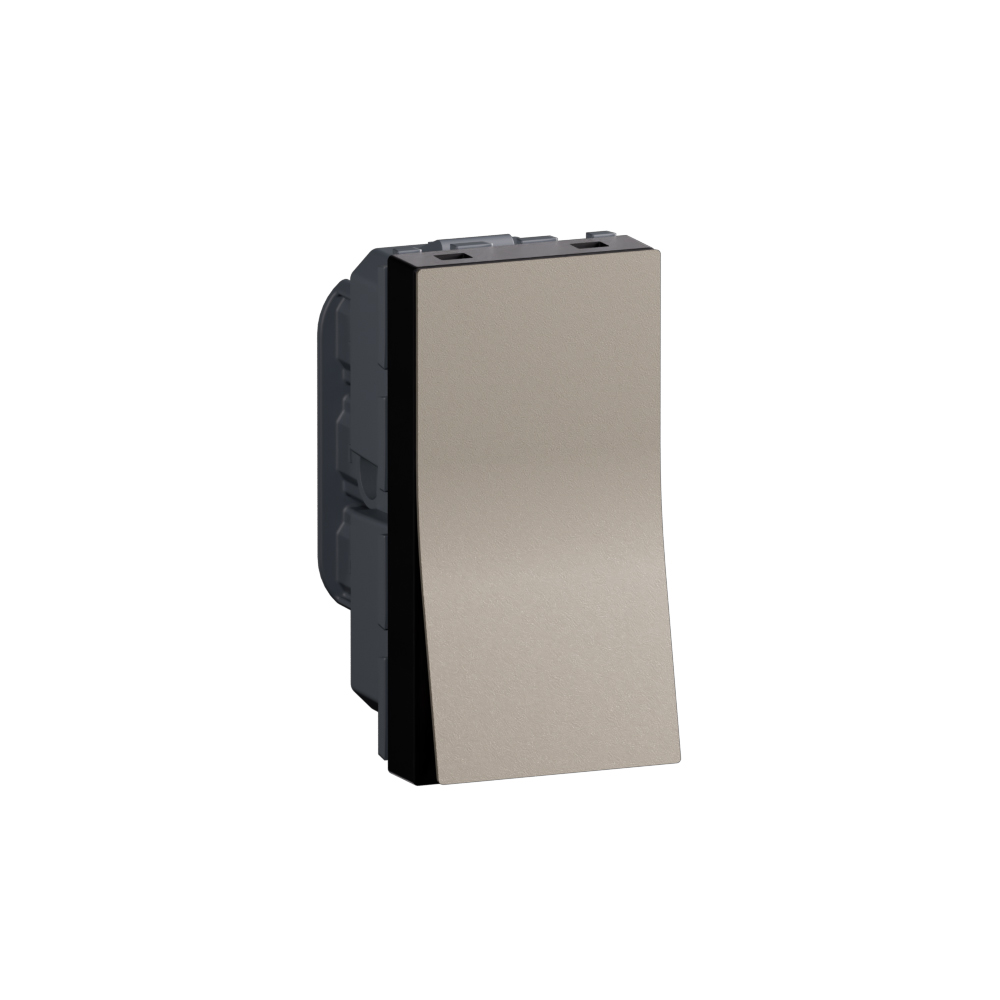

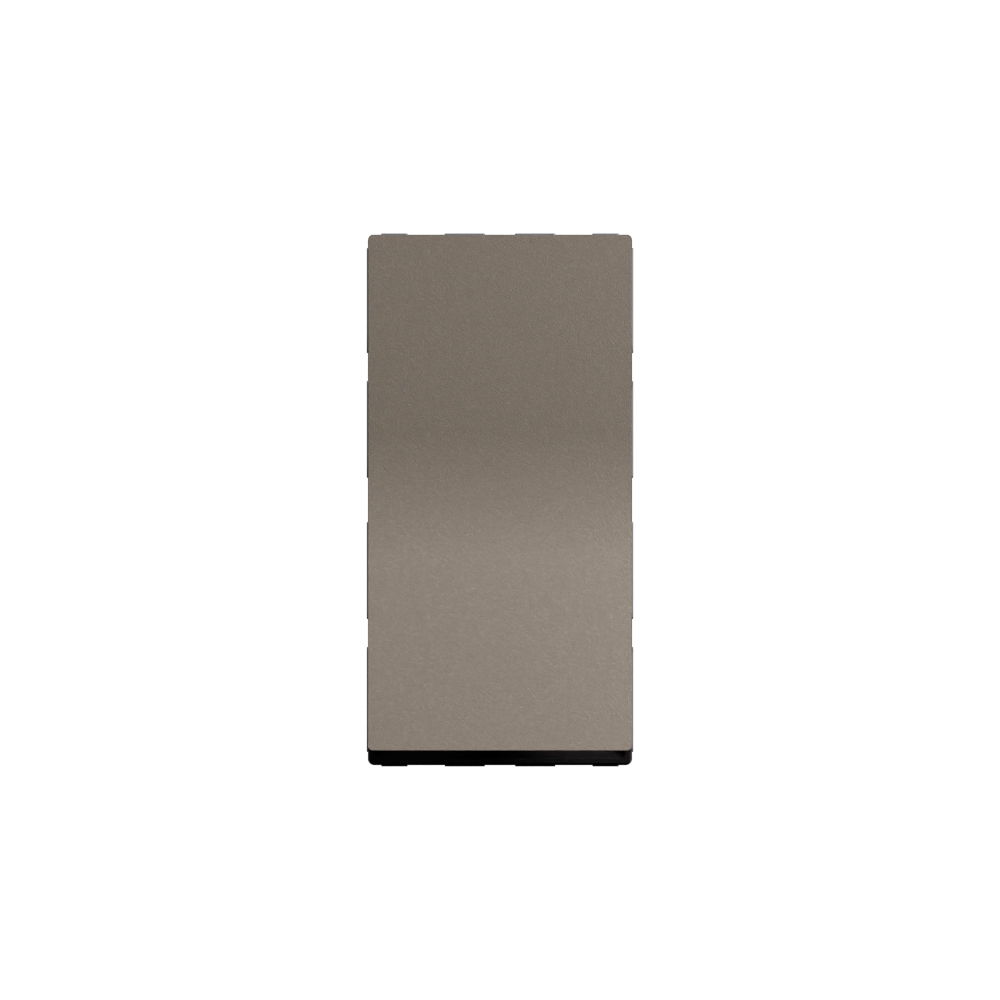

Arteor Advance - 1 module 2 way 20AX single pole switch champagne - Rocker operation - Screw terminals - Matt gold IP20

Arteor Advance Legrand

Arteor Advance - 1 module 2 way 20AX single pole switch champagne - Rocker operation - Screw terminals - Matt gold IP20

REF. AC22106CH EAN. 3414972923811
Offers a gentle touch for effortless light control with a smooth-operating rocker. This 1-module, 2-way 20AX single-pole switch in champagne supports inductive, resistive, and LED loads. Screw-type terminals ensure secure, reliable wiring.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Offers a gentle touch for effortless light control with a smooth-operating rocker. This 1-module, 2-way 20AX single-pole switch in champagne supports inductive, resistive, and LED loads. Screw-type terminals ensure secure, reliable wiring.

Product characteristics
  • One-module, two-way, 20ax single-pole switch for modular domestic lighting control circuits
  • Champagne (gold) matt lacquered finish aligns with Arteor Advance aesthetics for premium interior applications
  • Rocker/button actuator engineered for smooth, low-effort operation and precise switching feedback
  • 20AX rating at 250V AC, suitable for switching the full rated current on inductive and resistive SBL loads and LED lighting
  • IP20 modular device with screw terminals (0.75mm² to 1.5mm²) and snap-in mounting, optimized for indoor installation in 45mm-deep boxes
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 10,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch
  • Warm gray finish infused with ivory hues highlights silky elegance
  • The square format enables modularity for lighting control

Technical characteristics

Wiring system Two-way switch
Method of operation Rocker/button
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 1
Push button switch No
Number of rockers 1
Mounting method Module frame
Type of fastening Engage (snap)
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Gold
Colour of switch operator Gold
Label space/information surface No
Lighting No
Function lighting Other
Type of lighting Other
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK02
Nominal voltage 250 V
Rated current 20 A
Switching current for fluorescent lamps 20 AX
Monitoring contact No
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 22.5 mm
Device height 45.1 mm
Device depth 40 mm
Built-in depth 27.5 mm
Min. depth of built-in installation box 45 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) 0-70 °C
Voltage type AC
Frequency (Min-Max) 50 -60 Hz
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
Cable nature for connection Flexible or rigid
