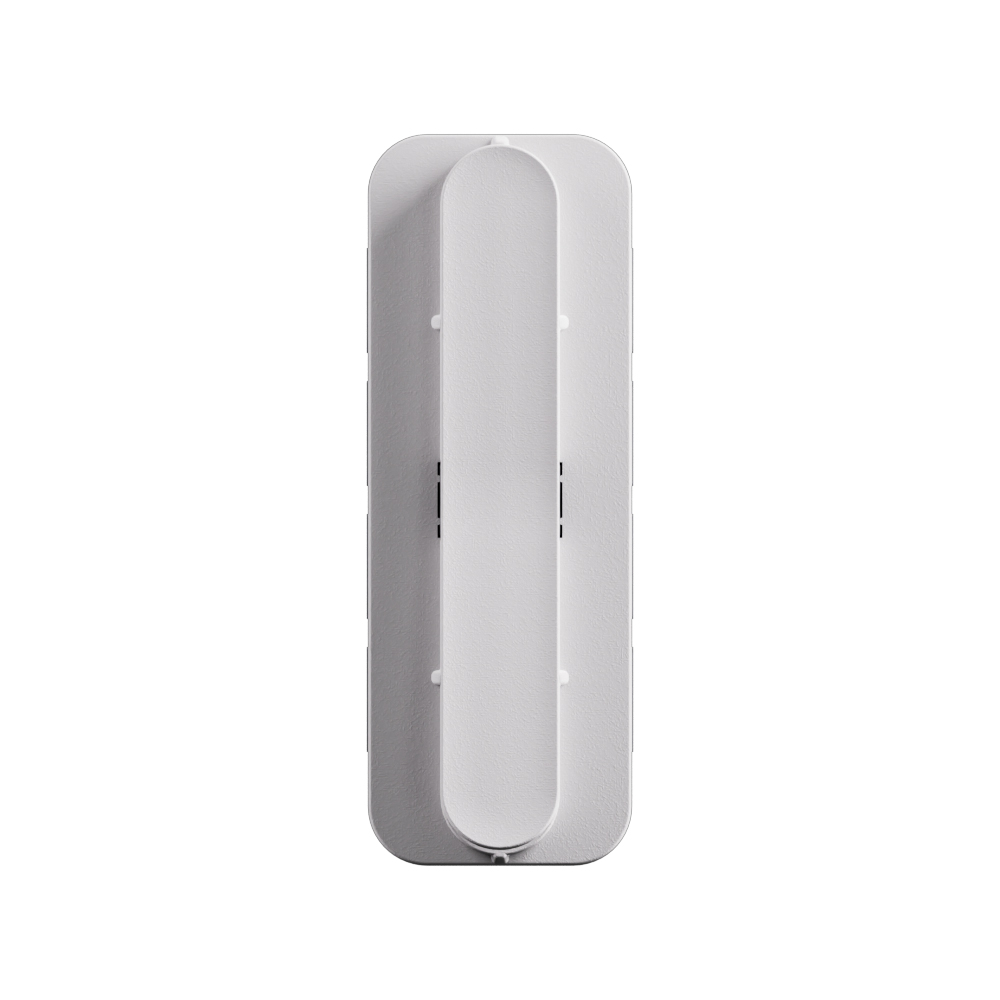

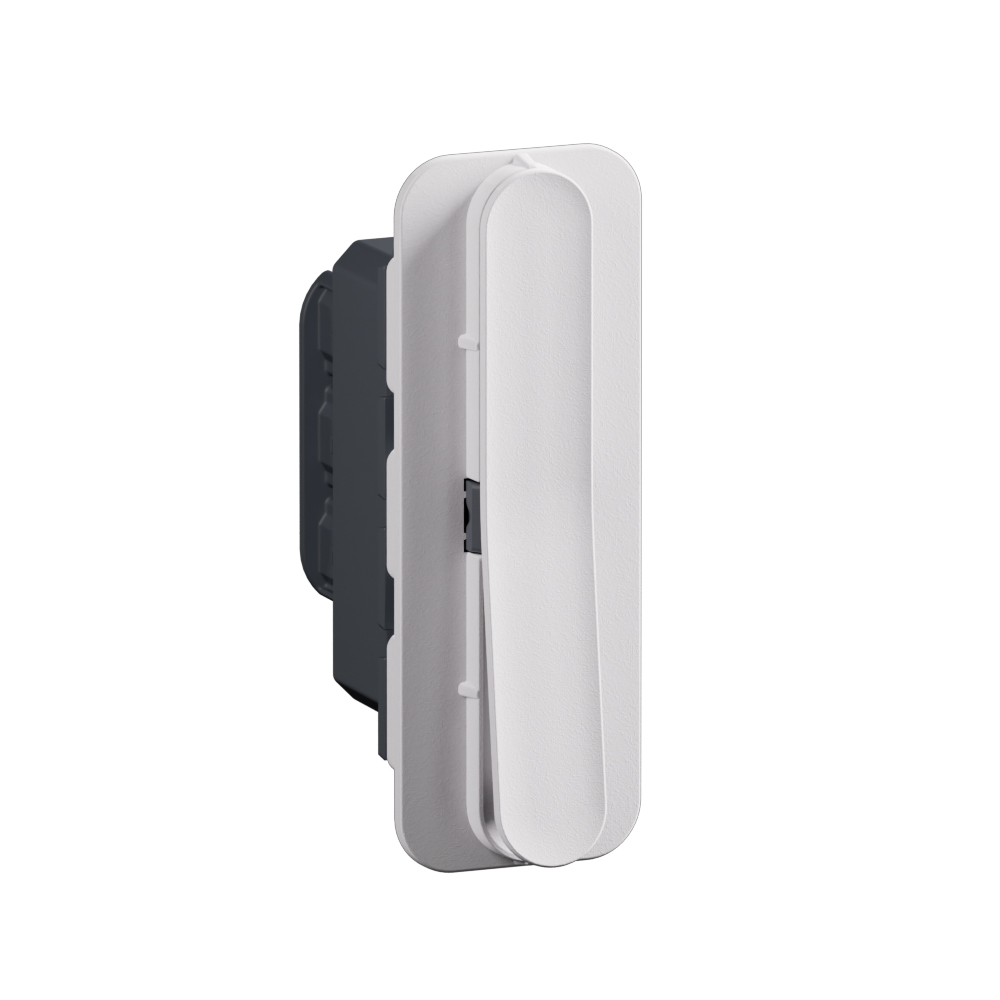

Arteor Advance - 1 module 2 way 20AX single pole slim switch matt white - Rocker operation - Screw terminals, 250V AC, IP20

Arteor Advance Legrand

Arteor Advance - 1 module 2 way 20AX single pole slim switch matt white - Rocker operation - Screw terminals, 250V AC, IP20

REF. AA22106MW EAN. 3414973144734
Allows control of light from two locations with a 1 module, 2 way, 20AX single pole design. The matt white rocker ensures smooth operation. Screw-type terminals provide secure wiring for inductive, resistive, and LED loads.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Allows control of light from two locations with a 1 module, 2 way, 20AX single pole design. The matt white rocker ensures smooth operation. Screw-type terminals provide secure wiring for inductive, resistive, and LED loads.

Product characteristics
  • One-module, two-way 20AX single-pole installation switch for controlling a circuit from two locations
  • Matt white thermoplastic finish (similar to RAL 9003) for a discreet, uniform appearance in Arteor Advance installations
  • Single rocker/button mechanism engineered for smooth, precise operation and reliable tactile feedback
  • Rated 20A at 250V AC, suitable for switching the full rated current on inductive and resistive SBL loads and LED lighting
  • Modular 1M device with snap-in mounting and screw terminals (0.75mm² to 1.5mm²) for secure wiring in IP20 indoor applications
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 10,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch
  • Powdery white with a smooth matt aspect
  • The slender format offers a unique ergonomy with a low angle of 3.5° for optimal and elegant integration in the environment

Technical characteristics

Wiring system Two-way switch
Method of operation Rocker/button
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 1
Push button switch No
Number of rockers 1
Mounting method Module frame
Type of fastening Engage (snap)
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Colour of switch operator White
Label space/information surface No
Lighting No
Function lighting Other
Type of lighting Other
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK02
Nominal voltage 250 V
Rated current 20 A
Switching current for fluorescent lamps 20 AX
Monitoring contact No
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 22.5 mm
Device height 61.8 mm
Device depth 41.9 mm
Built-in depth 31.5 mm
Min. depth of built-in installation box 45 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) 0-70 °C
Voltage type AC
Frequency (Min-Max) 50 -60 Hz
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
Cable nature for connection Flexible or rigid
