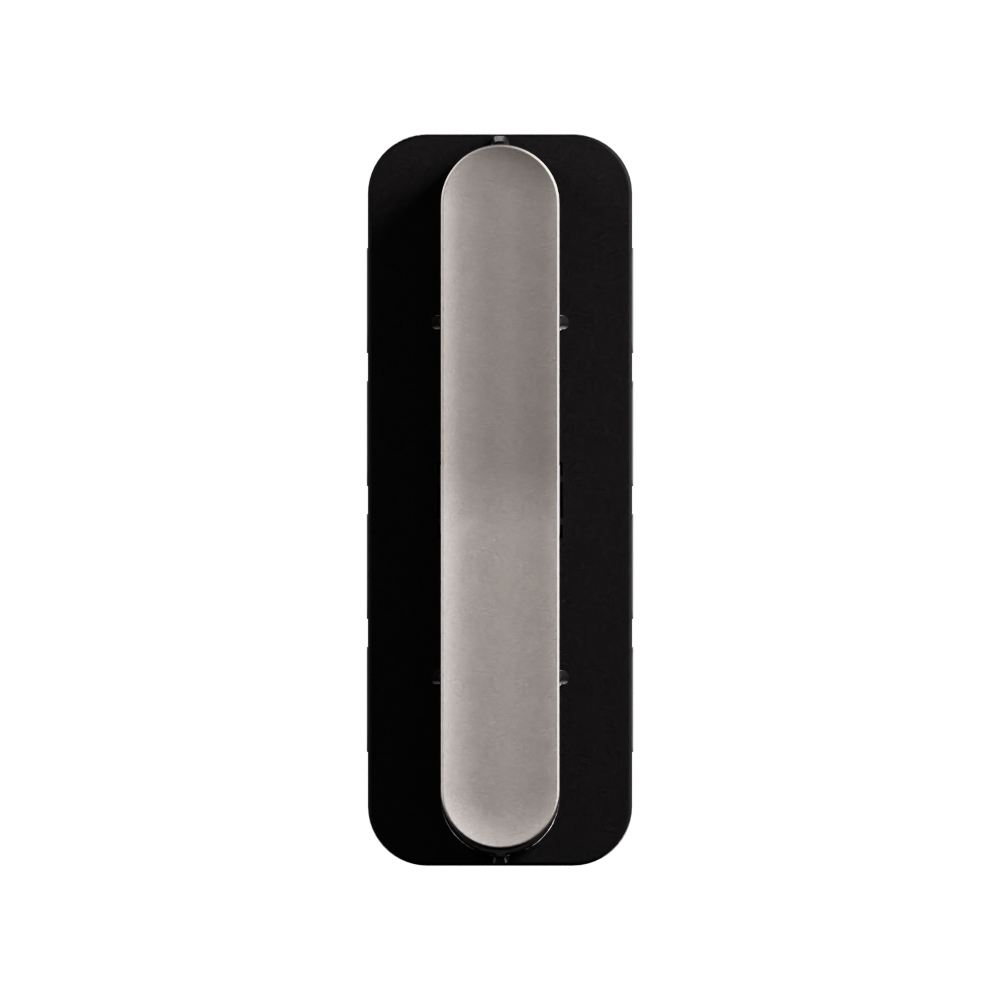

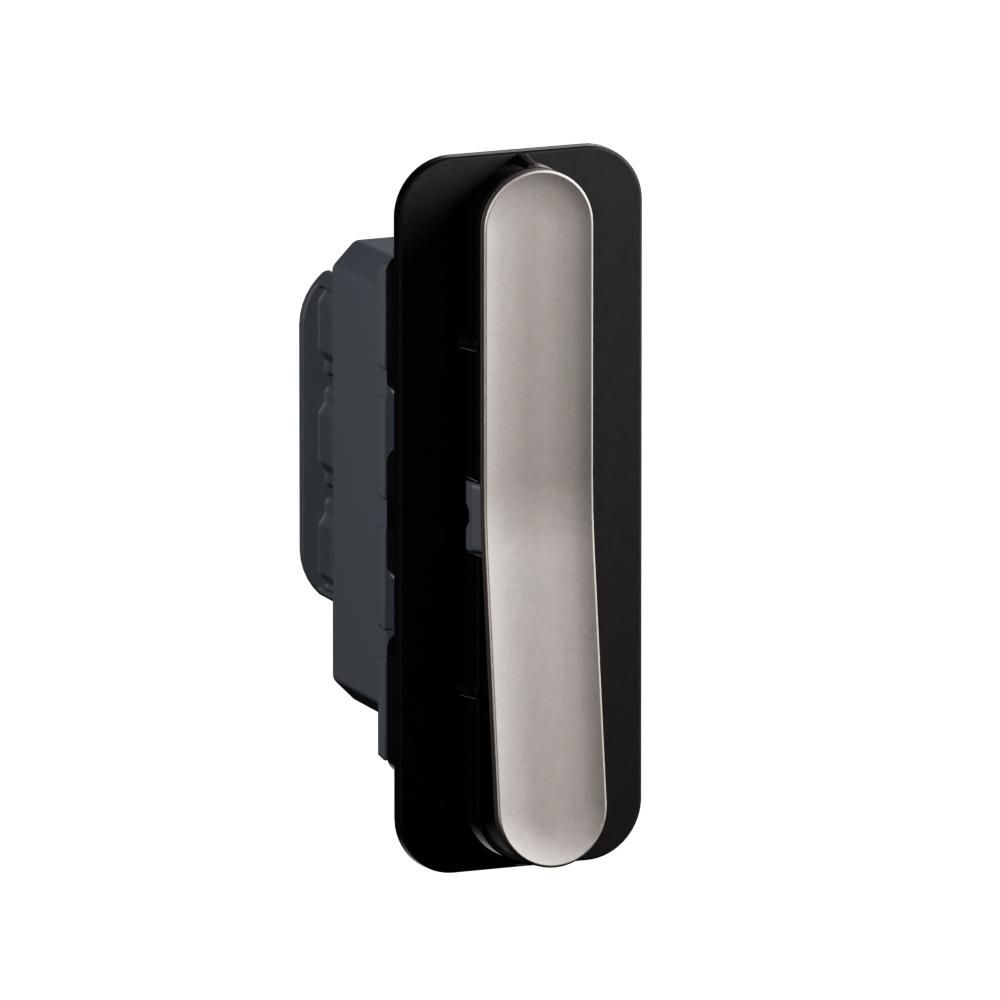

Arteor Advance - 1 module 2 way 20AX single pole slender switch matt titanium - 1M modular rocker - 250V AC

Arteor Advance Legrand

Arteor Advance - 1 module 2 way 20AX single pole slender switch matt titanium - 1M modular rocker - 250V AC

REF. AA22106MT EAN. 3414973144703
Allows control of light from two locations with a 1-module, 2-way, 20AX single-pole rocker switch. Its matt titanium design ensures smooth operation and elegant integration, while screw terminals provide secure wiring.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Allows control of light from two locations with a 1-module, 2-way, 20AX single-pole rocker switch. Its matt titanium design ensures smooth operation and elegant integration, while screw terminals provide secure wiring.

Product characteristics
  • One-module, two-way, 20AX single-pole installation switch for controlling a circuit from two locations
  • Matt titanium lacquered thermoplastic finish for a premium, low-glare aesthetic and enhanced surface durability
  • Rocker mechanism engineered for smooth, precise actuation and reliable two-way switching performance
  • 20AX rating at 250V AC, suitable for switching the full rated current on inductive and resistive SBL loads and LED lighting
  • Slender 1M modular device (22.5x61.8x41.9mm) with screw terminals and snap-in mounting for compact, secure installation in IP20 indoor applications
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 10,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch
  • Titanium with a smooth matte aspect
  • The slender format offers a unique ergonomics with a low angle of 3.5° for optimal and elegant integration in the environment

Technical characteristics

Wiring system Two-way switch
Method of operation Rocker/button
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 1
Push button switch No
Number of rockers 1
Mounting method Module frame
Type of fastening Engage (snap)
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Titanium
RAL-number (similar) 9003
Colour of switch operator Titanium
Label space/information surface No
Lighting No
Function lighting Other
Type of lighting Other
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK02
Nominal voltage 250 V
Rated current 20 A
Switching current for fluorescent lamps 20 AX
Monitoring contact No
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 22.5 mm
Device height 61.8 mm
Device depth 41.9 mm
Built-in depth 31.5 mm
Min. depth of built-in installation box 45 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) 0-70 °C
Voltage type AC
Frequency (Min-Max) 50 -60 Hz
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
Cable nature for connection Flexible or rigid
