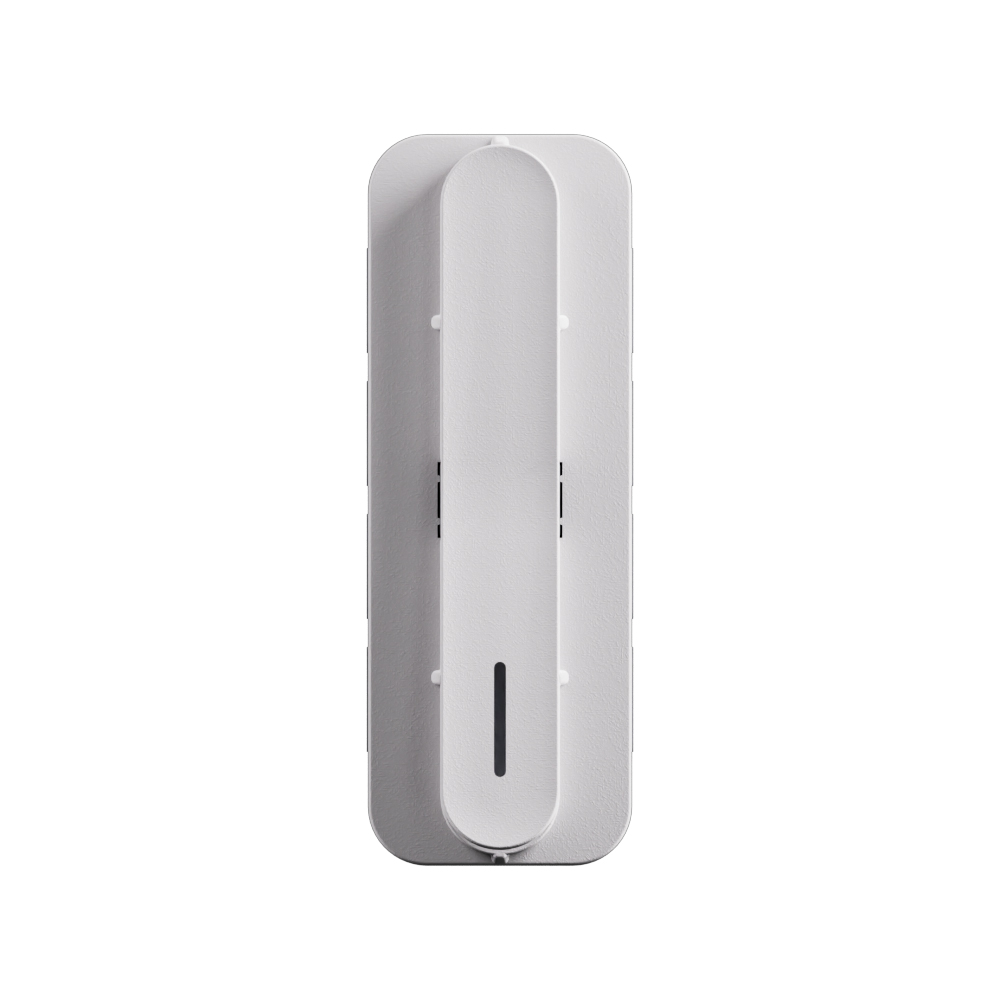

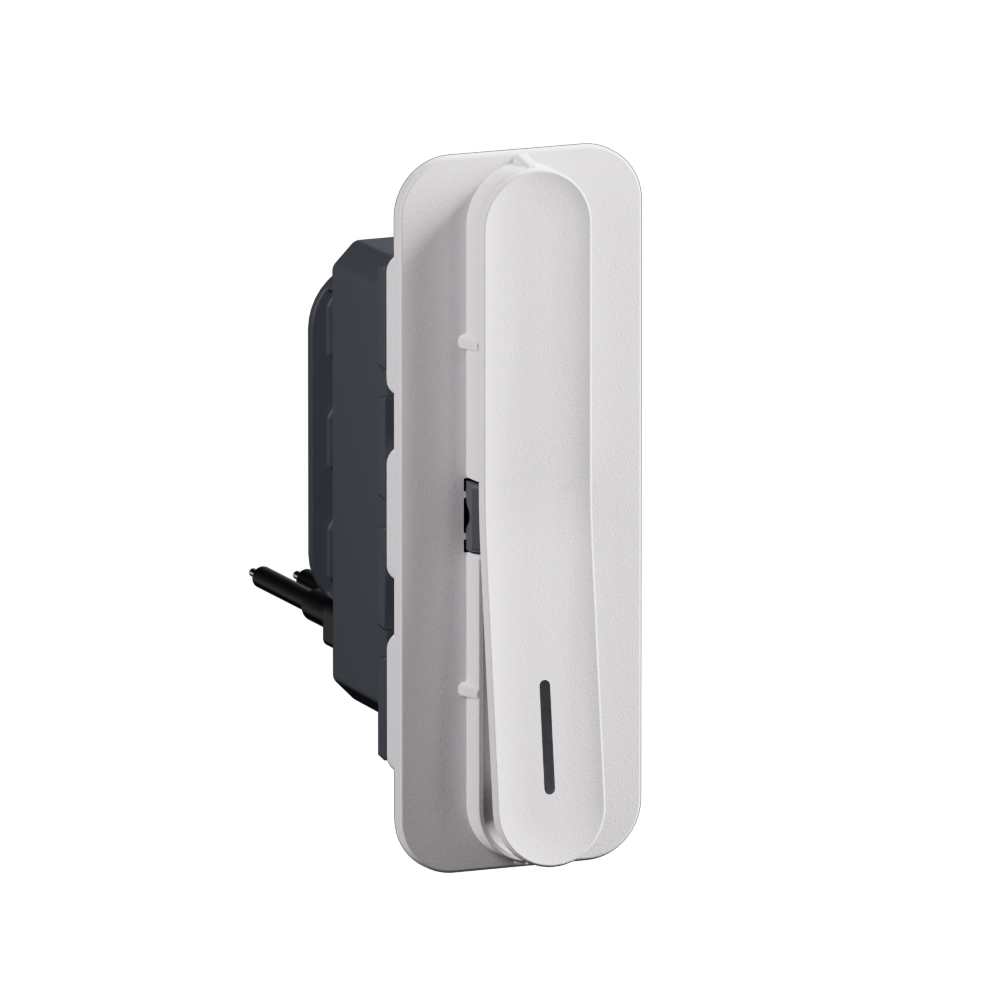

Arteor Advance - 1 module 2 way 16AX slim switch with indicator matt white - 1M modular two-way - 16AX 250V AC lighting control

Arteor Advance Legrand

Arteor Advance - 1 module 2 way 16AX slim switch with indicator matt white - 1M modular two-way - 16AX 250V AC lighting control

REF. AA22103MW EAN. 3414973144642
Allows control of light from two locations with a 1 module, 2 way, 16AX slender switch. Matt white thermoplastic body with screw terminals ensures reliable 250VAC performance. Interchangeable LED indicator or locator enhances visibility.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Allows control of light from two locations with a 1 module, 2 way, 16AX slender switch. Matt white thermoplastic body with screw terminals ensures reliable 250VAC performance. Interchangeable LED indicator or locator enhances visibility.

Product characteristics
  • One-module two-way 16AX installation switch for controlling a circuit from two locations
  • Matt white thermoplastic finish (RAL 9003) with smooth, powdery aspect for discreet integration
  • Interchangeable LED indicator or locator for flexible visual feedback and easy circuit identification
  • Rated 250V AC, 16A/16AX for reliable switching of inductive and resistive SBL loads and LED lighting
  • Slender 1M modular rocker switch with snap-in mounting and screw terminals for secure wiring in IP20 indoor applications
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch & sound
  • Powdery white with a smooth matt aspect
  • The slender format offers a unique ergonomy with a low angle of 3.5° for optimal and elegant integration in the environment

Technical characteristics

Wiring system Two-way switch
Method of operation Rocker/button
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 1
Push button switch No
Number of rockers 1
Mounting method Module frame
Type of fastening Engage (snap)
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Colour of switch operator White
Label space/information surface No
Lighting Optional
Function lighting Control and orientation
Type of lighting LED exchangeable
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK02
Nominal voltage 250 V
Rated current 16 A
Switching current for fluorescent lamps 16 AX
Monitoring contact No
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 22.5 mm
Device height 61.8 mm
Device depth 41.9 mm
Built-in depth 29.85 mm
Min. depth of built-in installation box 45 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) 0-70 °C
Voltage type AC
Frequency (Min-Max) 50 -60 Hz
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
Cable nature for connection Flexible or rigid
