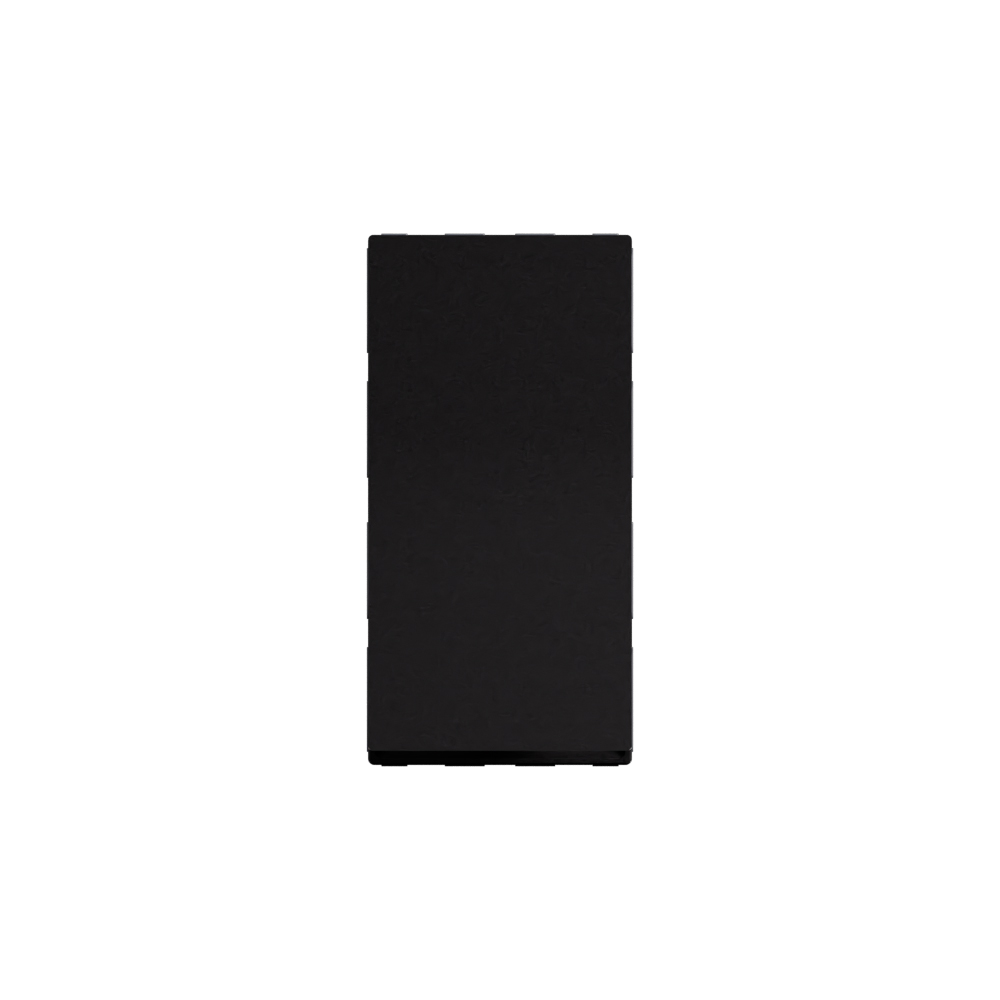

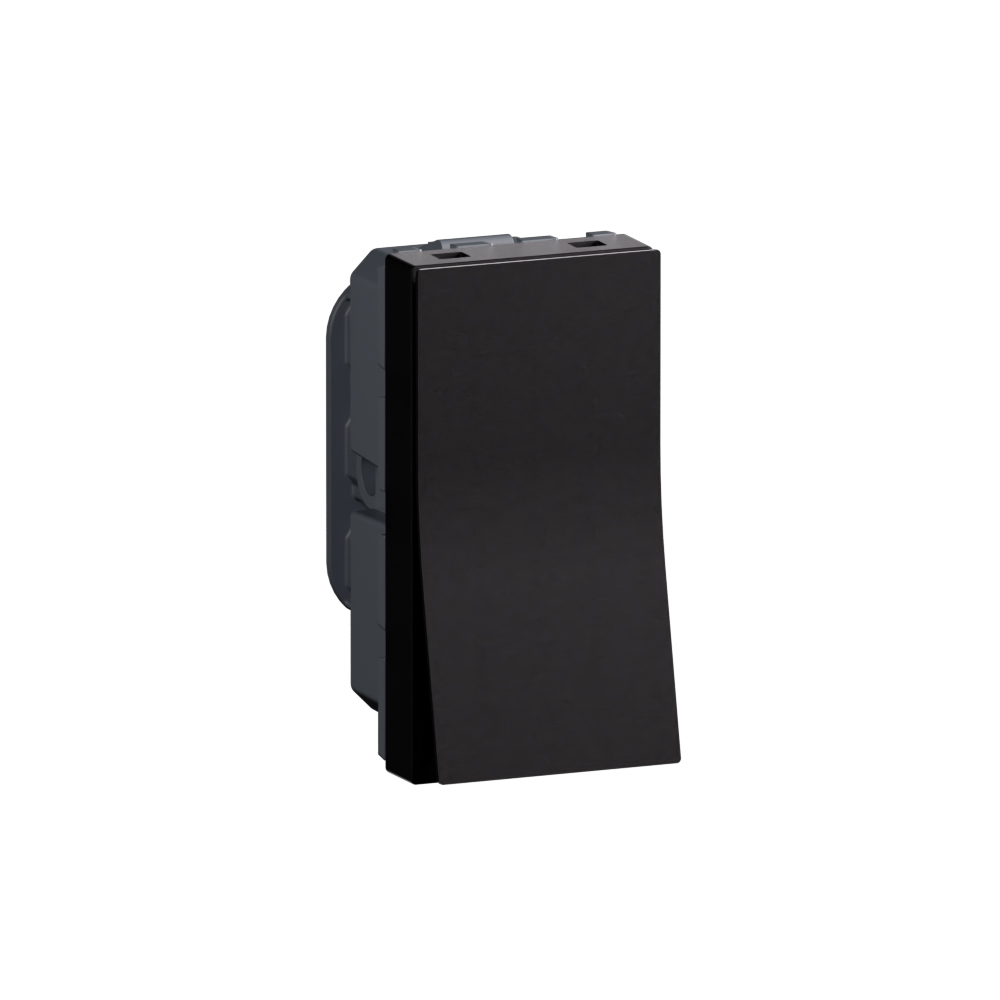

Arteor Advance - 1 module 2 way 16AX single pole switch - 250V AC - Matt deep black thermoplastic - Screw terminals

Arteor Advance Legrand

Arteor Advance - 1 module 2 way 16AX single pole switch - 250V AC - Matt deep black thermoplastic - Screw terminals

REF. AC22101MB EAN. 3414972745567
Allows control of light from two locations with a 1 module, 2 way, 16AX single pole rocker switch. Its matt black thermoplastic body with screw terminals ensures reliable 250V AC performance and easy installation in modular frames.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Allows control of light from two locations with a 1 module, 2 way, 16AX single pole rocker switch. Its matt black thermoplastic body with screw terminals ensures reliable 250V AC performance and easy installation in modular frames.

Product characteristics
  • One-module, two-way, 16AX single-pole switch for controlling a circuit from two locations
  • Matt black thermoplastic finish with deep black, smooth aspect for a discreet technical aesthetic
  • Rocker mechanism engineered for smooth operation with subtle touch and sound feedback
  • Rated 250V AC, 16A/16AX for reliable switching of full rated current on inductive and resistive SBL loads and LED lighting
  • Screw-type terminals for secure connection of 0.75mm² to 1.5mm² flexible or rigid conductors, IP20 indoor use, modular 1M format for Arteor Advance frames
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch & sound
  • Deep black with a smooth matt aspect
  • The square format enables modularity for lighting control

Technical characteristics

Wiring system Two-way switch
Method of operation Rocker/button
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 1
Push button switch No
Number of rockers 1
Mounting method Module frame
Type of fastening Engage (snap)
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Black
Colour of switch operator Black
Label space/information surface No
Lighting No
Function lighting Other
Type of lighting Other
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK02
Nominal voltage 250 V
Rated current 16 A
Switching current for fluorescent lamps 16 AX
Monitoring contact No
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 22.5 mm
Device height 45.1 mm
Device depth 38.1 mm
Built-in depth 25 mm
Min. depth of built-in installation box 45 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) 0-70 °C
Voltage type AC
Frequency (Min-Max) 50 -60 Hz
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
Cable nature for connection Flexible or rigid
