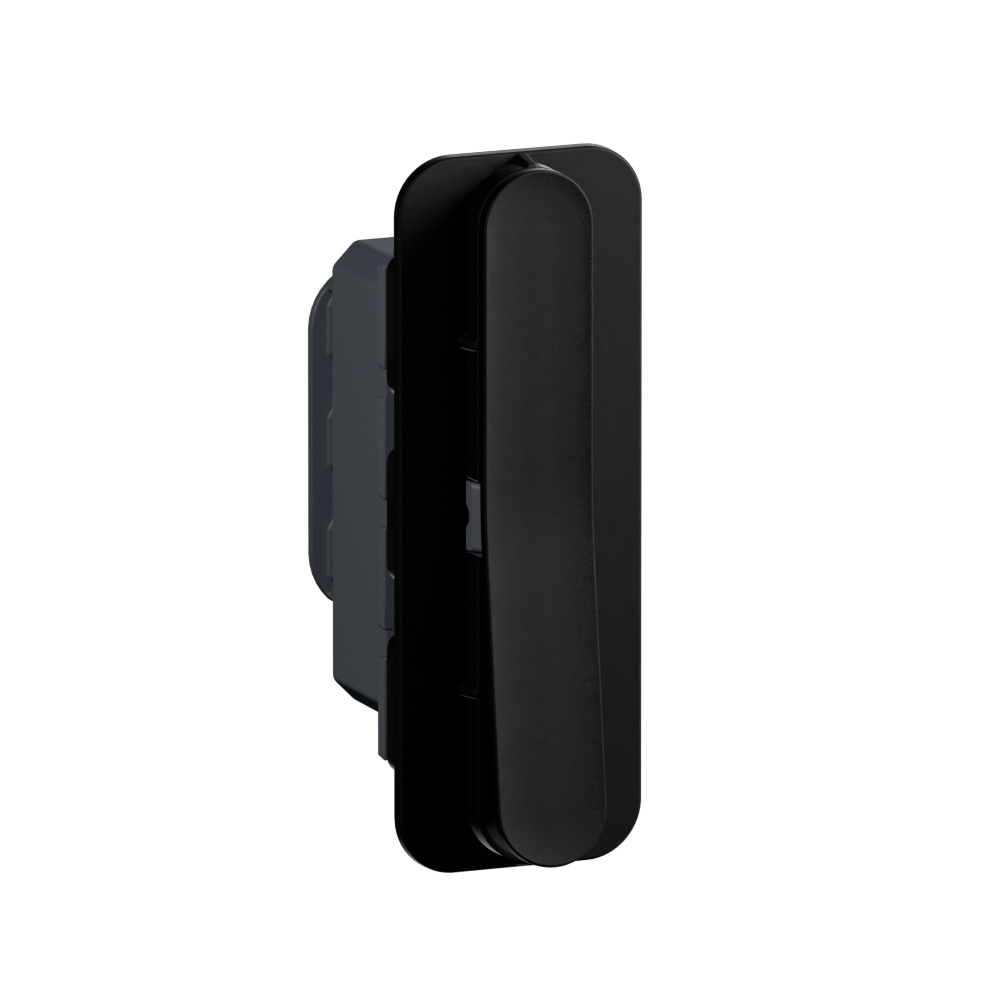

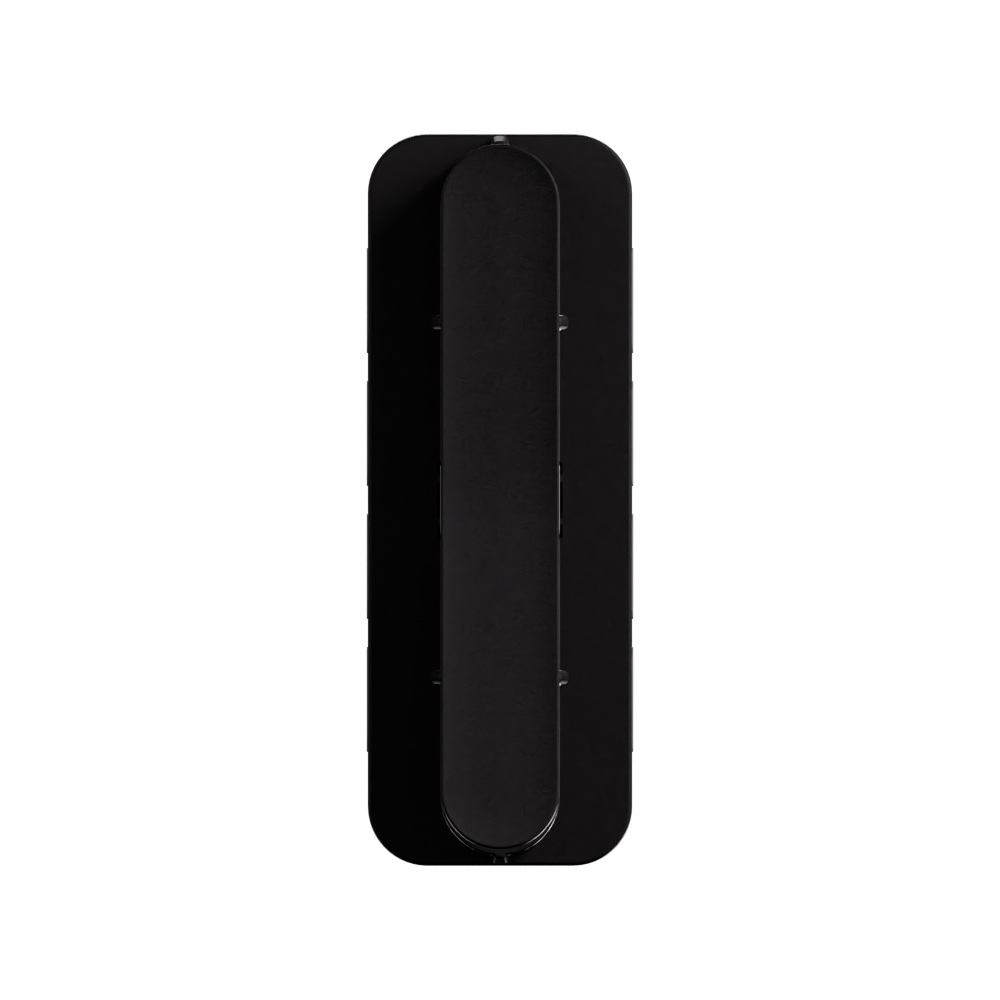

Arteor Advance - 1 module 2 way 16AX single pole slender switch matt black - 250V AC 16AX - Matt black thermoplastic IP20

Arteor Advance Legrand

Arteor Advance - 1 module 2 way 16AX single pole slender switch matt black - 250V AC 16AX - Matt black thermoplastic IP20

REF. AA22101MB EAN. 3414972725361
Allows control of light from two locations with a 1-module, 2-way 16AX single-pole switch. Its matt black design ensures smooth rocker operation. Screw-type terminals provide secure wiring.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Allows control of light from two locations with a 1-module, 2-way 16AX single-pole switch. Its matt black design ensures smooth rocker operation. Screw-type terminals provide secure wiring.

Product characteristics
  • One-module, two-way 16AX single-pole installation switch for controlling a circuit from two locations
  • Matt black thermoplastic body with lacquered, smooth matt finish for a deep black, low-reflection aesthetic
  • Rocker/button actuator engineered for smooth operation with subtle touch and sound feedback
  • Rated 250V AC, 16A/16AX for reliable switching of full rated current on inductive and resistive SBL loads and LED lighting
  • Slender 1M modular device (22.5x61.8x41.9mm, IP20, IK02) with snap-in mounting and screw terminals for secure wiring of 0.75mm² to 1.5mm² flexible or rigid conductors
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch & sound
  • Deep black with a smooth matt aspect
  • The slender format offers a unique ergonomy with a low angle of 3.5° for optimal and elegant integration in the environment

Technical characteristics

Wiring system Two-way switch
Method of operation Rocker/button
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 1
Push button switch No
Number of rockers 1
Mounting method Module frame
Type of fastening Engage (snap)
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Black
Colour of switch operator Black
Label space/information surface No
Lighting No
Function lighting Other
Type of lighting Other
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK02
Nominal voltage 250 V
Rated current 16 A
Switching current for fluorescent lamps 16 AX
Monitoring contact No
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 22.5 mm
Device height 61.8 mm
Device depth 41.9 mm
Built-in depth 29.85 mm
Min. depth of built-in installation box 45 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) 0-70 °C
Voltage type AC
Frequency (Min-Max) 50 -60 Hz
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
Cable nature for connection Flexible or rigid
