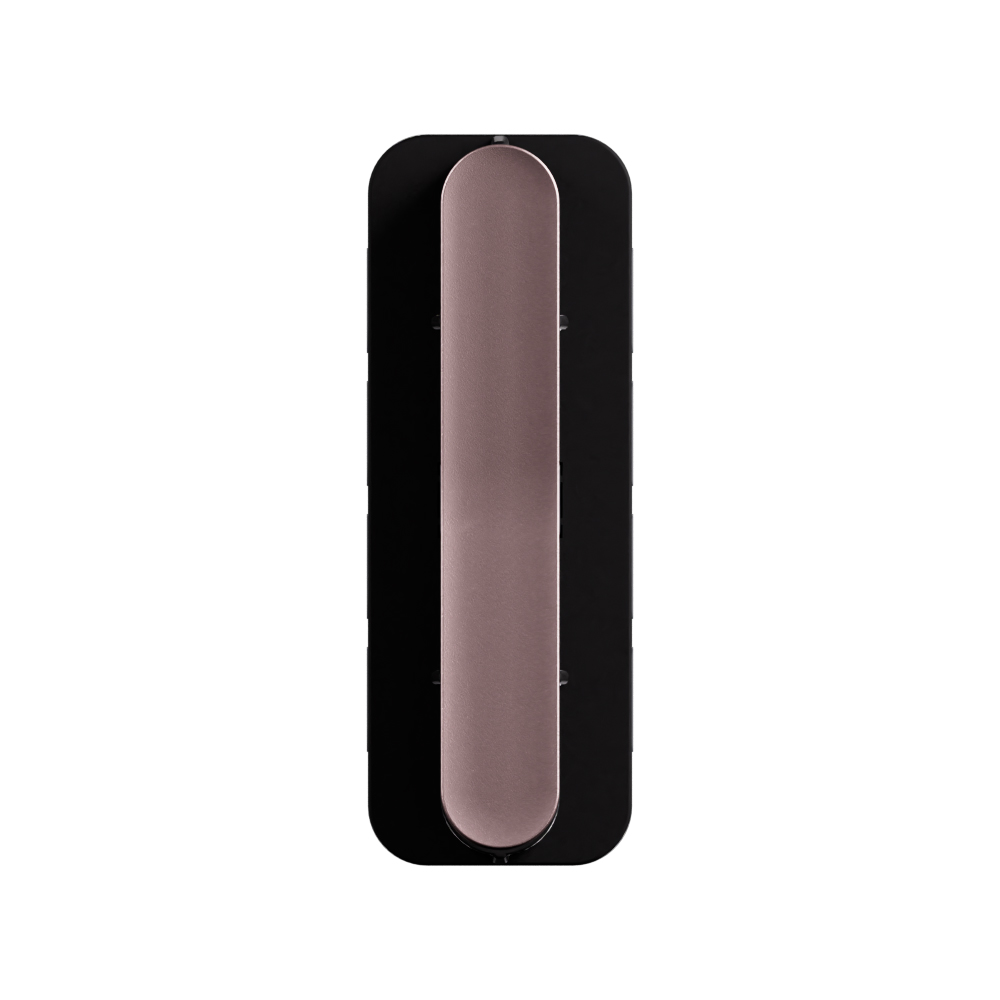

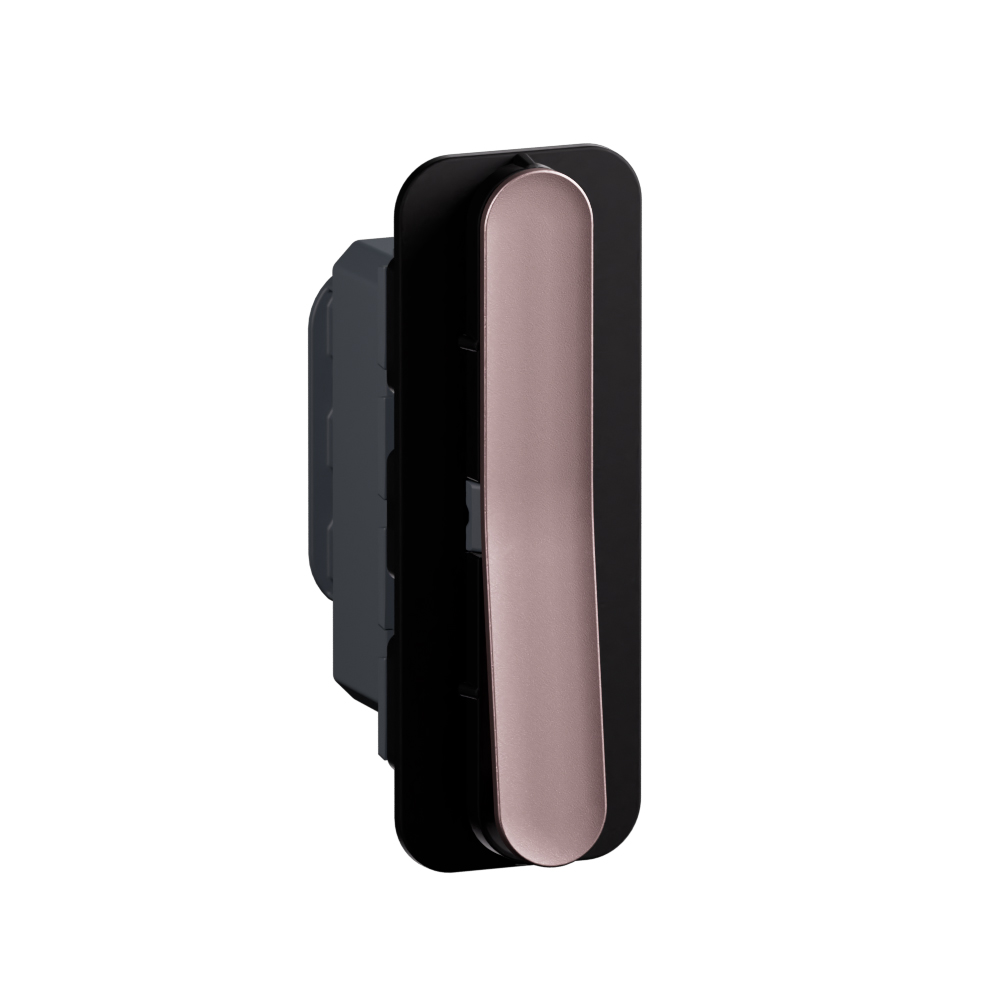

Arteor Advance - 1 module 2 way 16AX single pole slender switch - 1M modular rocker, 250V AC, 16AX - Screw terminals, IP20, slim design

Arteor Advance Legrand

Arteor Advance - 1 module 2 way 16AX single pole slender switch - 1M modular rocker, 250V AC, 16AX - Screw terminals, IP20, slim design

REF. AA22101RS EAN. 3414972919616
Allows control of light from two locations with a 1 module, 2 way, 16AX single pole rocker switch. Its slender format and rose finish ensure ergonomic operation, with screw-type terminals for secure wiring for 250V AC, 16A circuits.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Allows control of light from two locations with a 1 module, 2 way, 16AX single pole rocker switch. Its slender format and rose finish ensure ergonomic operation, with screw-type terminals for secure wiring for 250V AC, 16A circuits.

Product characteristics
  • One-module, two-way 16AX single-pole installation switch for controlling a circuit from two locations
  • Rose slender finish for discreet visual integration in Arteor Advance interiors
  • Rocker/button actuator engineered for smooth, low-force operation with subtle touch and sound feedback
  • Rated 250V AC, 16A/16AX for reliable switching of inductive and resistive SBL loads and LED lighting
  • Modular 1M thermoplastic, halogen-free IP20 device with screw terminals (0.75mm² to 1.5mm²) for secure wiring in indoor module frames
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch & sound
  • Pink finish evoking subtle blush effect
  • The slender format offers a unique ergonomy with a low angle of 3.5° for optimal and elegant integration in the environment

Technical characteristics

Wiring system Two-way switch
Method of operation Rocker/button
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 1
Push button switch No
Number of rockers 1
Mounting method Module frame
Type of fastening Engage (snap)
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Other
Colour of switch operator Other
Label space/information surface No
Lighting No
Function lighting Other
Type of lighting Other
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK02
Nominal voltage 250 V
Rated current 16 A
Switching current for fluorescent lamps 16 AX
Monitoring contact No
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 22.5 mm
Device height 61.8 mm
Device depth 41.9 mm
Built-in depth 29.85 mm
Min. depth of built-in installation box 45 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) 0-70 °C
Voltage type AC
Frequency (Min-Max) 50 -60 Hz
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
Cable nature for connection Flexible or rigid
