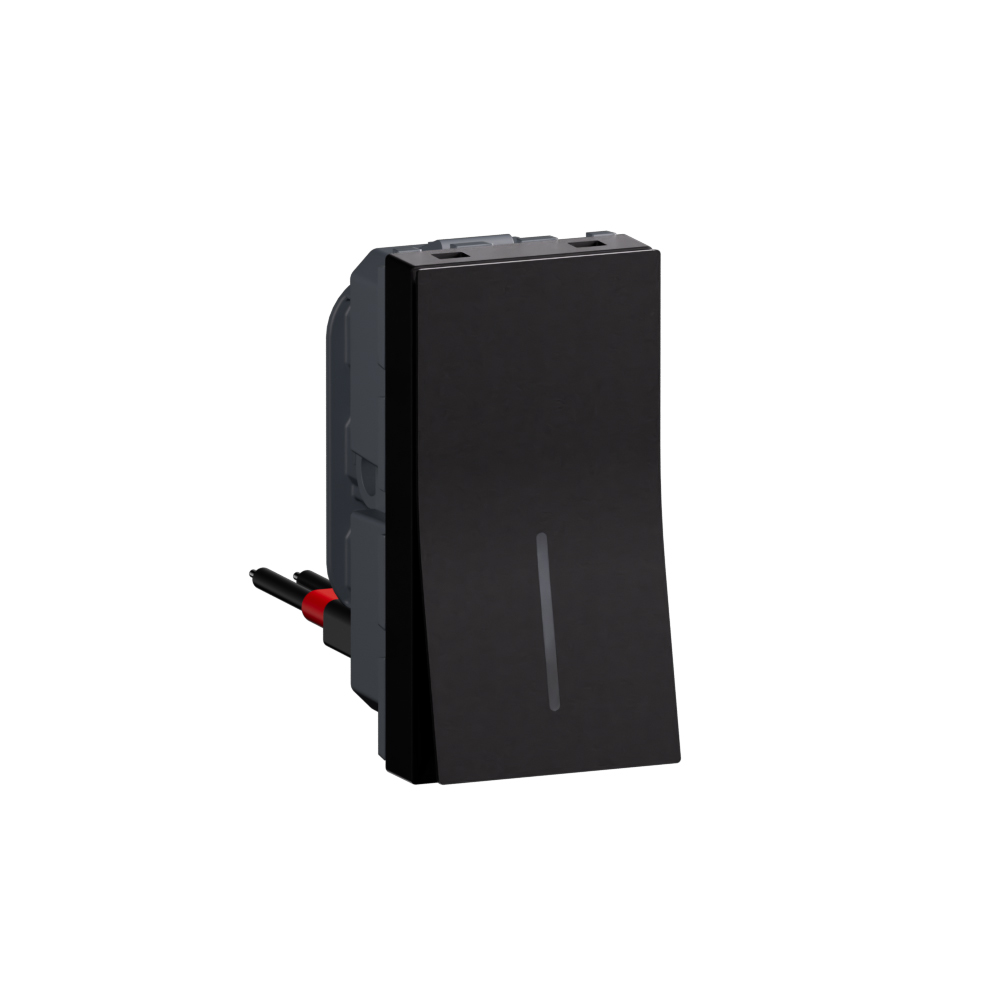

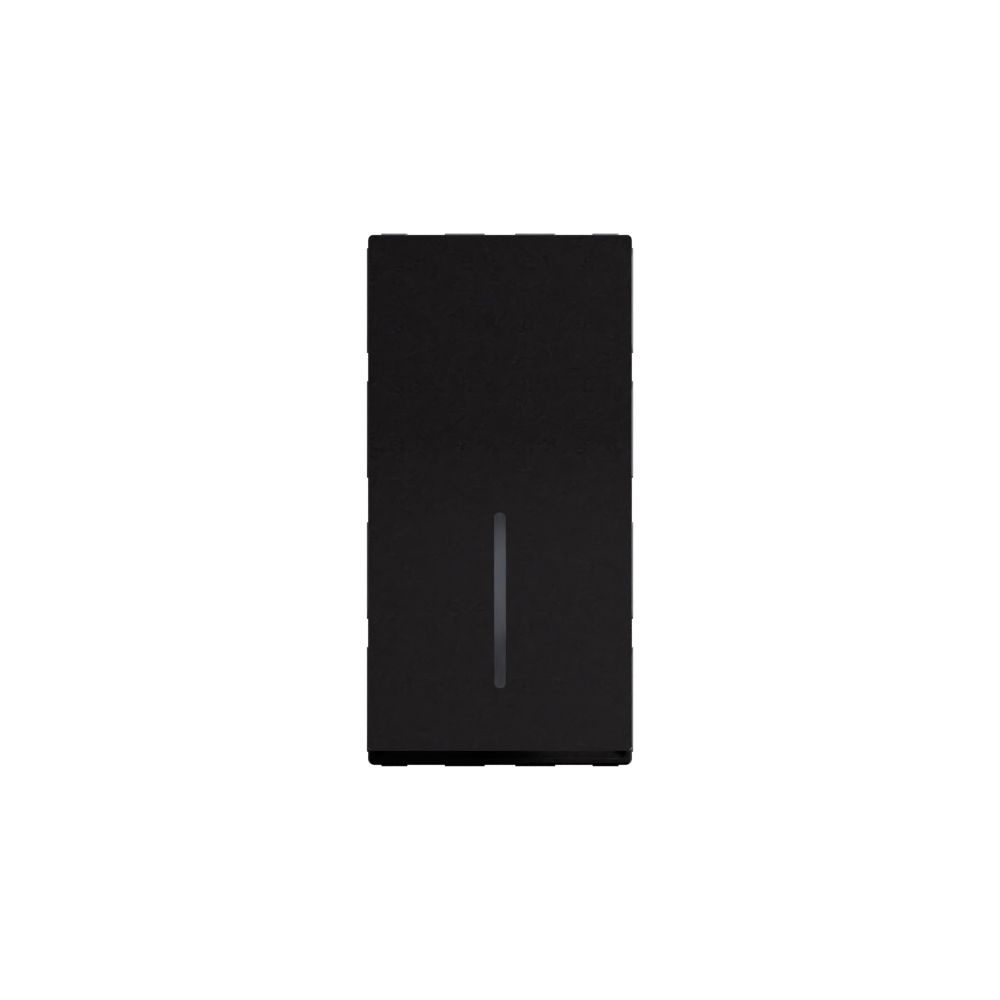

Arteor Advance - 1 module 2 way 10AX single pole switch with LED indicator or locator - 230V AC 10AX - Matt black modular rocker

Arteor Advance Legrand

Arteor Advance - 1 module 2 way 10AX single pole switch with LED indicator or locator - 230V AC 10AX - Matt black modular rocker

REF. AC22104MB EAN. 3414972746076
Offers smooth, quiet light control. This 1-module, 2-way 10AX rocker switch with LED indicator ensures reliable 230V AC performance. Its matt black thermoplastic finish and screw-type terminals deliver robust installation.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Offers smooth, quiet light control. This 1-module, 2-way 10AX rocker switch with LED indicator ensures reliable 230V AC performance. Its matt black thermoplastic finish and screw-type terminals deliver robust installation.

Product characteristics
  • One-module, two-way 10AX single-pole switch for flexible lighting control in modular installations
  • Matt black thermoplastic front with lacquered, smooth finish for a deep, low-glare aesthetic
  • Interchangeable LED indicator or locator option for clear circuit status or easy switch location in low light
  • Rated 10AX at 230V AC, suitable for switching the full rated current on inductive and resistive SBL loads and LED circuits
  • Compact 1M rocker module (22.5x45x38mm) with snap-in mounting and screw terminals (0.75mm² to 1.5mm²), IP20, for indoor use
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch & sound
  • Deep black with a smooth matt aspect
  • The square format enables modularity for lighting control

Technical characteristics

Wiring system Two-way switch
Method of operation Rocker/button
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 1
Push button switch No
Number of rockers 1
Mounting method Module frame
Type of fastening Engage (snap)
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free No
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Black
Colour of switch operator Black
Label space/information surface No
Lighting Yes
Function lighting Control and orientation
Type of lighting LED exchangeable
Suitable for degree of protection (IP) IP20
Nominal voltage 230 V
Rated current 10 A
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 22.5 mm
Device height 45 mm
Device depth 38 mm
Min. depth of built-in installation box 25 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
Voltage type AC
Mandatory neutral No
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
