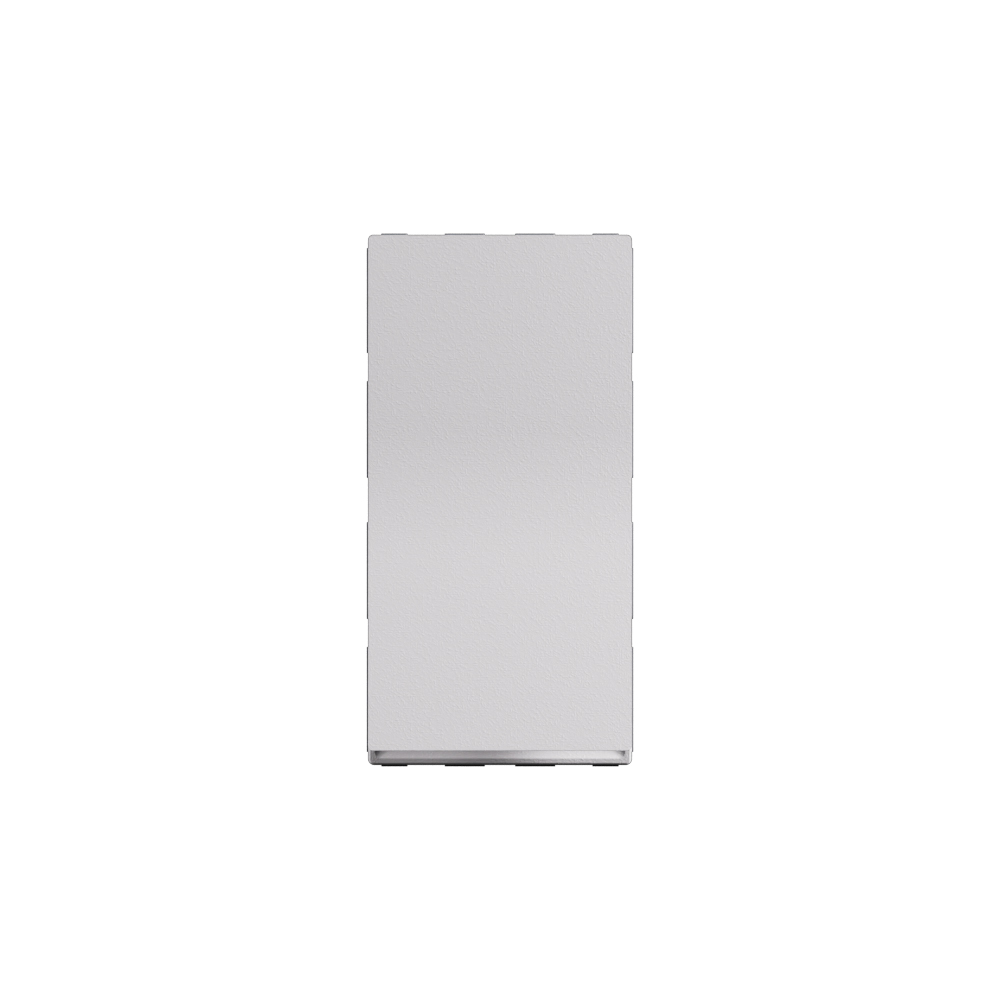

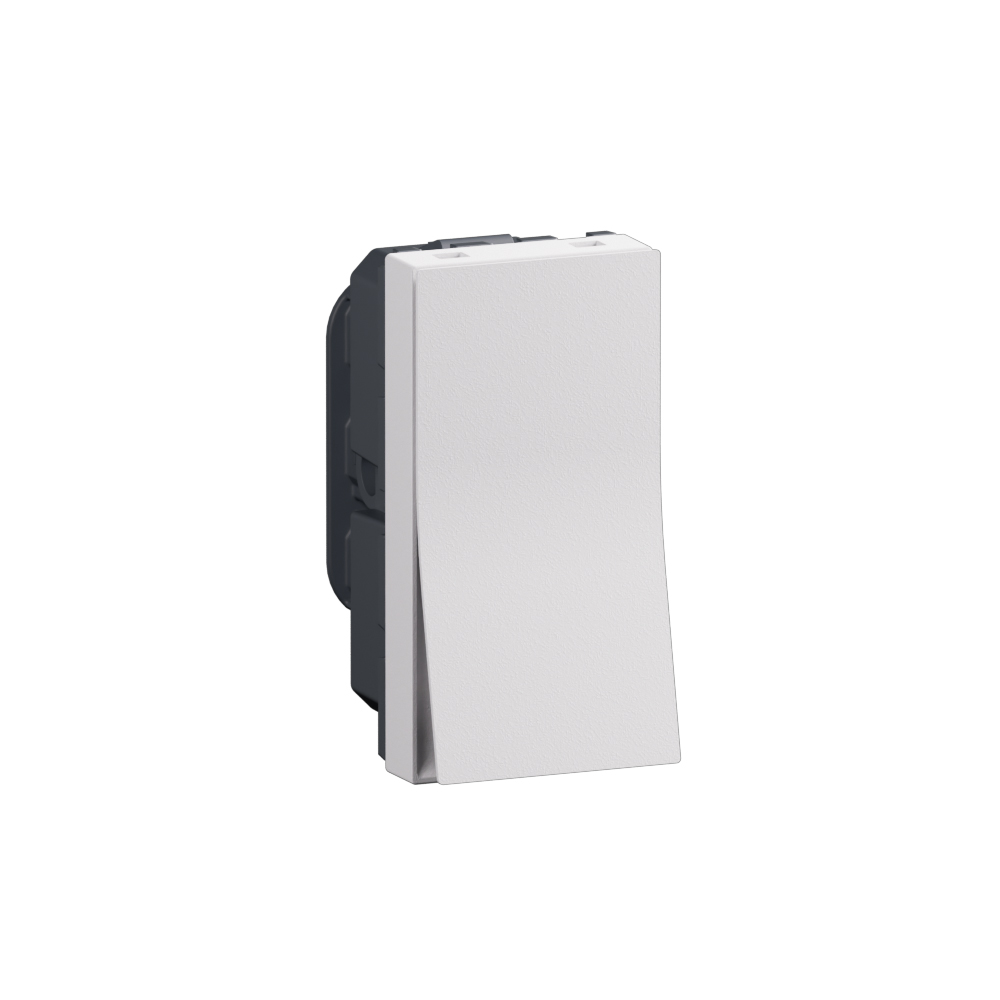

Arteor Advance - 1 module 2 way 10AX single pole switch matt white - 1M modular rocker - 230V AC 10AX lighting control for indoor use

Arteor Advance Legrand

Arteor Advance - 1 module 2 way 10AX single pole switch matt white - 1M modular rocker - 230V AC 10AX lighting control for indoor use

REF. AC22105MW EAN. 3414972746229
Offers gentle touch for effortless light control with smooth, quiet operation. This 1 module, 2 way, 10AX single pole matt white rocker switch ensures reliable 230V AC performance with screw-type terminals for secure indoor lighting wiring
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Offers gentle touch for effortless light control with smooth, quiet operation. This 1 module, 2 way, 10AX single pole matt white rocker switch ensures reliable 230V AC performance with screw-type terminals for secure indoor lighting wiring

Product characteristics
  • One-module, two-way, 10AX single-pole switch for flexible lighting control circuits
  • Matt white thermoplastic finish (similar to RAL 9003) for a discreet, modern aesthetic
  • Rocker mechanism engineered for smooth, quiet actuation and precise switching feedback
  • Rated 10AX at 230V AC, suitable for switching the full rated current on inductive and resistive SBL loads and LED lighting
  • Modular 1M device with screw terminals (0.75mm² to 1.5mm²) and snap-in mounting for fast, secure installation in Arteor Advance systems
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch & sound
  • Powdery white with a smooth matt aspect
  • The square format enables modularity for lighting control

Technical characteristics

Wiring system Two-way switch
Method of operation Rocker/button
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 1
Push button switch No
Number of rockers 1
Mounting method Module frame
Type of fastening Engage (snap)
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free No
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Colour of switch operator White
Label space/information surface No
Lighting No
Type of lighting Other
Suitable for degree of protection (IP) IP20
Nominal voltage 230 V
Rated current 10 A
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 22.5 mm
Device height 45 mm
Device depth 38 mm
Min. depth of built-in installation box 25 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
Voltage type AC
Mandatory neutral No
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
