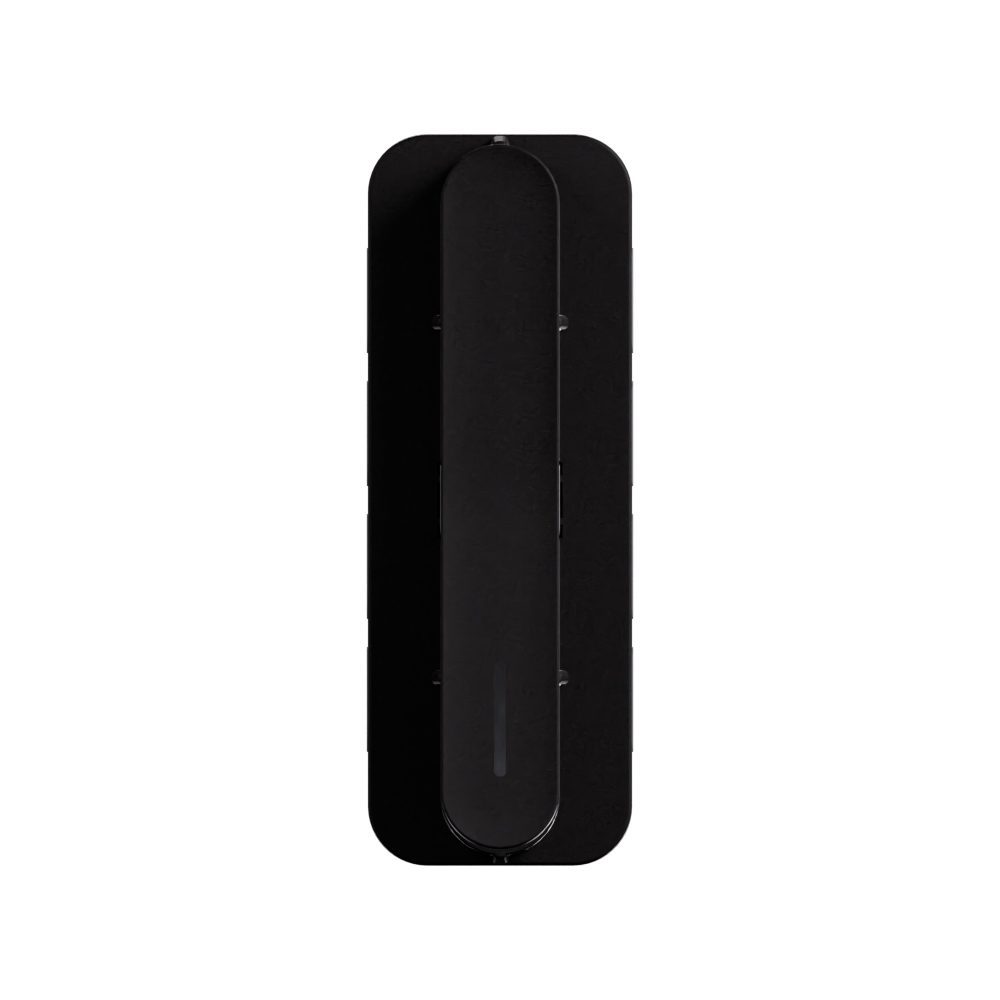

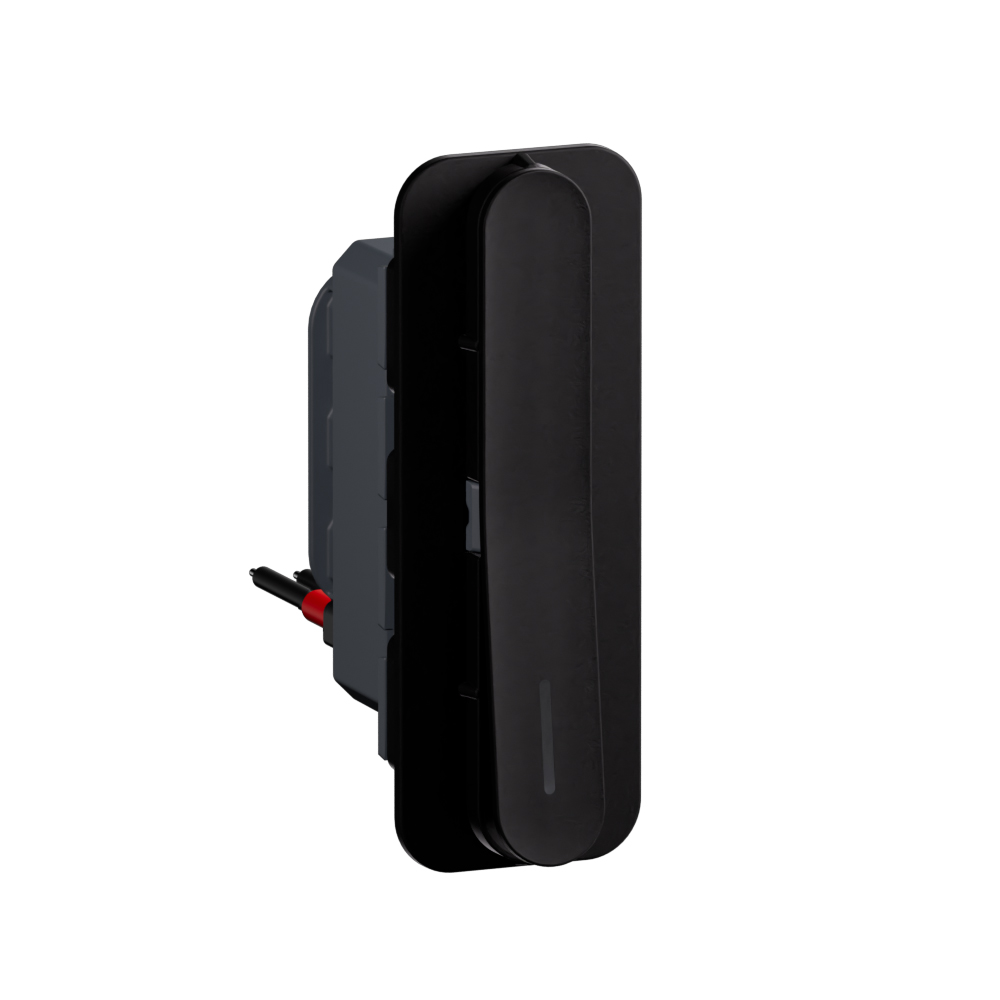

Arteor Advance - 1 module 2 way 10AX single pole slender switch with indicator matt black - 230V AC - IP20 indoor use - Screw terminals

Arteor Advance Legrand

Arteor Advance - 1 module 2 way 10AX single pole slender switch with indicator matt black - 230V AC - IP20 indoor use - Screw terminals

REF. AA22104MB EAN. 3414972726054
Offers a gentle touch for effortless light control with smooth, quiet operation. Its 1-module, 2-way 10AX design with LED indicator or locator ensures precise switching of inductive, resistive, and LED loads. Deep matt black finish.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Offers a gentle touch for effortless light control with smooth, quiet operation. Its 1-module, 2-way 10AX design with LED indicator or locator ensures precise switching of inductive, resistive, and LED loads. Deep matt black finish.

Product characteristics
  • One-module, two-way 10AX single-pole switch for domestic lighting control
  • Matt black lacquered thermoplastic finish for a deep, low-gloss technical aesthetic
  • Interchangeable LED indicator or locator for clear visual status or easy switch location in the dark
  • 10AX, 230V AC rating suitable for switching the full rated current on inductive and resistive SBL loads and LED circuits
  • Modular rocker switch with screw-type terminals and snap-in mounting for secure, efficient installation in Arteor Advance frames
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch & sound
  • Deep black with a smooth matt aspect
  • The slender format offers a unique ergonomy with a low angle of 3.5° for optimal and elegant integration in the environment

Technical characteristics

Wiring system Two-way switch
Method of operation Rocker/button
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 1
Push button switch No
Number of rockers 2
Mounting method Module frame
Type of fastening Engage (snap)
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free No
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Black
Colour of switch operator Black
Label space/information surface No
Lighting Yes
Function lighting Control and orientation
Type of lighting LED exchangeable
Suitable for degree of protection (IP) IP20
Nominal voltage 230 V
Rated current 10 A
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 45 mm
Device height 62 mm
Device depth 42 mm
Min. depth of built-in installation box 30 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
Voltage type AC
Mandatory neutral No
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
