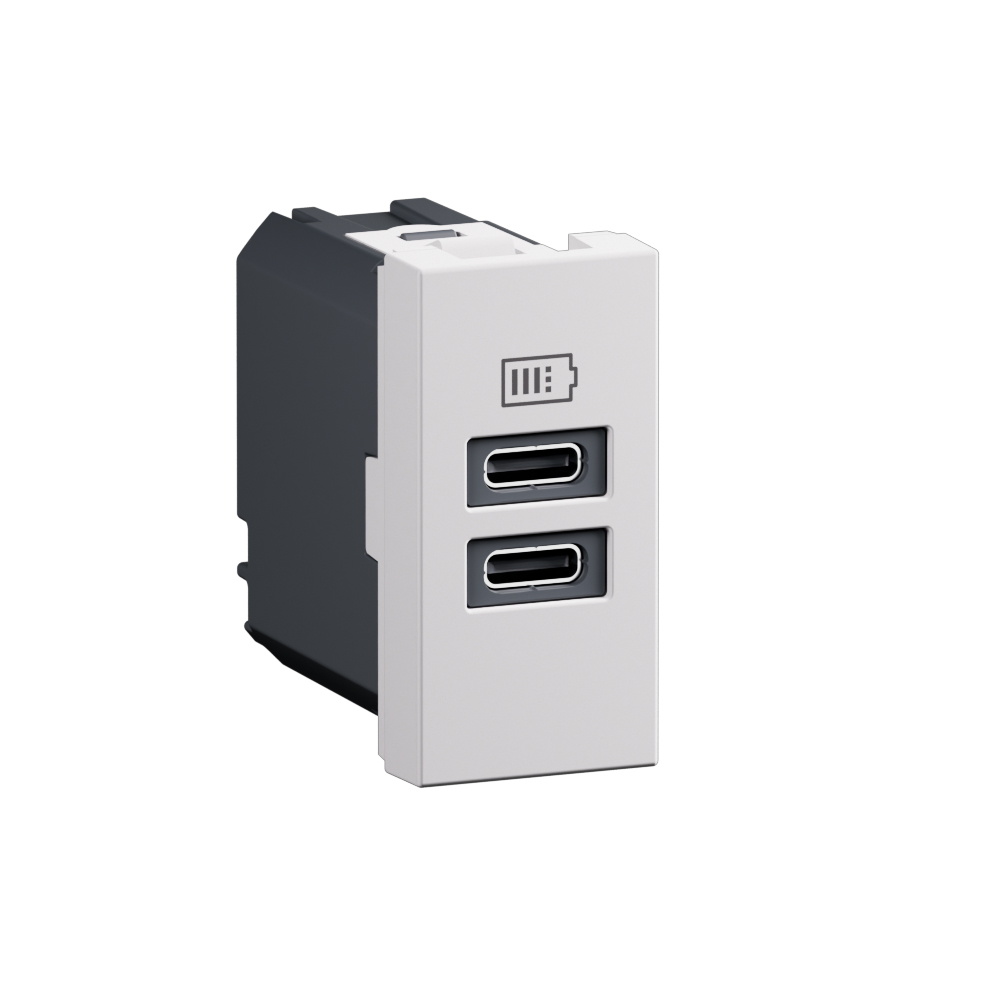

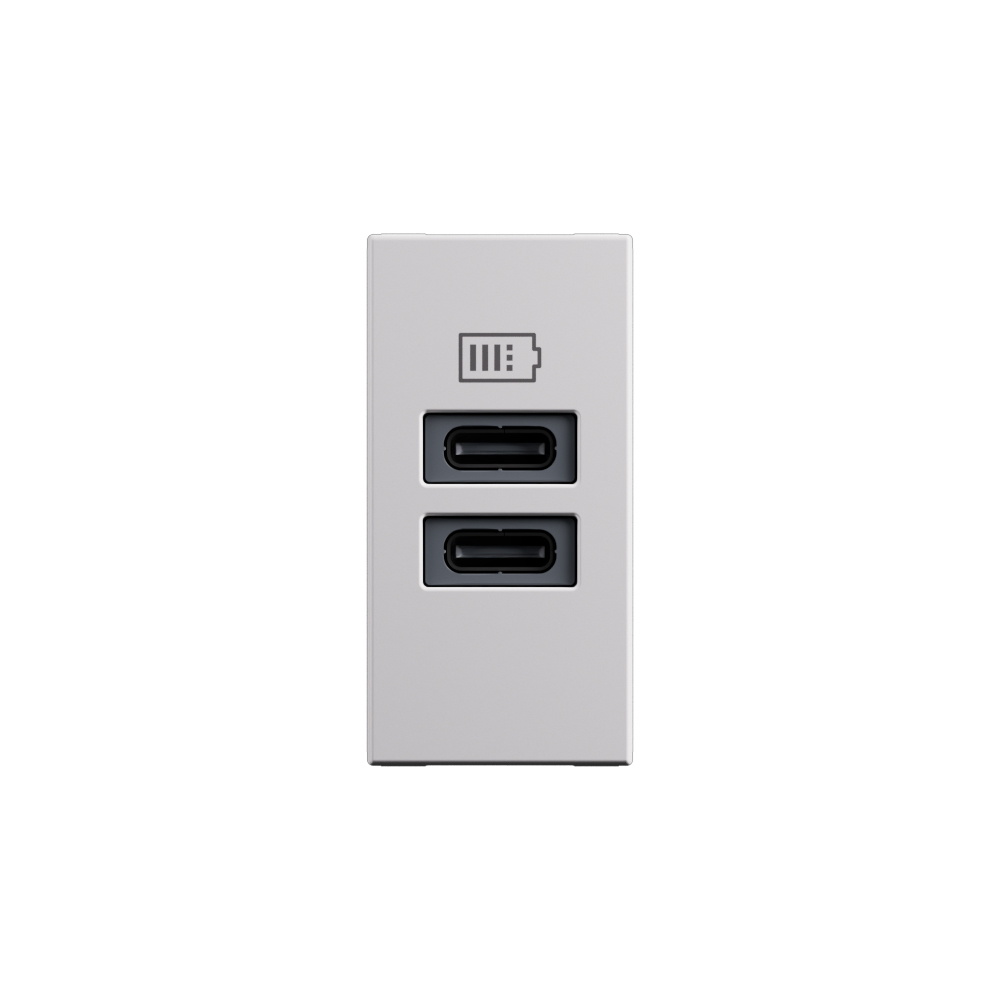

Arteor Advance - 1 module 2 USB C+C 15W charger matt white - Dual USB-C 15W fast charging - 100-240V AC flush-mounted module

Arteor Advance Legrand

Arteor Advance - 1 module 2 USB C+C 15W charger matt white - Dual USB-C 15W fast charging - 100-240V AC flush-mounted module

REF. AC3412MW EAN. 3414972761147
Allows optimal charging of devices with dual USB-C outputs delivering 15W total. Its compact 1-module, flush-mounted design with matt white finish integrates into Arteor Advance installations. Standby consumption <0.1W
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Allows optimal charging of devices with dual USB-C outputs delivering 15W total. Its compact 1-module, flush-mounted design with matt white finish integrates into Arteor Advance installations. Standby consumption <0.1W

Product characteristics
  • 1-module flush-mounted USB power supply with dual USB-C outputs delivering a combined 15W for efficient device charging
  • Matt white finish (RAL 9003) for seamless integration with Arteor Advance wiring devices and modern interiors
  • Screw-type, clearly marked terminals (L, N) with 1.5mm² to 2.5mm² capacity for fast, error-free wiring of flexible or rigid cables
  • Ultra-low standby power consumption
  • Wide-range 100V to 240V AC, 50Hz to 60Hz input with IP40/IK04 ratings and compact 1M form factor (22.5x45x41mm) for indoor wall boxes ≥40mm depth
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • Fitted with safety shutters to maximise protection
Avantages
  • All-in-one convenience for powering and charging devices.
  • Powdery white with a smooth matte finish
  • Compact design efficiently integrating USB ports

Technical characteristics

Number of modules (module system) 1
Model Other
Number of ports USB-A 0
Number of empty module positions 2
Operating voltage (Min-Max) 100-240 V
Frequency (Min-Max) 50-60 Hz
Max. output current 3000 mA
Output voltage (Min-Max) 5-5 V
Power consumption 0.083 W
Connection type Screwed terminal
Mounting method Flush-mounted
Colour White
RAL-number 9003
Device width 22.5 mm
Device height 45 mm
Device depth 41 mm
Min. depth of built-in installation box 40 mm
Suitable for degree of protection (IP) IP40
degree of impact strength (IK) IK04
Antimicrobial treatment No
Wireless No
Built-in depth 32.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -20-70 °C
Voltage type AC
Power Delivery No
USB Output Power 15
Supply current (Min-Max) 0.5-0.5 A
Mandatory neutral Yes
Terminal marking indication Yes
Stress test conformity (1000V) No
Halogen free Yes
Number of terminals 2
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1.5-2.5 mm²
