Arteor Advance - 1 module 2 female RCA socket matt black - Stereo audio link - Preterminated 15cm cord

Arteor Advance Legrand

Arteor Advance - 1 module 2 female RCA socket matt black - Stereo audio link - Preterminated 15cm cord

REF. AC4440MB EAN. 3414972766906

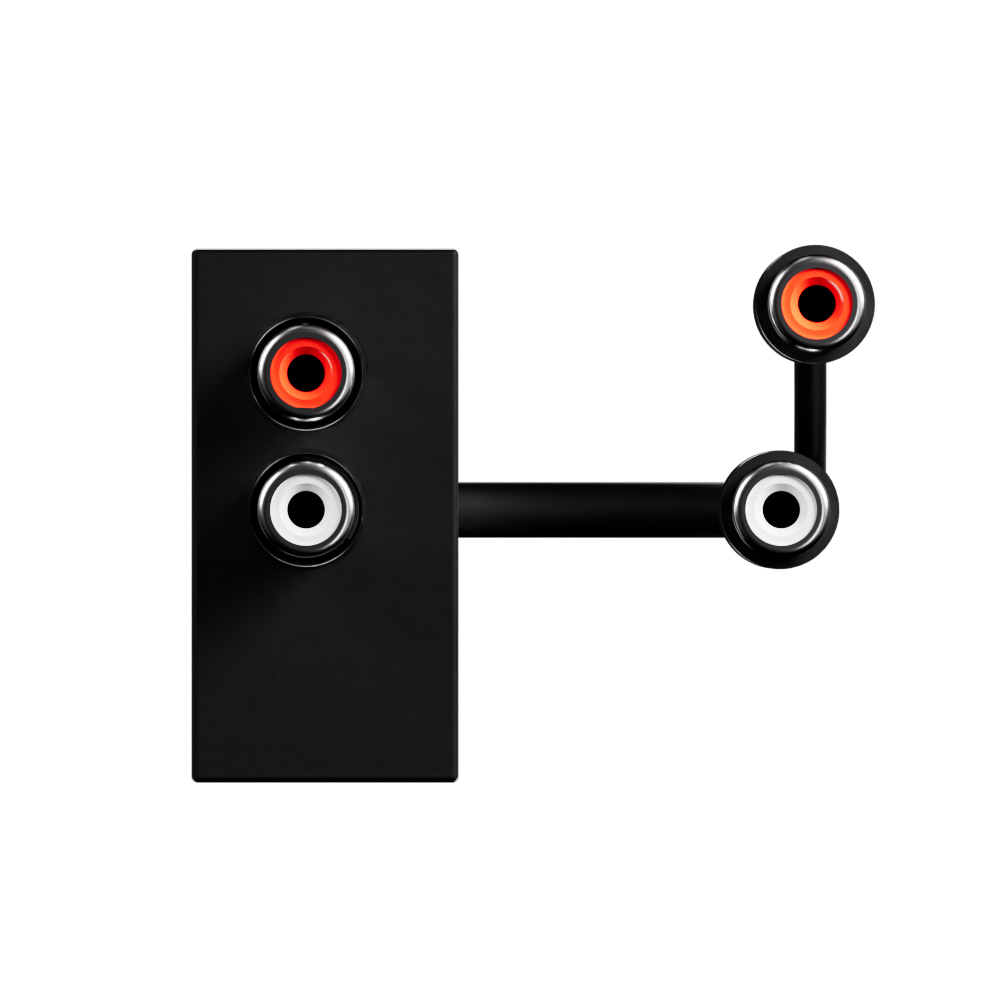

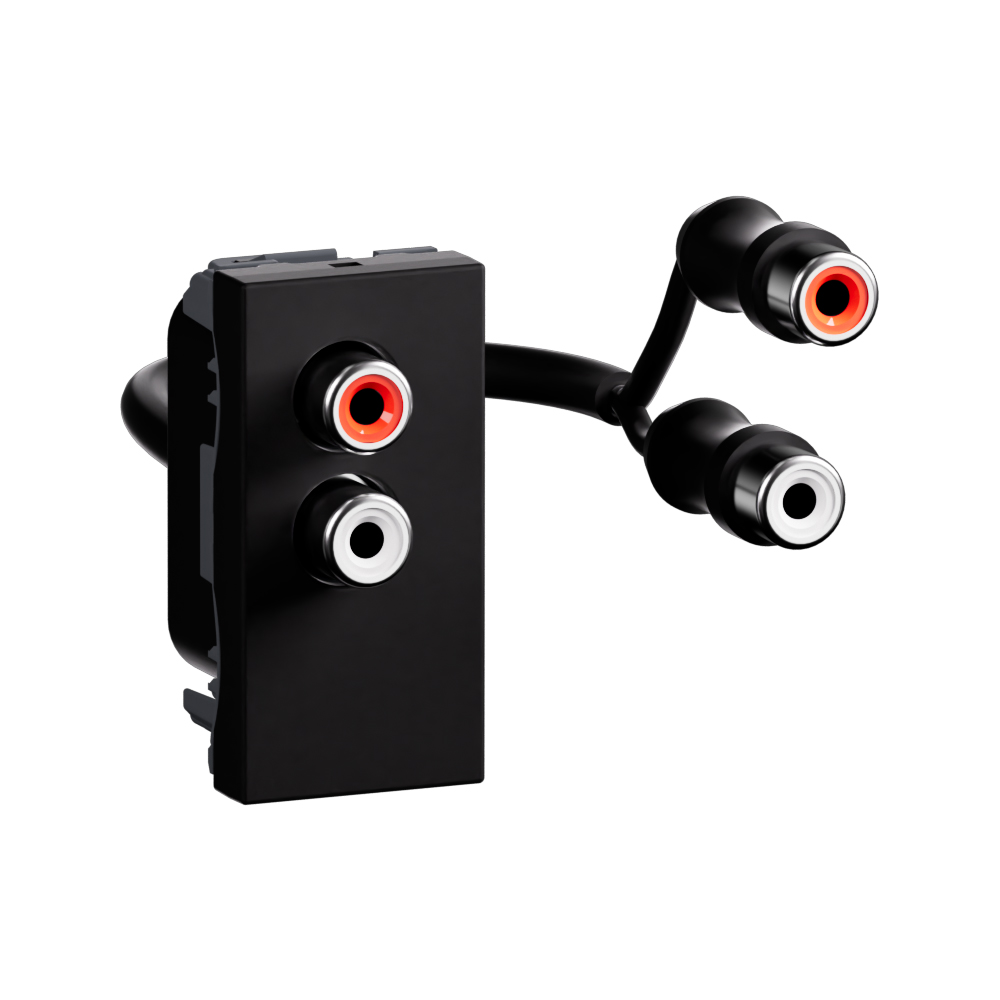

Provides the stereo audio link for peripheral devices such as DVD drives, cameras, or video recorders. This 1 module matt black insert features 2 female RCA sockets with snap fastening and a preterminated 15cm cord.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

Provides the stereo audio link for peripheral devices such as DVD drives, cameras, or video recorders. This 1 module matt black insert features 2 female RCA sockets with snap fastening and a preterminated 15cm cord.

Product characteristics
  • One-module insert with 2 RCA female connectors for stereo audio links in communication installations
  • Matt black thermoplastic front with lacquered, smooth finish for low-reflection, deep black appearance
  • Supplied with rocker plates, designed to be completed with Arteor Advance support frames and cover plates for modular integration
  • Dual female RCA socket with straight outlet direction, 1-module width (45x45mm), IP40, IK04
  • Equipped with preterminated cord, length 15cm, localizing wear on the module cord instead of the equipment RCA cord

The product's benefits

Installation
  • Ease of maintenance: wear and tear is localized on the preterminated cord and not on the equipment RCA cord.
Avantages
  • Deep black with a smooth matte aspect

Technical characteristics

Assembly arrangement Basic element with central cover plate
Utilization RCA
Support ring No
With dust cover No
With hinged lid No
Outlet direction Straight
Contact type Female
Imprintable label Without indication field
With imprint No
Mounting method Module frame
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Black
Transparent No
Type of fastening Engage (snap)
Number of modules (module system) 1
Suitable for number of connectors 2
With strain relief No
Shielded buses No
Shielded housing No
Luster terminal No
Suitable for degree of protection (IP) IP40
degree of impact strength (IK) IK04
Device width 45 mm
Device height 45 mm
Min. depth of built-in installation box 50 mm
Built-in depth 19.7 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
