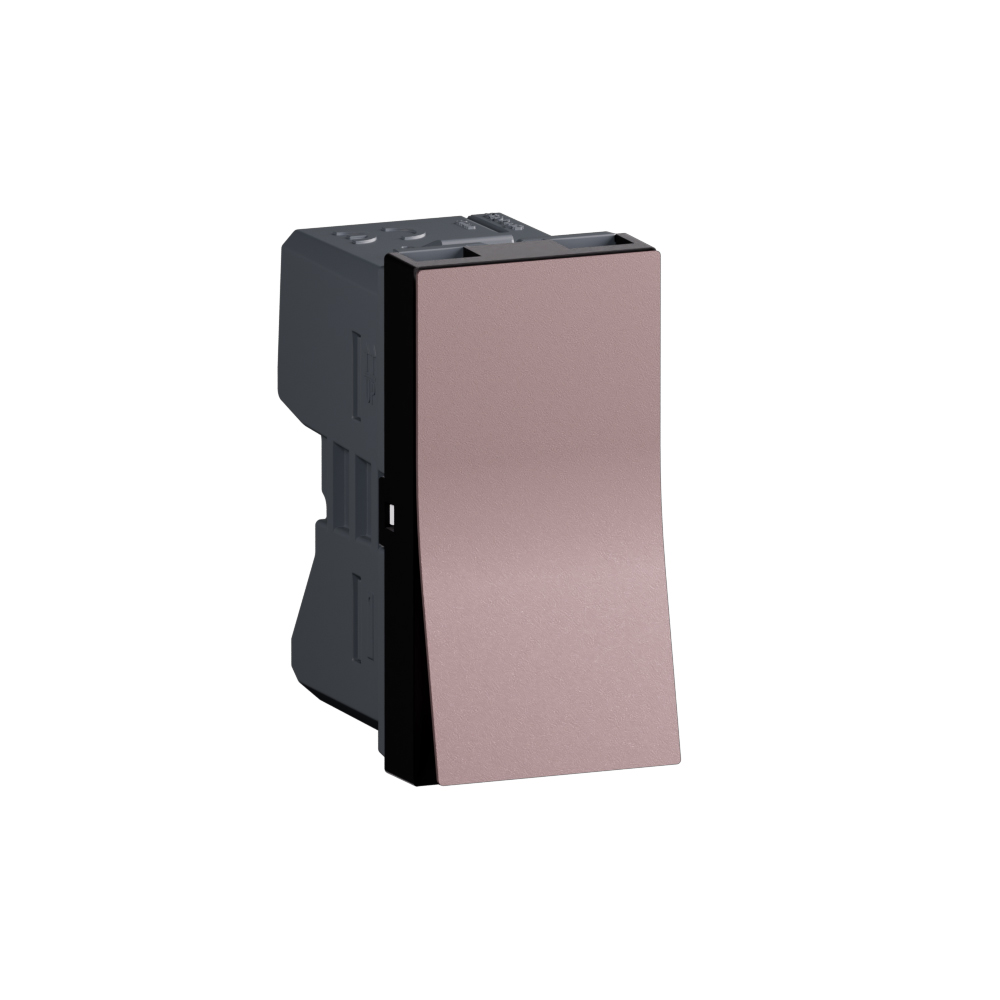

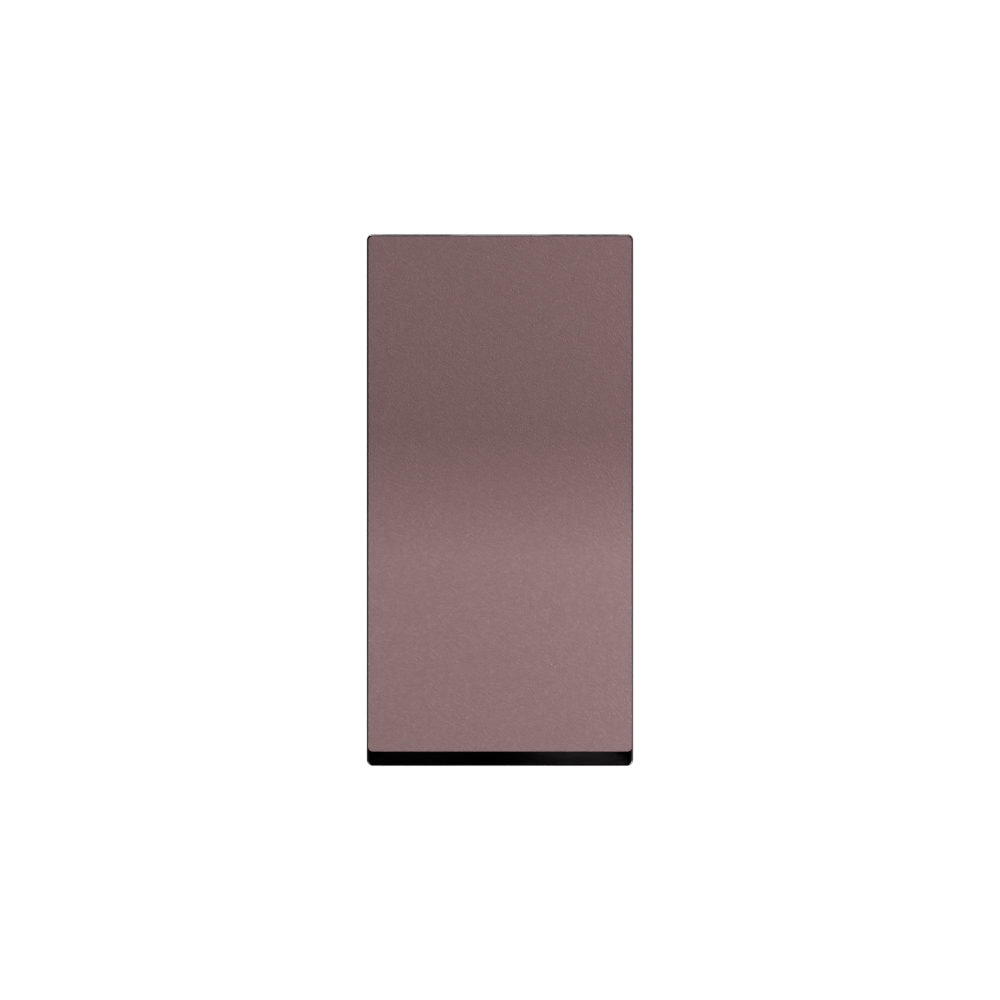

Arteor Advance - 1 module 16AX intermediate switch rose - 250V AC 16A IP20 - Screw terminals modular 1M rocker - Lighting control

Arteor Advance Legrand

Arteor Advance - 1 module 16AX intermediate switch rose - 250V AC 16A IP20 - Screw terminals modular 1M rocker - Lighting control

REF. AC20108RS EAN. 3414972922791
Offers a gentle touch for effortless light control with smooth, quiet operation. This 1-module 16AX intermediate switch controls lighting from multiple locations and safely switches inductive, resistive, and LED loads.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Offers a gentle touch for effortless light control with smooth, quiet operation. This 1-module 16AX intermediate switch controls lighting from multiple locations and safely switches inductive, resistive, and LED loads.

Product characteristics
  • One-module 16AX intermediate switch module for domestic lighting circuits, 250V AC, 50-60Hz
  • Rose finish modular device in the Arteor Advance range, matt lacquered thermoplastic, halogen-free
  • Intermediate rocker switch enabling light control from three or more locations in a circuit
  • Rated 16A at 250V for safe switching of full-load inductive and resistive SBL and LED lighting loads
  • Screw-mounted module with screwed terminals (1mm² to 4mm² flexible or rigid), IP20, IK04, compact size 22.5x45x36.9mm for indoor use
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch & sound
  • Pink finish evoking subtle blush effect
  • The square format enables modularity for lighting control

Technical characteristics

Wiring system Intermediate switch
Method of operation Rocker lever
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 1
Push button switch No
Number of rockers 1
Mounting method Module frame
Type of fastening Screw mounting
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Other
Colour of switch operator Other
Lighting No
Function lighting Other
Type of lighting Other
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Nominal voltage 250 V
Rated current 16 A
Switching current for fluorescent lamps 16 AX
Monitoring contact No
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 22.5 mm
Device height 45 mm
Device depth 36.9 mm
Built-in depth 23.8 mm
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Compliant with UK Building Regulations Part M No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Mandatory neutral No
Terminal marking indication Yes
Terminals capacity (Min-Max) 1-4 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1-4 mm²
