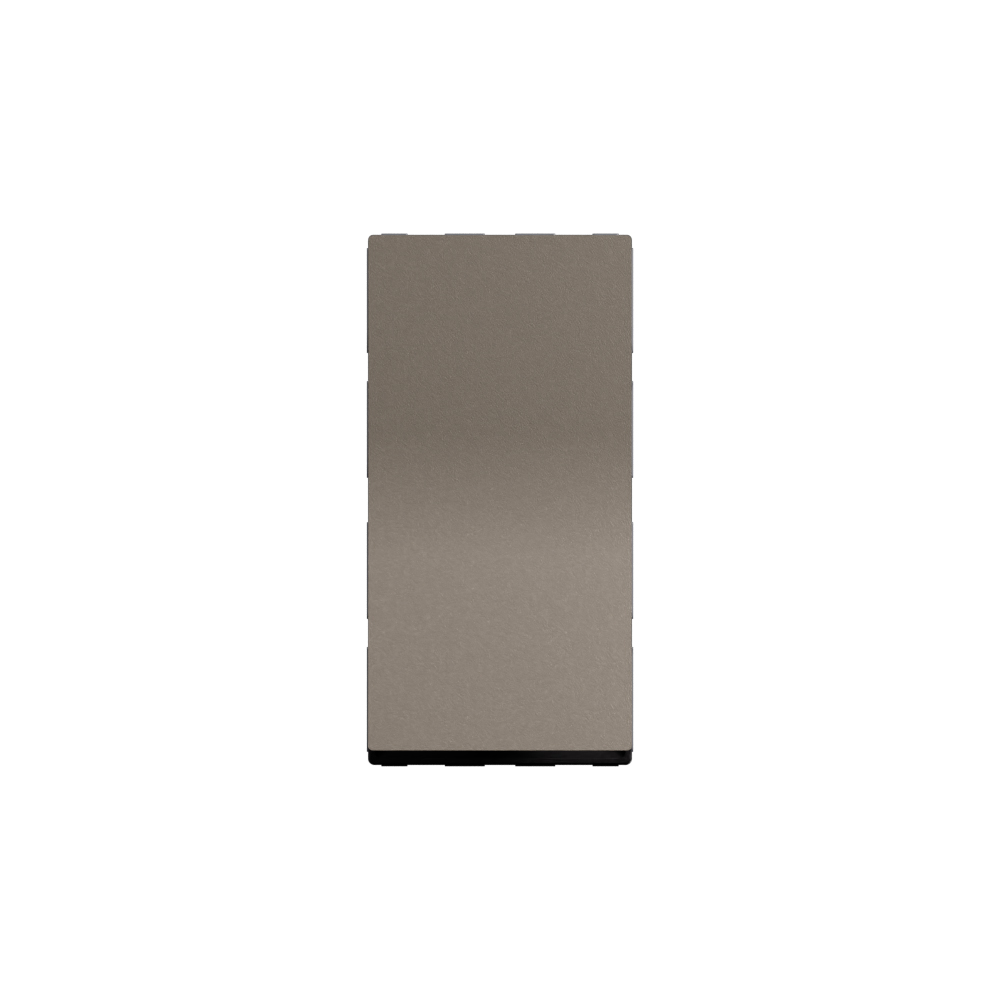

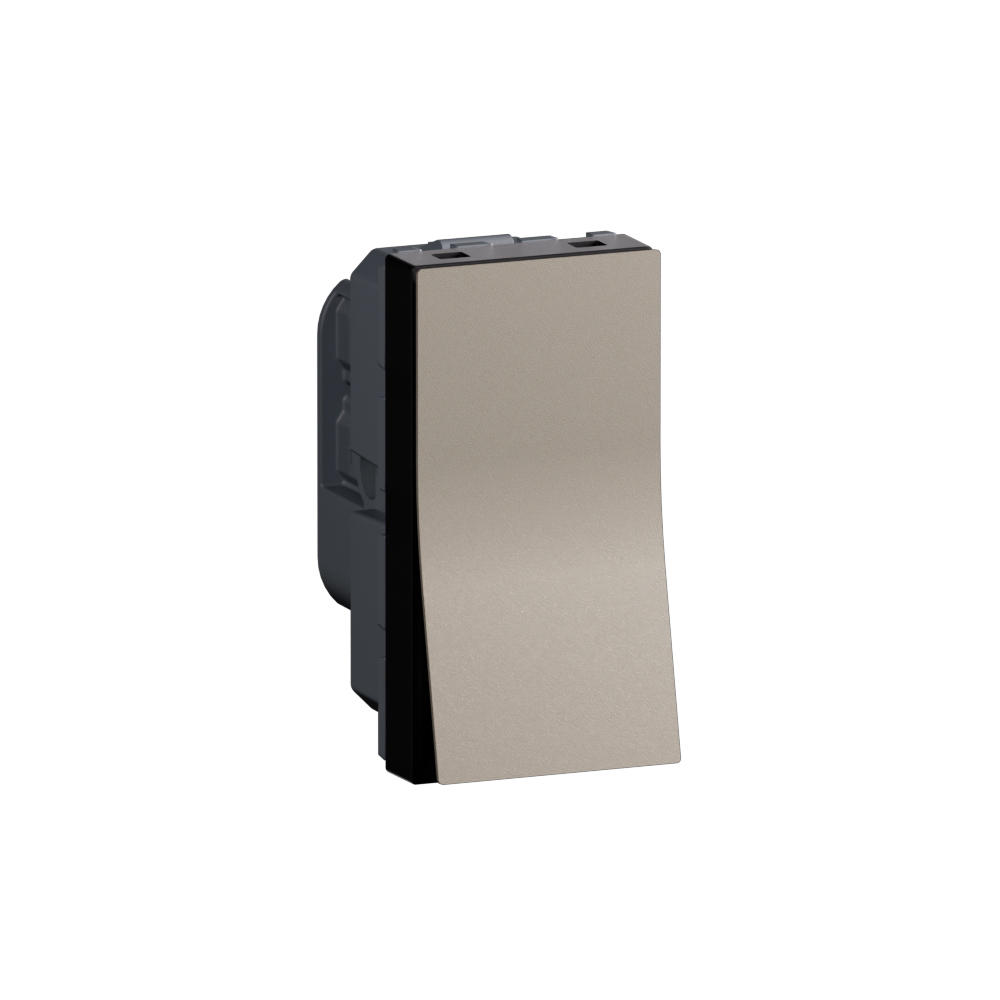

Arteor Advance - 1 module 1 way 20AX single pole switch champagne - Rocker operation - 250V AC - Matt thermoplastic gold finish

Arteor Advance Legrand

Arteor Advance - 1 module 1 way 20AX single pole switch champagne - Rocker operation - 250V AC - Matt thermoplastic gold finish

REF. AC21107CH EAN. 3414972923002
Offers a gentle touch for effortless light control with smooth operation. This 1 module, 1 way, 20AX single pole switch in champagne ensures reliable 250V AC performance on inductive, resistive, and LED loads. Screw-type terminals
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Offers a gentle touch for effortless light control with smooth operation. This 1 module, 1 way, 20AX single pole switch in champagne ensures reliable 250V AC performance on inductive, resistive, and LED loads. Screw-type terminals

Product characteristics
  • 1-module, 1-way, 20AX single-pole switch for 250V AC lighting circuits, optimized for domestic modular installations
  • Champagne (gold) matt lacquered finish aligns with Arteor Advance aesthetics for premium interior applications
  • Rocker/button mechanism engineered for smooth, low-effort actuation and precise switching feedback
  • 20AX rating supports switching the full rated current for inductive and resistive SBL loads and LED lighting at 50-60Hz
  • Screw-type terminals with 0.75mm² to 1.5mm² capacity and snap-in modular mounting enable secure, efficient installation in IP20 indoor environments
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 10,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch
  • Warm gray finish infused with ivory hues highlights silky elegance
  • The square format enables modularity for lighting control

Technical characteristics

Wiring system Switch 1-pole
Method of operation Rocker/button
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 1
Push button switch No
Number of rockers 1
Mounting method Module frame
Type of fastening Engage (snap)
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Gold
Colour of switch operator Gold
Label space/information surface No
Lighting No
Function lighting Other
Type of lighting Other
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK02
Nominal voltage 250 V
Rated current 20 A
Switching current for fluorescent lamps 20 AX
Monitoring contact No
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 22.5 mm
Device height 45.1 mm
Device depth 40.6 mm
Built-in depth 27.5 mm
Min. depth of built-in installation box 45 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) 0-70 °C
Voltage type AC
Frequency (Min-Max) 50 -60 Hz
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
Cable nature for connection Flexible or rigid
