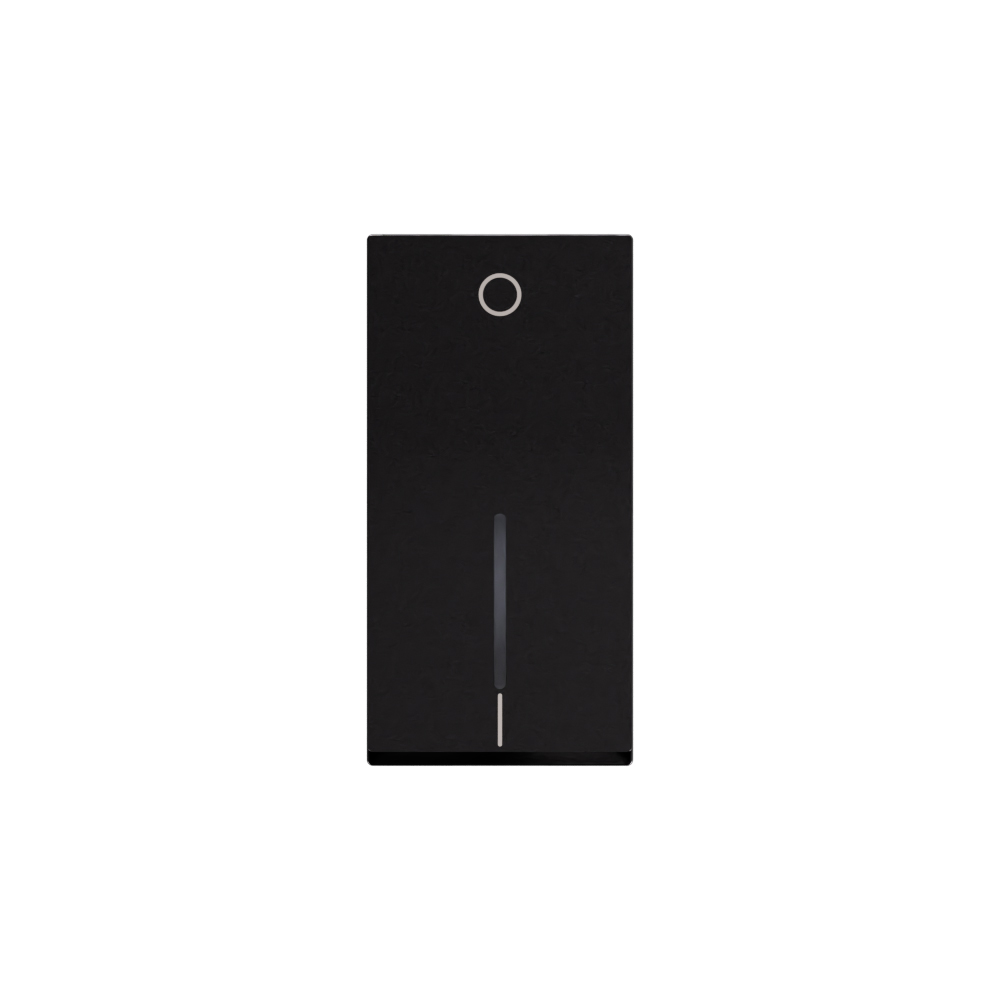

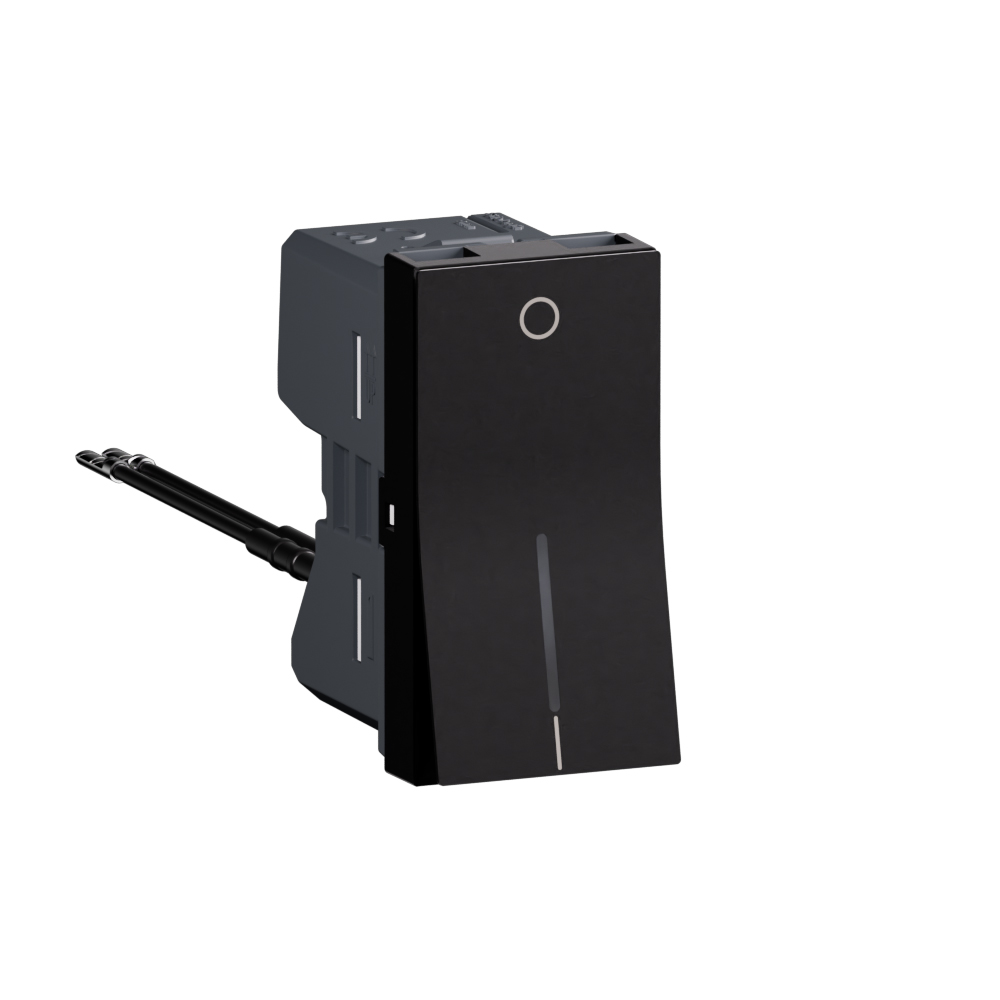

Arteor Advance - 1 module 1 way 20AX double pole switch with LED indicator matt black - 250V AC 20AX - Modular 1M rocker switch

Arteor Advance Legrand

Arteor Advance - 1 module 1 way 20AX double pole switch with LED indicator matt black - 250V AC 20AX - Modular 1M rocker switch

REF. AC21110MB EAN. 3414973147087
Offers smooth 20AX double-pole switching at 250V AC with built-in LED indicator. Its matt black thermoplastic body with screw terminals and modular 1M format ensures robust, flexible indoor installation.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Offers smooth 20AX double-pole switching at 250V AC with built-in LED indicator. Its matt black thermoplastic body with screw terminals and modular 1M format ensures robust, flexible indoor installation.

Product characteristics
  • 1-module, 1-way, 20AX double-pole installation switch for 250V AC circuits, optimized for domestic and commercial lighting control
  • Matt black thermoplastic front with smooth matt aspect, matching Arteor Advance aesthetics for contemporary installations
  • Integrated LED indicator with illuminated-on function and exchangeable LED for clear circuit status visibility
  • 20AX rating suitable for switching the full rated current on inductive and resistive SBL loads and LED lighting at 50-60Hz
  • Compact modular device (22.5x45x36.9mm, IP20, IK04) with screw terminals for 1mm² to 4mm² rigid or flexible conductors, ensuring secure in-frame mounting
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 10,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch
  • Deep black with a smooth matt aspect
  • The square format enables modularity for lighting control

Technical characteristics

Wiring system Switch 2-pole
Method of operation Rocker lever
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 1
Push button switch No
Number of rockers 1
Mounting method Module frame
Type of fastening Screw mounting
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Black
RAL-number (similar) 9003
Colour of switch operator White
Lighting Yes
Function lighting Illuminated (on)
Type of lighting LED exchangeable
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Nominal voltage 250 V
Rated current 20 A
Switching current for fluorescent lamps 20 AX
Monitoring contact No
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 22.5 mm
Device height 45 mm
Device depth 36.9 mm
Built-in depth 23.8 mm
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Compliant with UK Building Regulations Part M No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Mandatory neutral No
Terminal marking indication Yes
Terminals capacity (Min-Max) 1-4 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1-4 mm²
