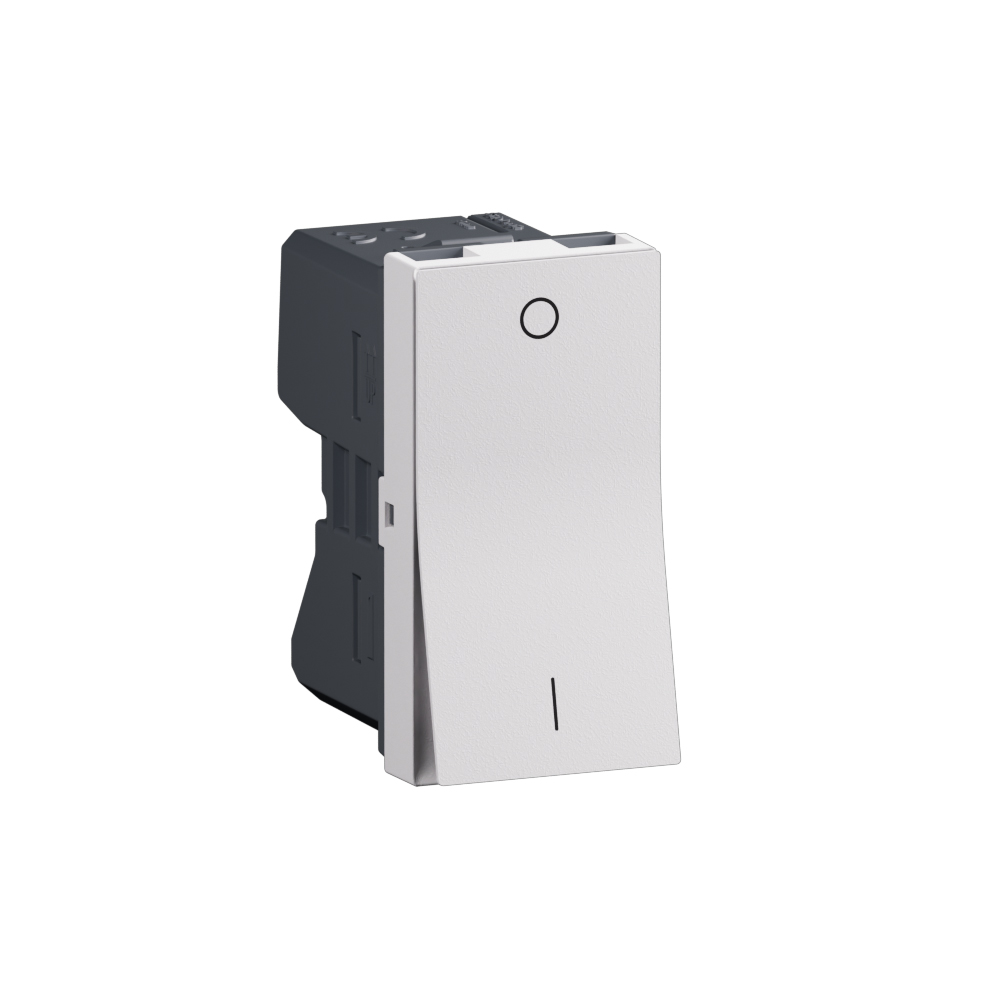

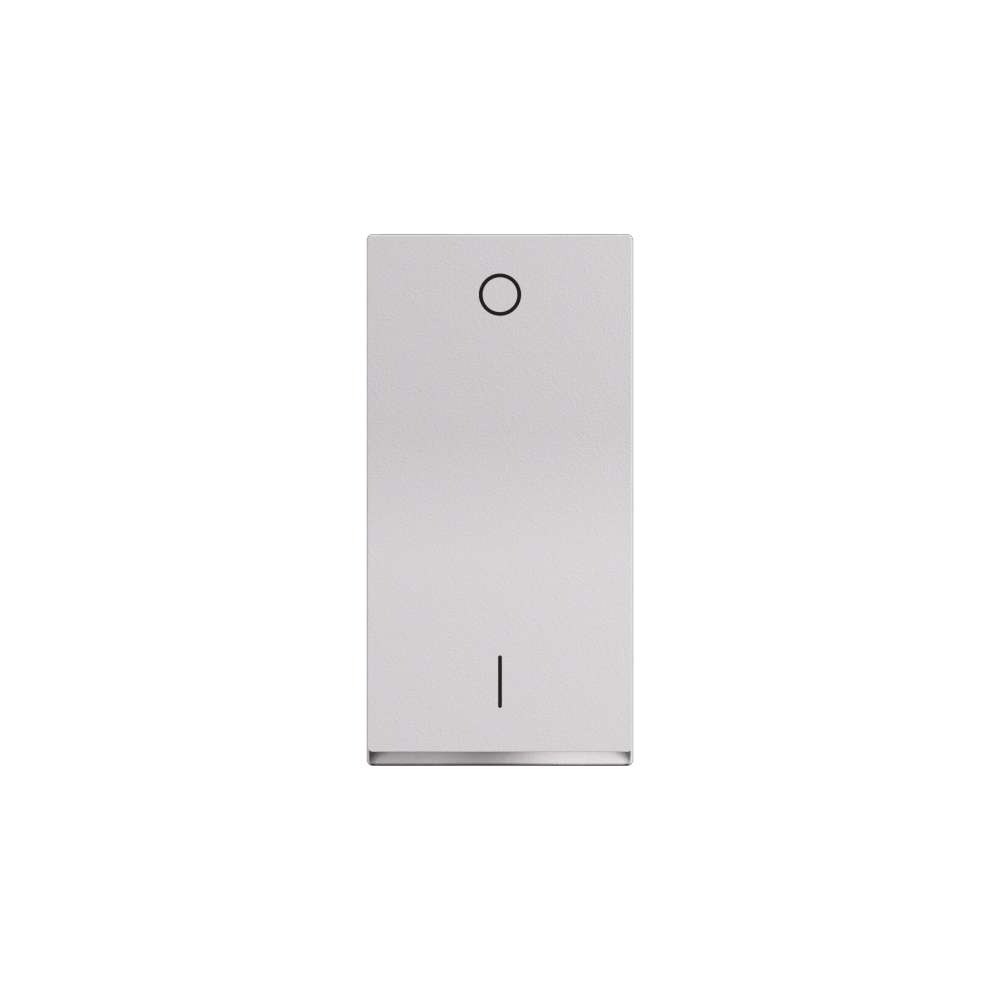

Arteor Advance - 1 module 1 way 20AX double pole switch matt white - Illuminated rocker - 250V AC 20AX rating - 1M modular IP20 switch

Arteor Advance Legrand

Arteor Advance - 1 module 1 way 20AX double pole switch matt white - Illuminated rocker - 250V AC 20AX rating - 1M modular IP20 switch

REF. AC21109MW EAN. 3414973082142
Offers a gentle touch for effortless light control with smooth rocker operation. This 1 module, 1 way, 20AX double pole switch in matt white ensures reliable 250V AC switching for inductive, resistive, and LED loads.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Offers a gentle touch for effortless light control with smooth rocker operation. This 1 module, 1 way, 20AX double pole switch in matt white ensures reliable 250V AC switching for inductive, resistive, and LED loads.

Product characteristics
  • One-module, one-way 20AX double-pole switch for reliable circuit isolation in domestic installations
  • Matt white thermoplastic front with smooth, powdery finish for a discreet, modern aesthetic
  • Rocker lever mechanism engineered for smooth, gentle actuation and precise switching feedback
  • 20A rating at 250V AC, suitable for switching full rated current on inductive and resistive SBL loads and LED lighting
  • Modular 1M device with screw terminals (1mm² to 4mm² flexible or rigid), IP20, IK04, for indoor mounting in Arteor Advance frames
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 10,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch
  • Powdery white with a smooth matt aspect
  • The square format enables modularity for lighting control

Technical characteristics

Wiring system Switch 2-pole
Method of operation Rocker lever
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 1
Push button switch No
Number of rockers 1
Mounting method Module frame
Type of fastening Screw mounting
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour White
Colour of switch operator White
Lighting Yes
Function lighting Other
Type of lighting Other
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Nominal voltage 250 V
Rated current 20 A
Switching current for fluorescent lamps 20 AX
Monitoring contact No
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 22.5 mm
Device height 45 mm
Device depth 36.9 mm
Built-in depth 23.8 mm
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Compliant with UK Building Regulations Part M No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Mandatory neutral No
Terminal marking indication Yes
Terminals capacity (Min-Max) 1-4 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1-4 mm²
