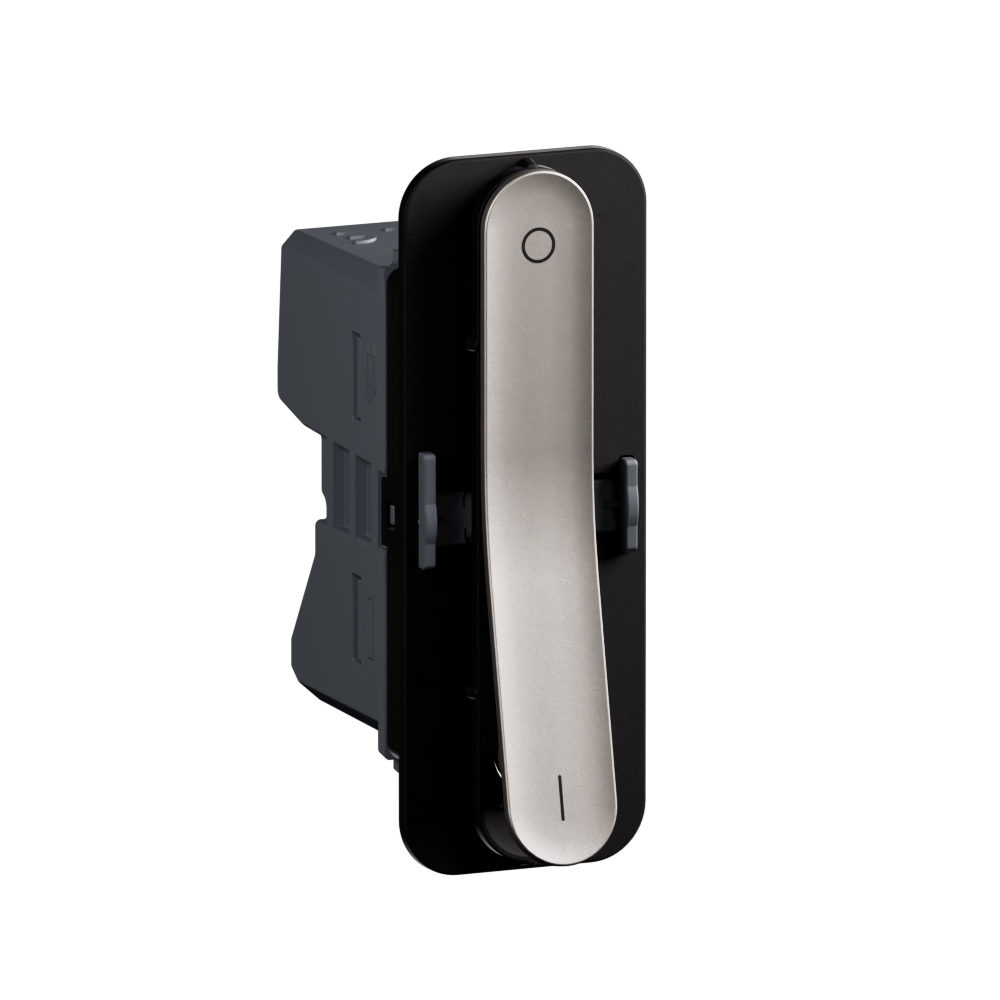

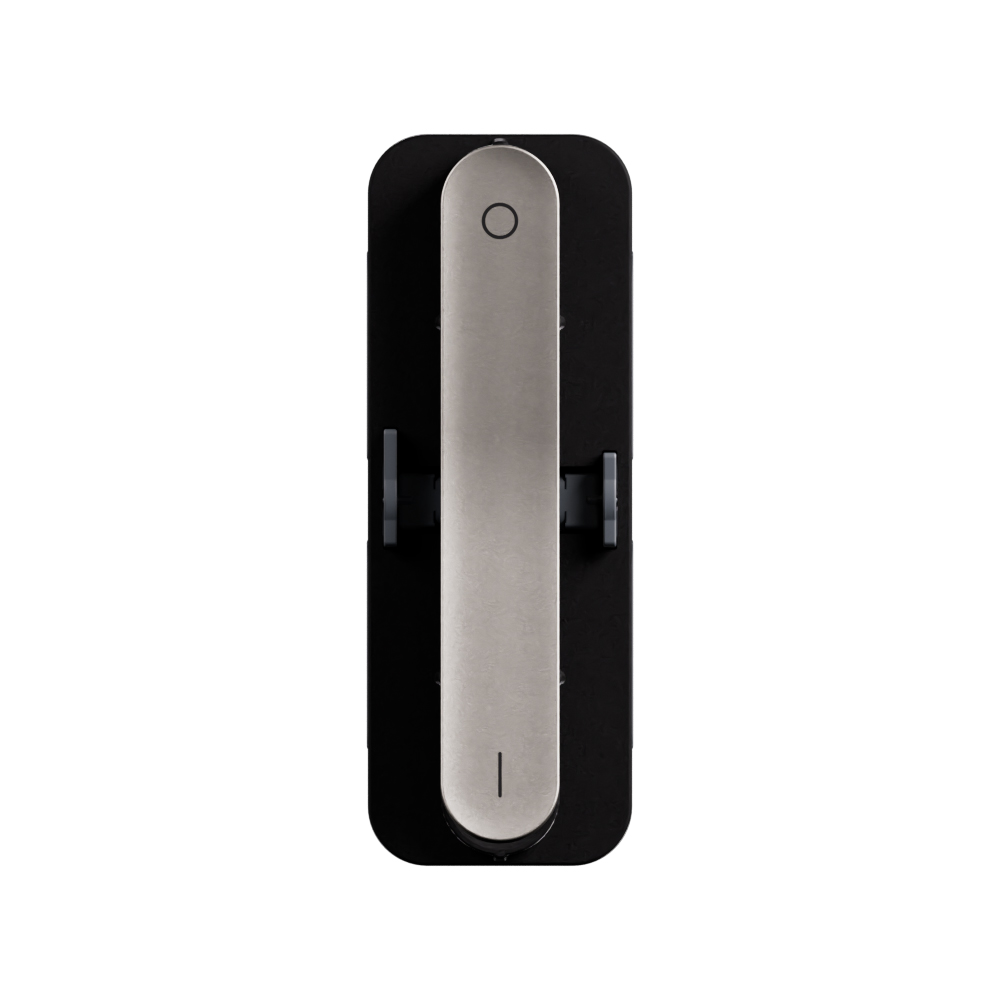

Arteor Advance - 1 module 1 way 20AX double pole slender switch matt titanium - Rocker lever operation - Matt titanium IP20

Arteor Advance Legrand

Arteor Advance - 1 module 1 way 20AX double pole slender switch matt titanium - Rocker lever operation - Matt titanium IP20

REF. AA21109MT EAN. 3414973144345
Offers a gentle touch for effortless light control, this 1 module, 1 way, 20AX double pole switch ensures reliable 250V AC switching for inductive, resistive, and LED loads. Its matt titanium rocker with screw terminals delivers durable
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Offers a gentle touch for effortless light control, this 1 module, 1 way, 20AX double pole switch ensures reliable 250V AC switching for inductive, resistive, and LED loads. Its matt titanium rocker with screw terminals delivers durable

Product characteristics
  • 1-module, 1-way, 20AX double-pole installation switch for domestic circuits up to 250V AC, 50 to 60Hz
  • Matt titanium thermoplastic front with lacquered finish for a premium, low-glare aesthetic matching Arteor Advance
  • Rocker lever mechanism engineered for smooth, low-effort actuation and precise switching feedback
  • Rated 20A x for reliable switching of full-load inductive and resistive SBL loads and LED lighting on IP20 indoor installations
  • Compact slender module (22.5mmx61.8mm, 38.5mm depth) with screw terminals for 1mm² to 4mm² rigid or flexible conductors, ensuring secure wiring in 35mm minimum back boxes
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 10,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch
  • Titanium with a smooth matte aspect
  • The slender design offers a unique ergonomics that brings elegance to the room

Technical characteristics

Wiring system Switch 2-pole
Method of operation Rocker lever
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 1
Push button switch No
Number of rockers 1
Mounting method Module frame
Type of fastening Screw mounting
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Titanium
RAL-number (similar) 9003
Colour of switch operator Titanium
Lighting Yes
Function lighting Other
Type of lighting Other
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Nominal voltage 250 V
Rated current 20 A
Switching current for fluorescent lamps 20 AX
Monitoring contact No
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 22.5 mm
Device height 61.8 mm
Device depth 38.5 mm
Built-in depth 23.8 mm
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Compliant with UK Building Regulations Part M No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Mandatory neutral No
Terminal marking indication Yes
Terminals capacity (Min-Max) 1-4 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1-4 mm²
