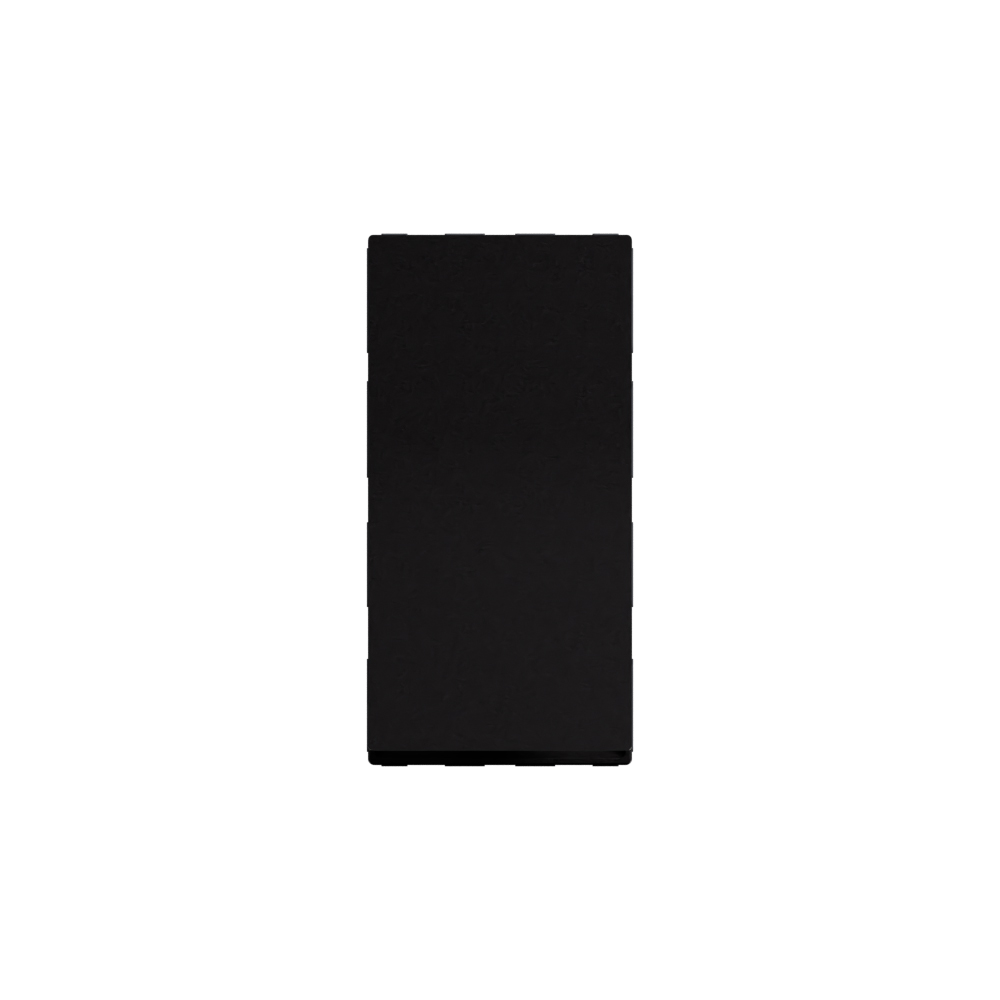

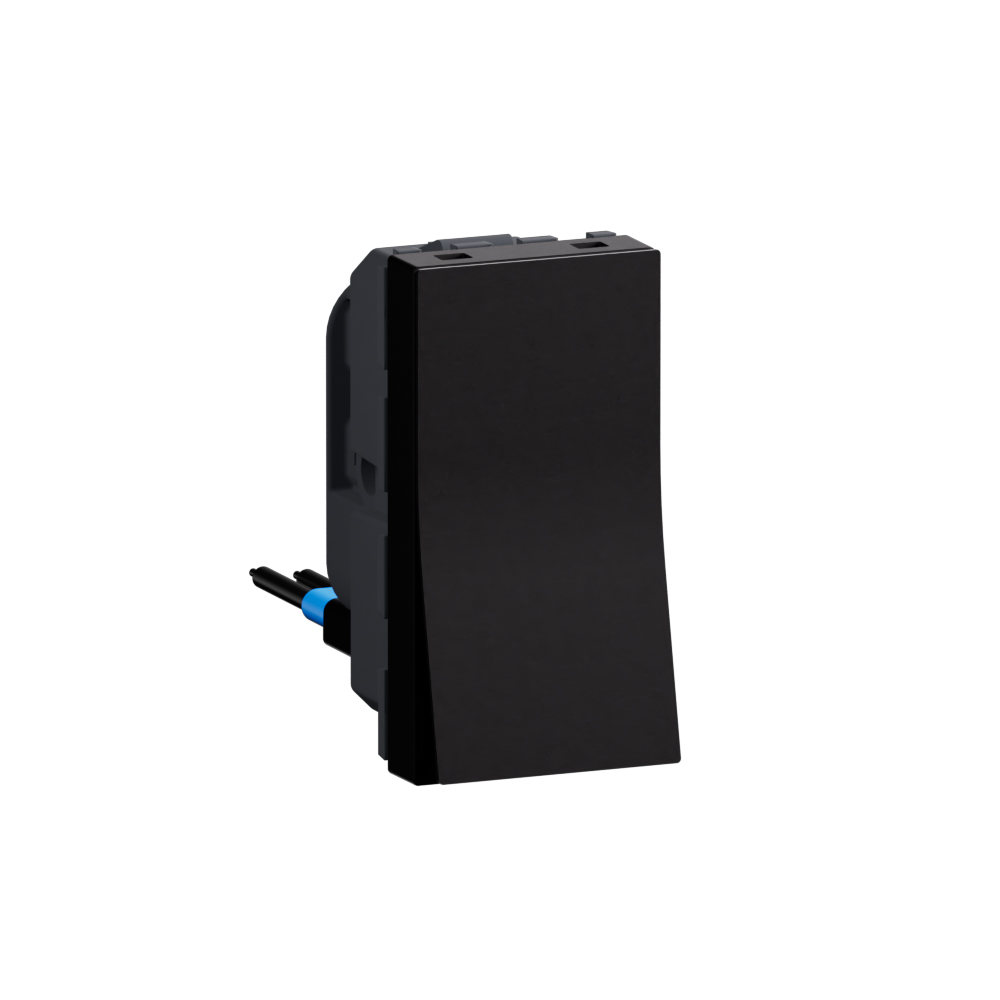

Arteor Advance - 1 module 1 way 10AX single pole switch with locator matt black - 230V AC 10A - IP20 indoor use

Arteor Advance Legrand

Arteor Advance - 1 module 1 way 10AX single pole switch with locator matt black - 230V AC 10A - IP20 indoor use

REF. AC21105MB EAN. 3414972742740
Offers smooth, quiet light control with 1-module, 1-way 10AX single-pole rating for reliable 230VAC switching of inductive and LED loads. The built-in locator light and matt black finish enhance usability and discreet aesthetics.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Offers smooth, quiet light control with 1-module, 1-way 10AX single-pole rating for reliable 230VAC switching of inductive and LED loads. The built-in locator light and matt black finish enhance usability and discreet aesthetics.

Product characteristics
  • One-module, one-way 10AX single-pole switch module for domestic lighting control circuits
  • Matt black thermoplastic front with lacquered, smooth finish for a deep, uniform black aesthetic
  • Integrated locator light function helps users quickly identify the switch position in low-light or dark environments
  • Rated 10AX at 230V AC, suitable for switching full rated current on inductive and resistive SBL loads and LED lighting
  • Screw-type terminals with 0.75mm² to 1.5mm² capacity and snap-in modular mounting for secure, efficient installation in 1M frames
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch & sound
  • Deep black with a smooth matt aspect
  • The square format enables modularity for lighting control

Technical characteristics

Wiring system Switch 1-pole
Method of operation Rocker/button
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 1
Push button switch No
Number of rockers 1
Mounting method Module frame
Type of fastening Engage (snap)
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free No
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Black
Colour of switch operator Black
Label space/information surface No
Lighting Yes
Function lighting Orientation
Type of lighting LED exchangeable
Suitable for degree of protection (IP) IP20
Nominal voltage 230 V
Rated current 10 A
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 22.5 mm
Device height 45 mm
Device depth 38 mm
Min. depth of built-in installation box 25 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
Voltage type AC
Mandatory neutral No
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
