Arteor Advance - 1 module 1 way 10AX single pole switch with LED indicator matt black - 230V AC 10AX rating - Screw terminals IP20

Arteor Advance Legrand

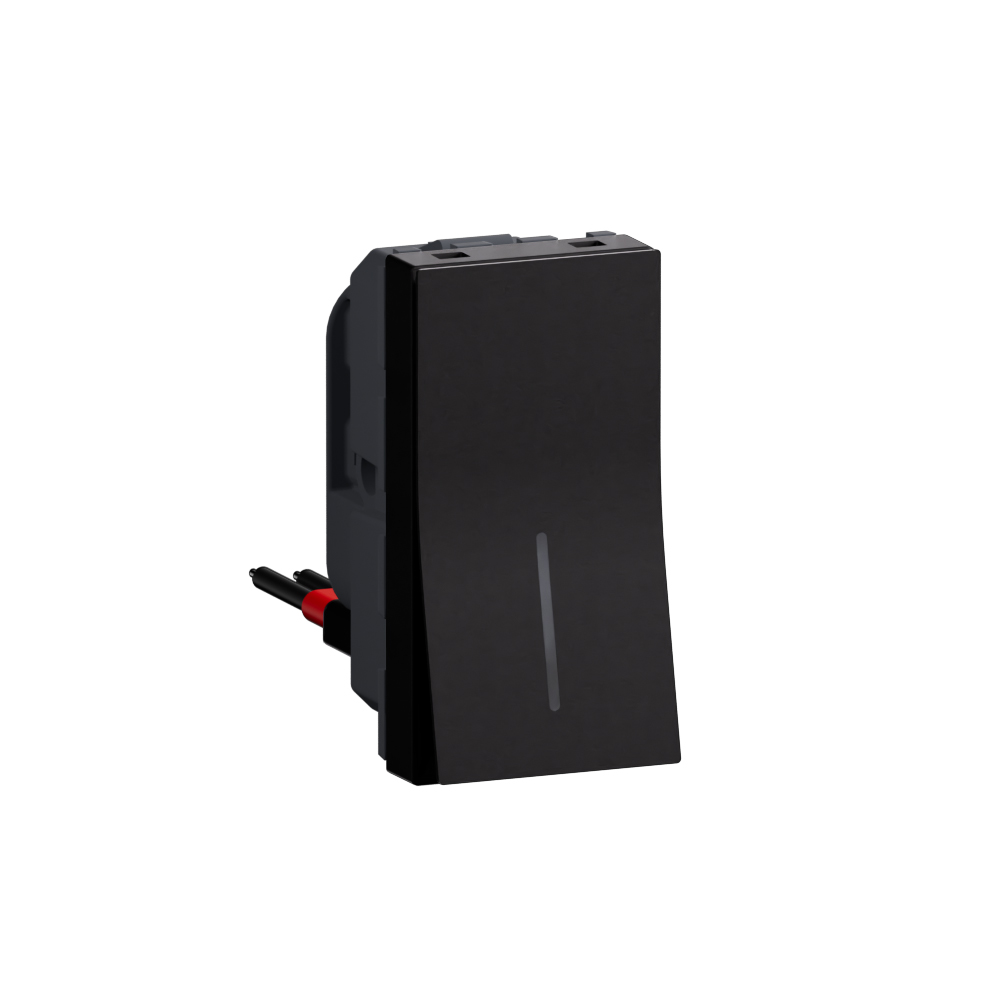

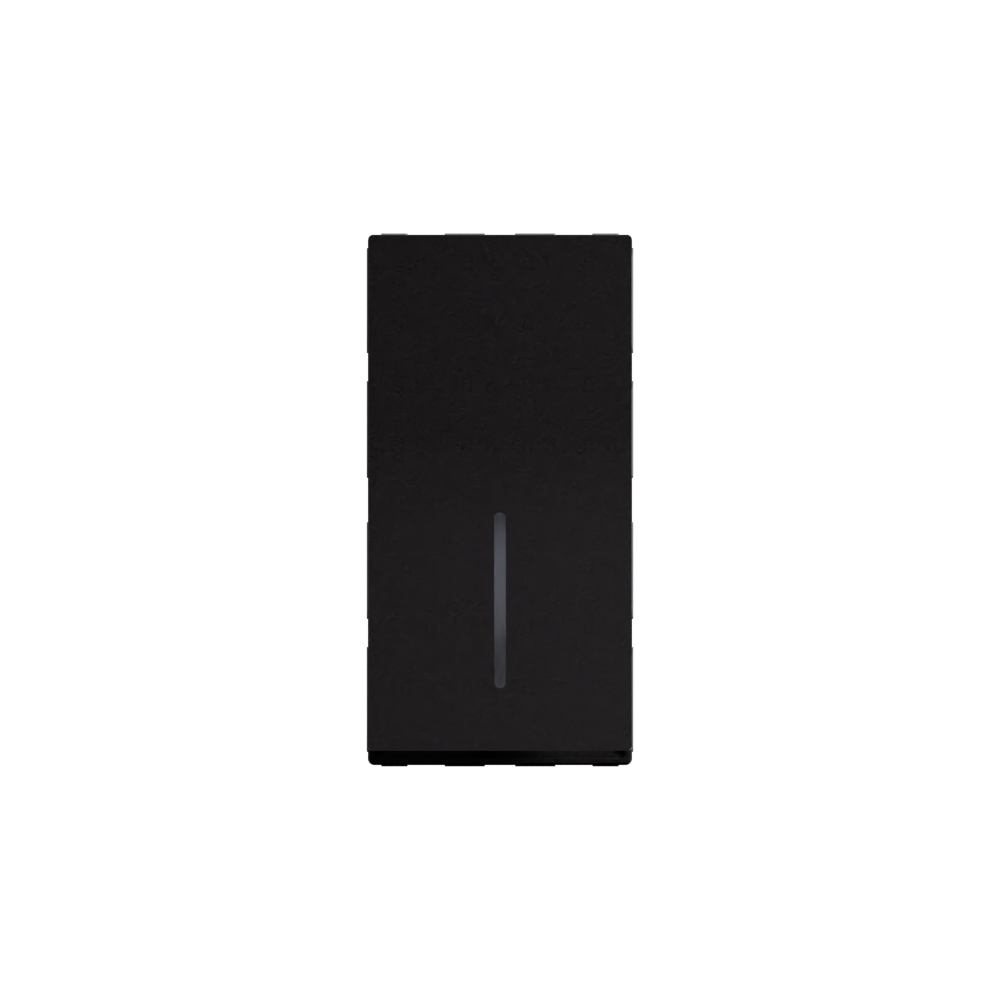

Arteor Advance - 1 module 1 way 10AX single pole switch with LED indicator matt black - 230V AC 10AX rating - Screw terminals IP20

REF. AC21106MB EAN. 3414972742832
Offers a gentle touch for effortless light control with smooth, quiet operation. This 1 module, 1 way, 10AX single pole switch with LED indicator ensures reliable 230V AC switching in a matt black thermoplastic body with screw terminals.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Offers a gentle touch for effortless light control with smooth, quiet operation. This 1 module, 1 way, 10AX single pole switch with LED indicator ensures reliable 230V AC switching in a matt black thermoplastic body with screw terminals.

Product characteristics
  • One-module, 1-way, 10ax single-pole switch optimized for standard lighting control circuits
  • Matt black thermoplastic front with lacquered, smooth finish for a deep, uniform black aesthetic
  • Integrated LED indicator for clear visual status feedback and easy location in low-light environments
  • Rated 10AX at 230V AC, suitable for switching the full rated current on inductive and resistive SBL loads and LED lighting
  • Modular 1M rocker device for module-frame mounting with screw terminals and snap fastening, enabling compact, secure installation in IP20 indoor applications
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch & sound
  • Deep black with a smooth matt aspect
  • The square format enables modularity for lighting control

Technical characteristics

Wiring system Switch 1-pole
Method of operation Rocker/button
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 1
Push button switch No
Number of rockers 1
Mounting method Module frame
Type of fastening Engage (snap)
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free No
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Black
Colour of switch operator Black
Label space/information surface No
Lighting Yes
Function lighting Illuminated (on)
Type of lighting LED exchangeable
Suitable for degree of protection (IP) IP20
Nominal voltage 230 V
Rated current 10 A
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 22.5 mm
Device height 45 mm
Device depth 38 mm
Min. depth of built-in installation box 25 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
Voltage type AC
Mandatory neutral No
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
