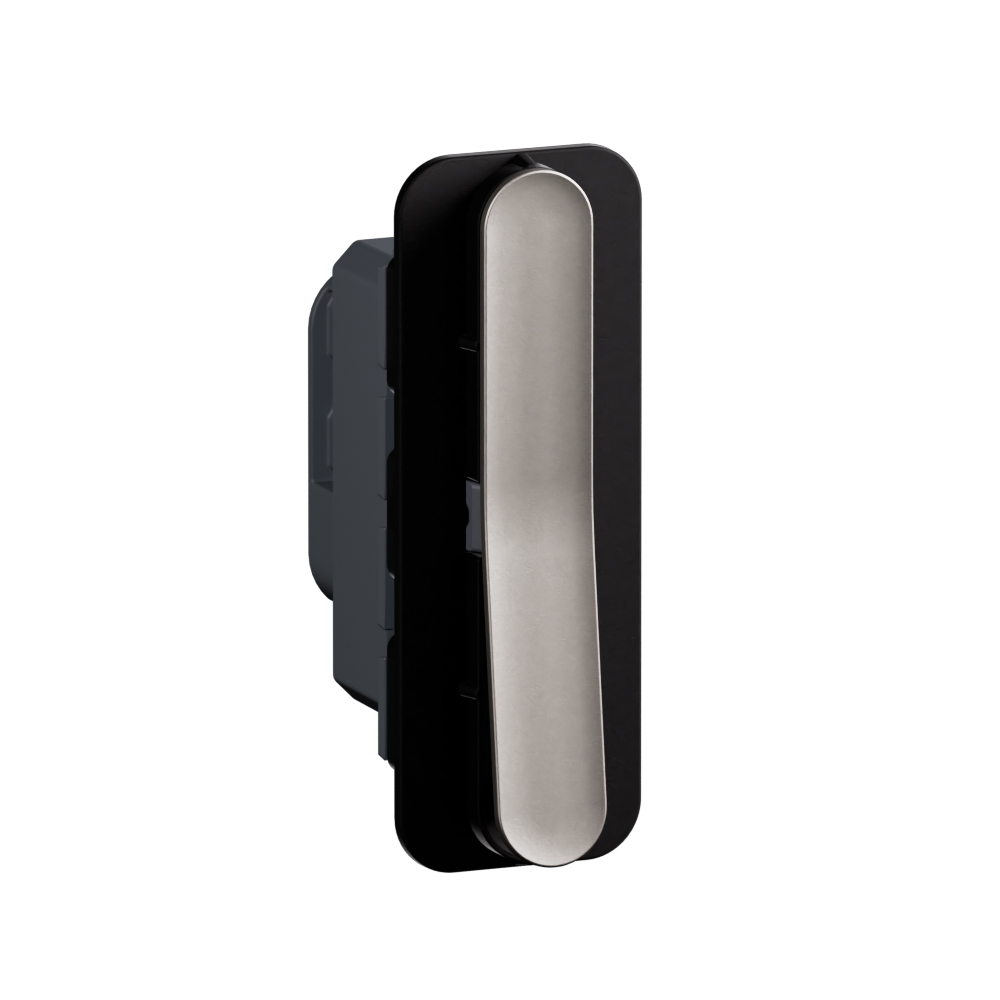

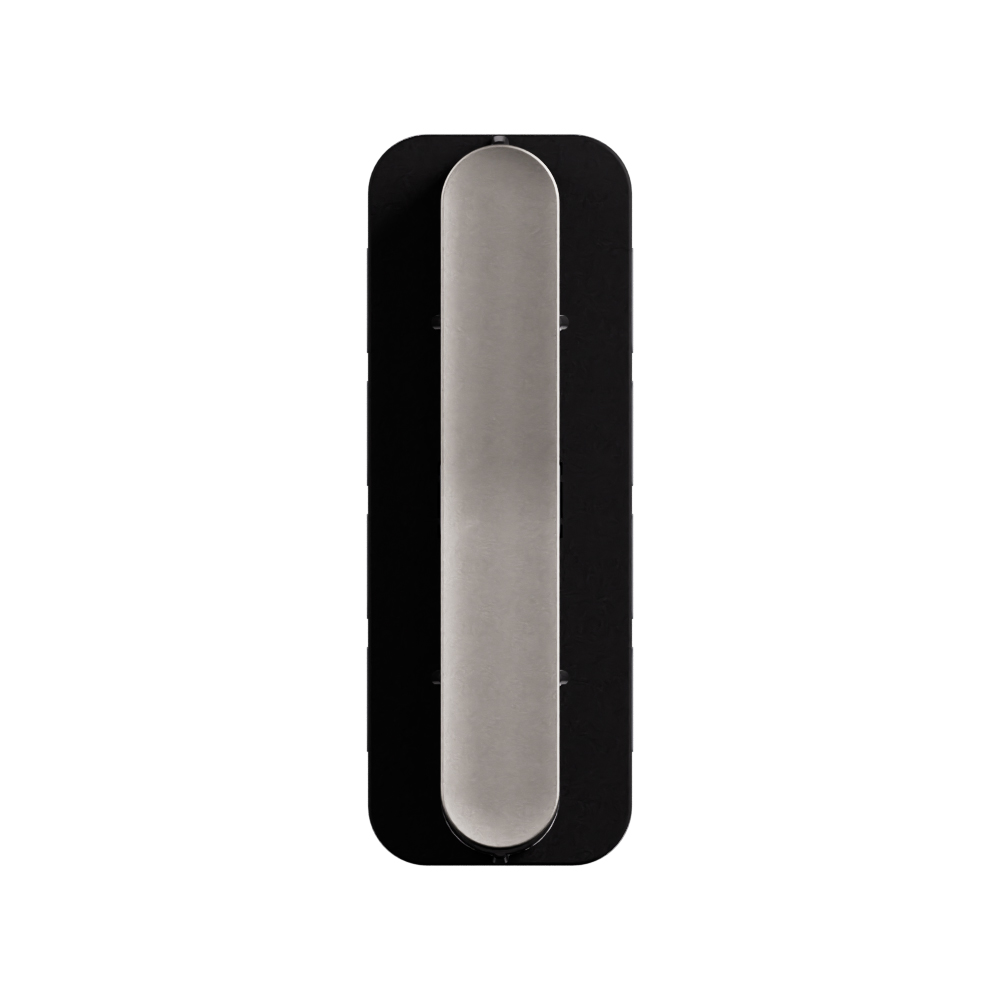

Arteor Advance - 1 module 1 way 10A slim push button matt titanium - Slender ergonomic design - Quiet operation - IP20 switch

Arteor Advance Legrand

Arteor Advance - 1 module 1 way 10A slim push button matt titanium - Slender ergonomic design - Quiet operation - IP20 switch

REF. AA23101MT EAN. 3414973144888
Offers a gentle touch for effortless light control with smooth, quiet operation, in a slender matt titanium 1 module 1 way 10A design. Its electromechanical push button returns automatically and uses screw terminals.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Offers a gentle touch for effortless light control with smooth, quiet operation, in a slender matt titanium 1 module 1 way 10A design. Its electromechanical push button returns automatically and uses screw terminals.

Product characteristics
  • One-module, one-way 10A electromechanical push button for modular domestic switching applications at 250V AC
  • Matt titanium thermoplastic front with lacquered surface for a refined, low-glare technical finish
  • Momentary push button mechanism that automatically returns to its original rest position after actuation
  • Rated 10A for switching the full rated current on inductive and resistive SBL loads and LED circuits, ensuring reliable performance
  • Screw-type terminals for flexible or rigid conductors 0.75mm² to 1.5mm², with snap-in modular mounting and IP20 rating for indoor installations
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch & sound
  • Titanium with a smooth matte finish
  • The slender format offers unique ergonomics with a low 3.5° angle for optimal and elegant integration into the environment

Technical characteristics

Assembly arrangement Modular device for domestic switching devices
Model Single push button
Method of operation Push button
Operating principle Electromechanical
Number of contacts as normally closed contact 0
Number of contacts as normally open contact 1
Number of contacts as change-over contact 0
Number of revolving contacts 0
Contactless type No
Number of rockers 1
Number of modules (module system) 1
Number of poles 1
Nominal voltage 250 V
Rated current 10 A
With lighting No
With light source No
With complemantary luminous signal Yes
Monitoring contact No
Connection type Screwed terminal
Mounting method Module frame
Type of fastening Engage (snap)
Material Plastic
Material quality Thermoplastic
Halogen free No
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Titanium
Transparent No
Label space/information surface No
Imprint None
Suitable for degree of protection (IP) IP20
Device width 45 mm
Device height 62 mm
Device depth 42 mm
Min. depth of built-in installation box 30 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Built-in depth 35 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -5-70 °C
Voltage type AC
Mandatory neutral No
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
Cable nature for connection Flexible or rigid
