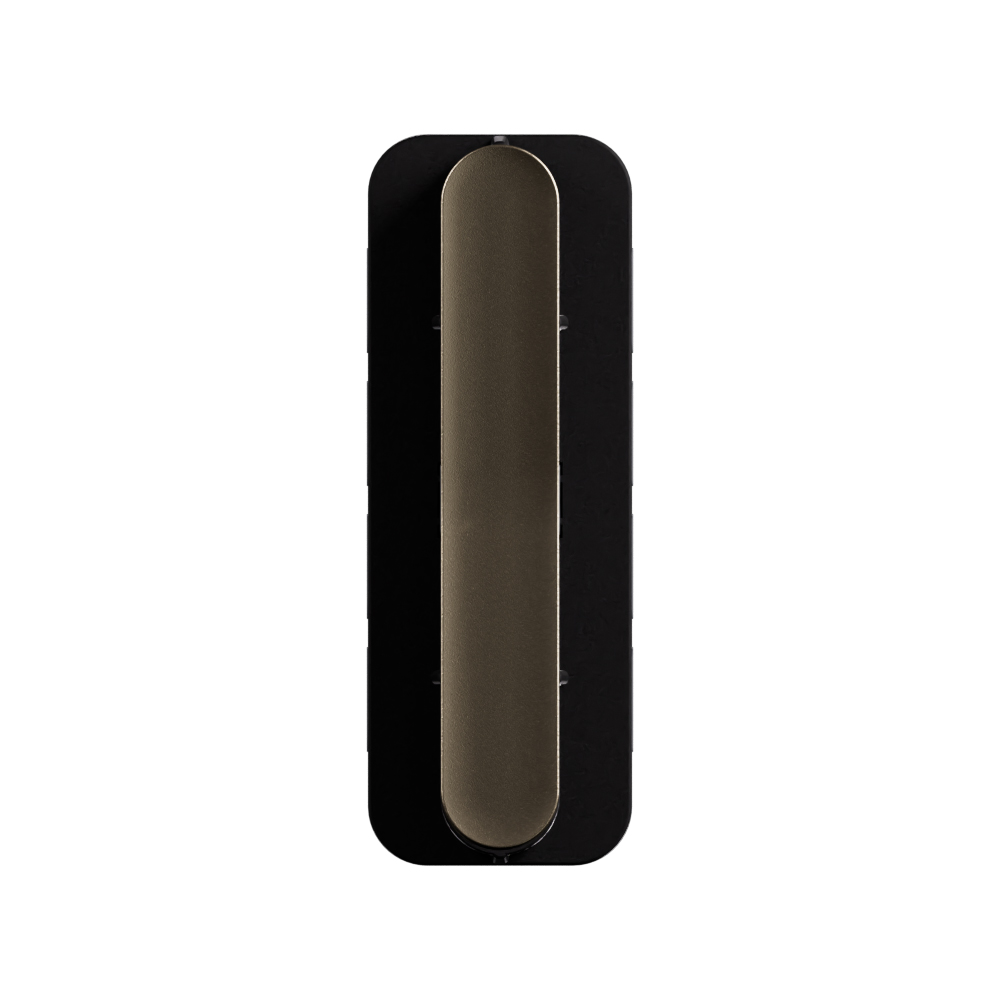

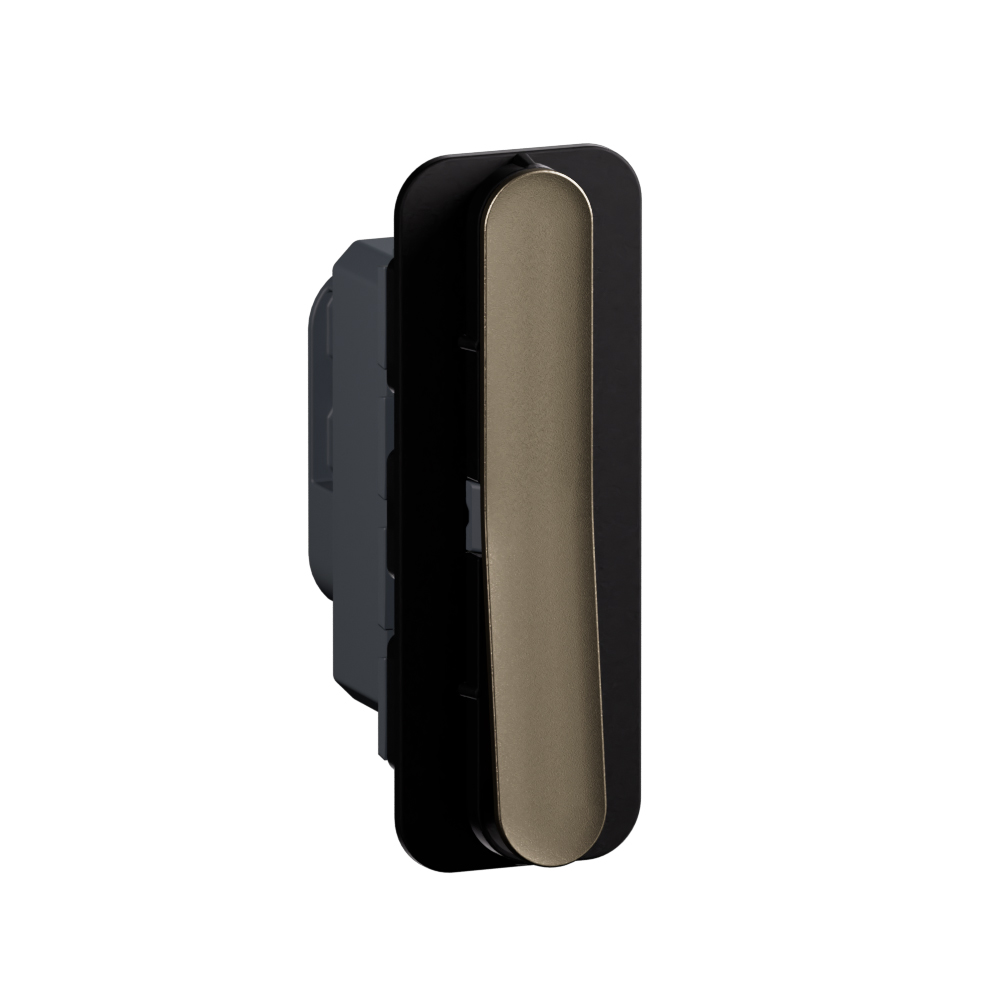

Arteor Advance - 1 module 1 way 10A slender push button dark bronze - 250V AC 2-pole - Matt thermoplastic IP20

Arteor Advance Legrand

Arteor Advance - 1 module 1 way 10A slender push button dark bronze - 250V AC 2-pole - Matt thermoplastic IP20

REF. AA23101DB EAN. 3414972919678
Offers a gentle touch for effortless light control by providing smooth, quiet operation. This 1 module, 1 way, 10A electromechanical push button in dark bronze automatically returns to its original state.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Offers a gentle touch for effortless light control by providing smooth, quiet operation. This 1 module, 1 way, 10A electromechanical push button in dark bronze automatically returns to its original state.

Product characteristics
  • 1-module, 1-way 10A electromechanical push button for modular domestic switching applications (250V AC, IP20)
  • Dark bronze, matt lacquered thermoplastic front for a deep, architectural finish matching Arteor Advance aesthetics
  • Momentary push button mechanism that automatically returns to its original rest position after actuation
  • Rated 10A for switching the full rated current on inductive and resistive SBL loads and LED circuits, with screw terminals for 0.75mm² to 1.5mm² rigid or flexible conductors
  • Slender, low-angle ergonomic format (approx. 45x62x42mm, built-in depth 35mm) providing smooth, quiet operation and elegant wall integration for indoor use
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch & sound
  • Deep bronze finish evoking classic aesthetic
  • The slender format offers a unique ergonomy with a low angle of 3.5° for optimal and elegant integration in the environment

Technical characteristics

Assembly arrangement Modular device for domestic switching devices
Model Single push button
Method of operation Push button
Operating principle Electromechanical
Number of contacts as normally closed contact 0
Number of contacts as normally open contact 1
Number of contacts as change-over contact 0
Number of revolving contacts 0
Contactless type No
Number of rockers 1
Number of modules (module system) 1
Number of poles 1
Nominal voltage 250 V
Rated current 10 A
With lighting No
With light source No
With complemantary luminous signal Yes
Monitoring contact No
Connection type Screwed terminal
Mounting method Module frame
Type of fastening Engage (snap)
Material Plastic
Material quality Thermoplastic
Halogen free No
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Bronze
Transparent No
Label space/information surface No
Imprint None
Suitable for degree of protection (IP) IP20
Device width 45 mm
Device height 62 mm
Device depth 42 mm
Min. depth of built-in installation box 30 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Built-in depth 35 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -5-70 °C
Voltage type AC
Mandatory neutral No
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
Cable nature for connection Flexible or rigid
