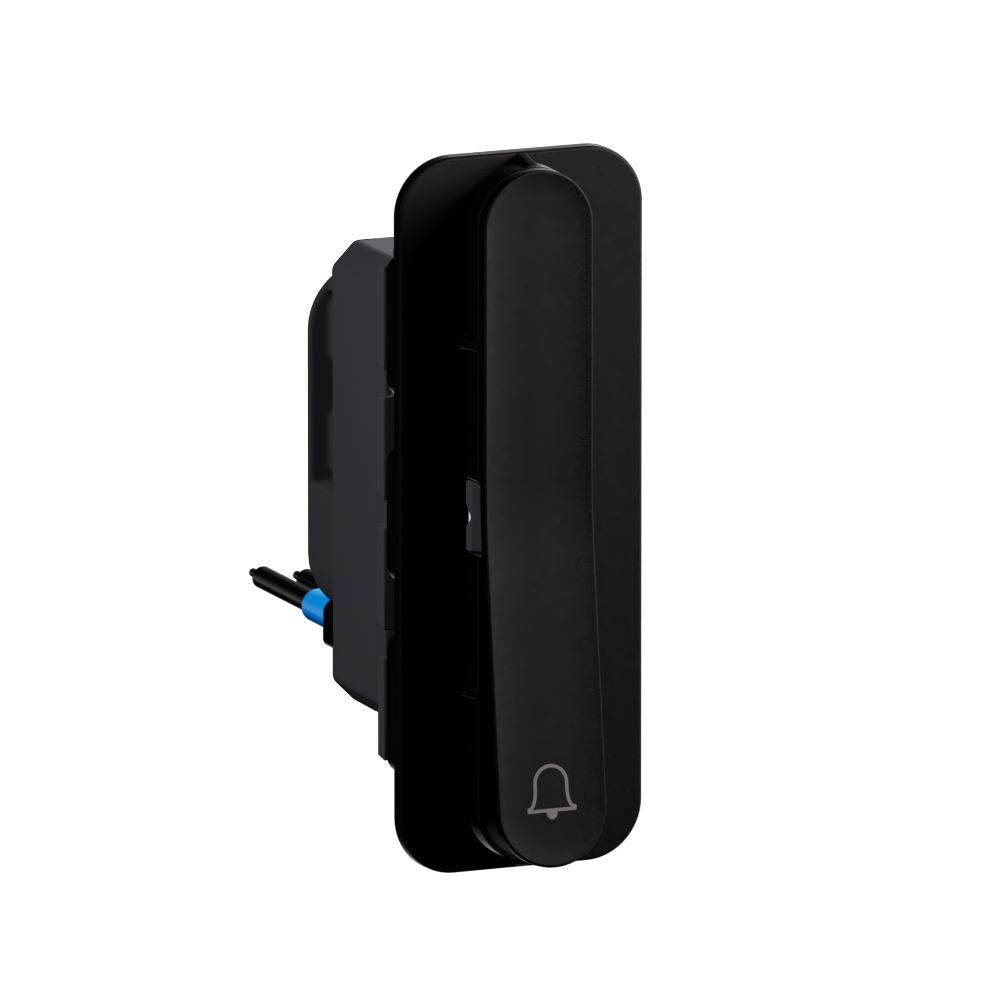

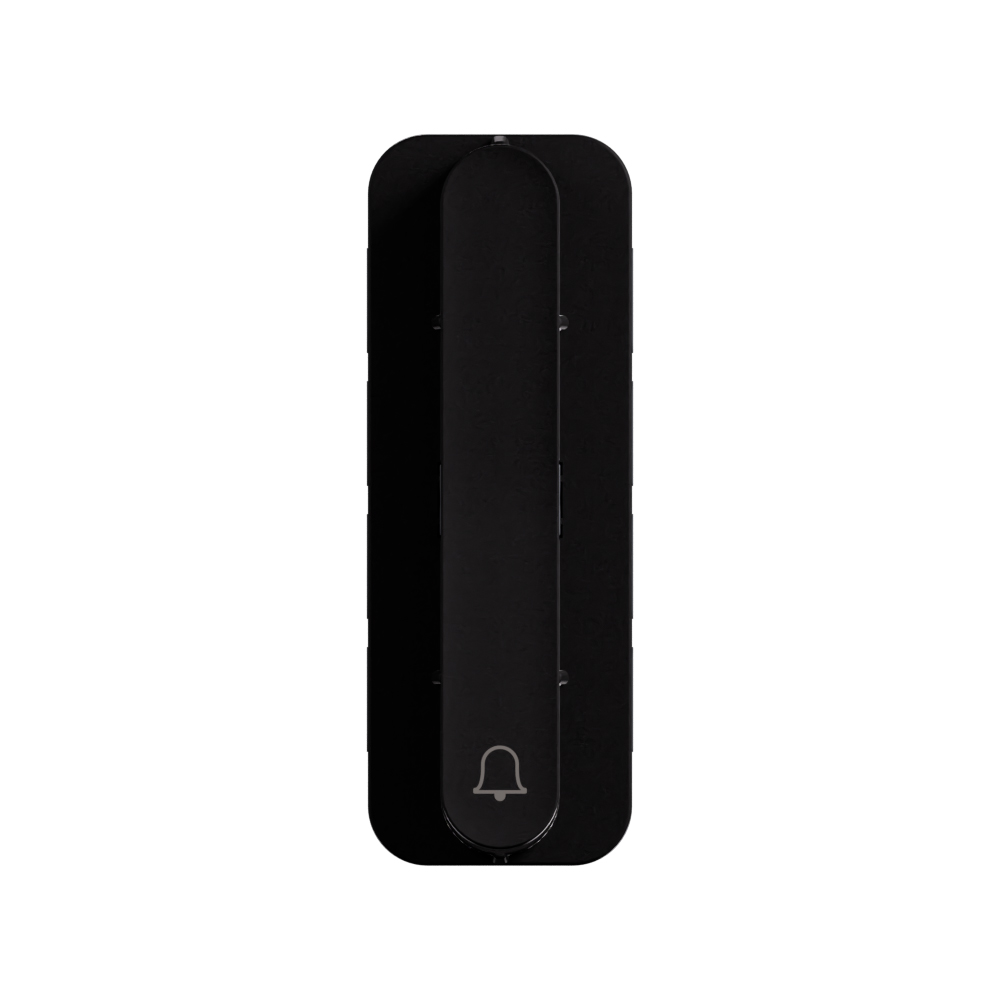

Arteor Advance - 1 module 1 way 10A slender bell push with locator matt black - 250V AC 10A IP20 - Screw terminals snap-in mounting

Arteor Advance Legrand

Arteor Advance - 1 module 1 way 10A slender bell push with locator matt black - 250V AC 10A IP20 - Screw terminals snap-in mounting

REF. AA23103MB EAN. 3414973145038
Offers a gentle touch for effortless light control with smooth, quiet operation. Its 1 module, 1 way, 10A electromechanical design with screwed terminals ensures reliable switching of SBL and LED loads.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Offers a gentle touch for effortless light control with smooth, quiet operation. Its 1 module, 1 way, 10A electromechanical design with screwed terminals ensures reliable switching of SBL and LED loads.

Product characteristics
  • 1-module, 1-way 10A electromechanical bell push, optimized for modular domestic switching applications at 250V AC.
  • Matt black thermoplastic front with lacquered surface and slender 1M format for discreet, contemporary integration.
  • Integrated locator function provides a visible reference point to quickly identify the bell push in low-light conditions.
  • Rated 10A for reliable switching of the full rated current on inductive and resistive SBL loads and LED circuits.
  • Screw-type terminals for 0.75 to 1.5mm² flexible or rigid conductors and snap-in modular mounting ensure secure, efficient installation.
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch & sound
  • Deep black with a smooth matt aspect
  • The slender format offers a unique ergonomy with a low angle of 3.5° for optimal and elegant integration in the environment

Technical characteristics

Assembly arrangement Modular device for domestic switching devices
Model Single push button
Method of operation Push button
Operating principle Electromechanical
Number of contacts as normally closed contact 0
Number of contacts as normally open contact 1
Number of contacts as change-over contact 0
Number of revolving contacts 0
Contactless type No
Number of rockers 1
Number of modules (module system) 1
Number of poles 1
Nominal voltage 250 V
Rated current 10 A
With lighting Yes
With light source Yes
With complemantary luminous signal No
Monitoring contact No
Connection type Screwed terminal
Mounting method Module frame
Type of fastening Engage (snap)
Material Plastic
Material quality Thermoplastic
Halogen free No
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Black
Transparent No
Label space/information surface No
Imprint Symbol "bell"
Suitable for degree of protection (IP) IP20
Device width 22.5 mm
Device height 62 mm
Device depth 42 mm
Min. depth of built-in installation box 30 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Built-in depth 35 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -5-70 °C
Voltage type AC
Mandatory neutral No
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
Cable nature for connection Flexible or rigid
