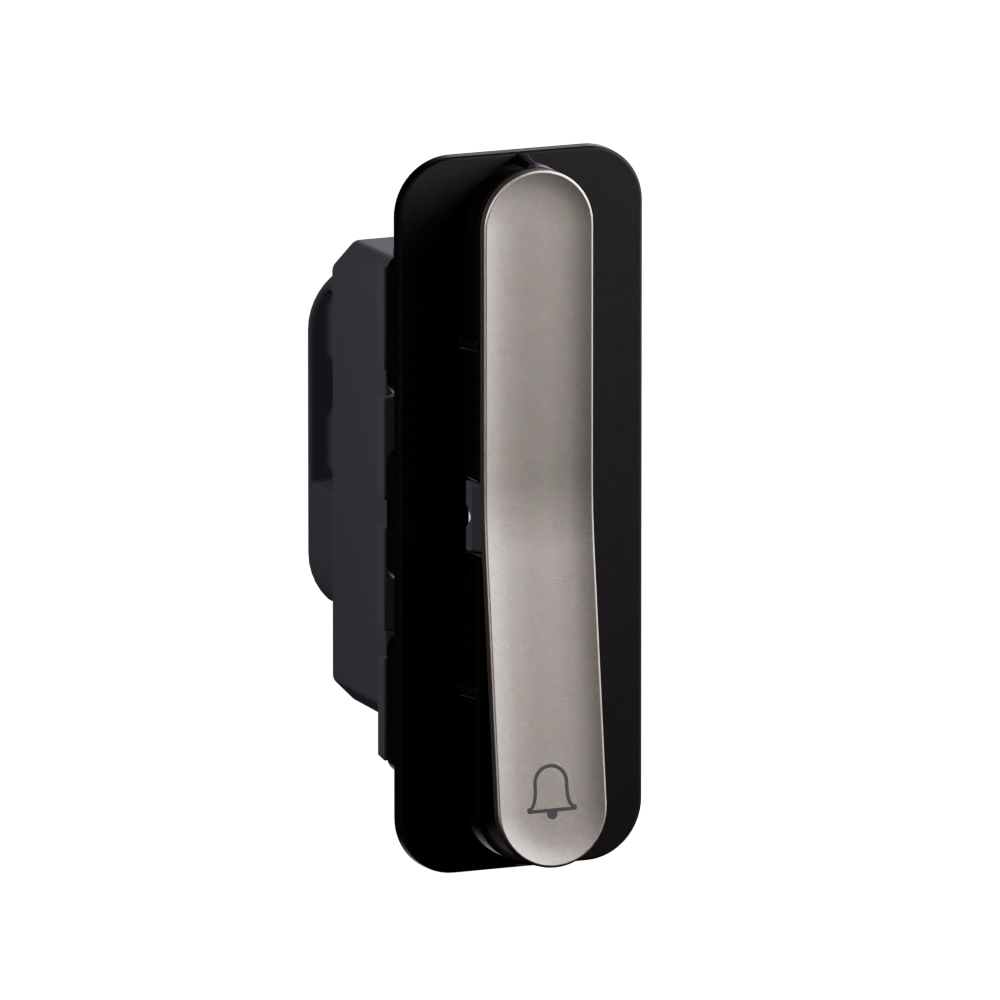

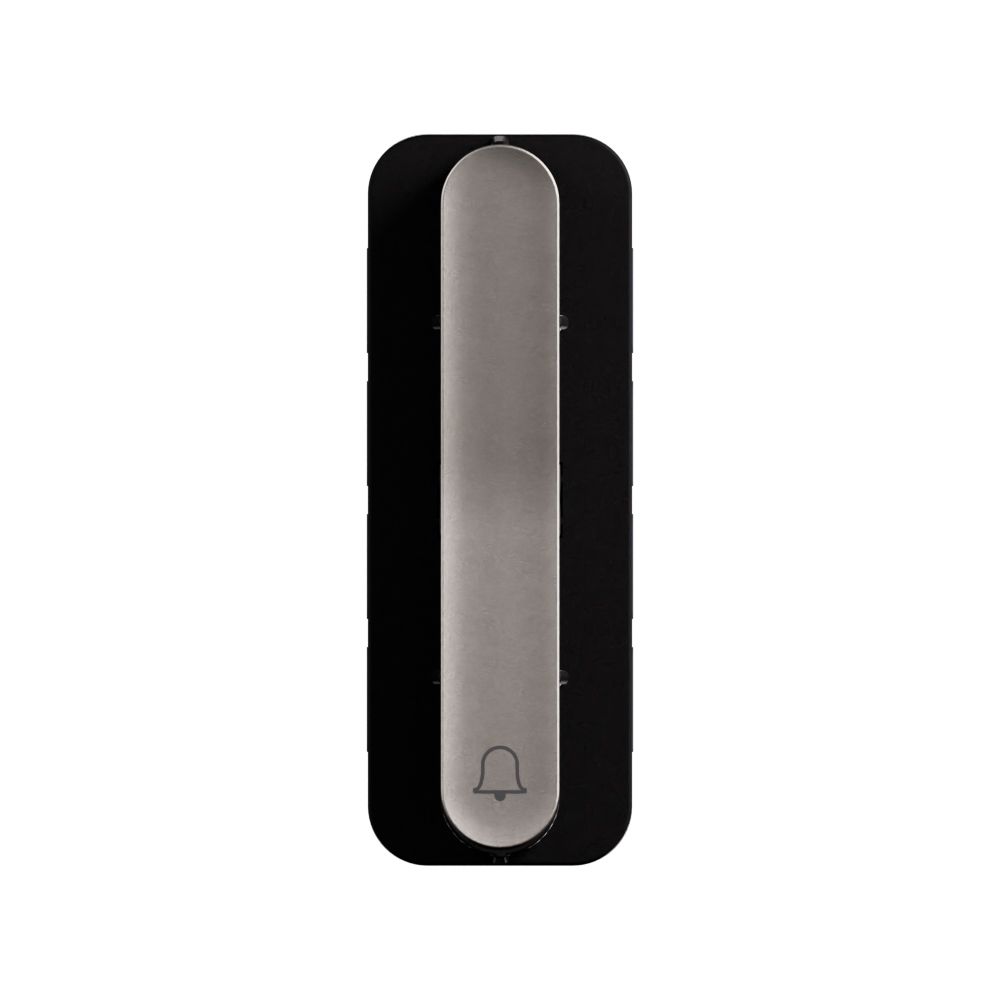

Arteor Advance - 1 module 1 way 10A slender bell push matt titanium - 250V AC electromechanical push button IP20

Arteor Advance Legrand

Arteor Advance - 1 module 1 way 10A slender bell push matt titanium - 250V AC electromechanical push button IP20

REF. AA23102MT EAN. 3414973144970
This 1 module, 1 way, 10A matt titanium bell push offers smooth, quiet operation, automatically returns to its original state, and supports inductive, resistive, and LED loads. Screw terminals ensure secure, reliable installation.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

This 1 module, 1 way, 10A matt titanium bell push offers smooth, quiet operation, automatically returns to its original state, and supports inductive, resistive, and LED loads. Screw terminals ensure secure, reliable installation.

Product characteristics
  • One-module, one-way 10A electromechanical bell push, 1 pole, 250V AC, for modular domestic switching applications
  • Matt titanium thermoplastic front with lacquered surface for a robust, low-glare technical finish
  • Momentary push button with automatic return to original position for precise, non-latching actuation
  • Rated 10A for switching full load on inductive and resistive SBL loads and LED circuits, IP20, indoor use
  • Slender 1M format with screwed terminals (0.75mm² to 1.5mm²) and snap-in mounting for ergonomic, secure installation
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch & sound
  • Titanium with a smooth matte finish
  • The slender format offers unique ergonomics with a low 3.5° angle for optimal and elegant integration into the environment

Technical characteristics

Assembly arrangement Modular device for domestic switching devices
Model Single push button
Method of operation Push button
Operating principle Electromechanical
Number of contacts as normally closed contact 0
Number of contacts as normally open contact 1
Number of contacts as change-over contact 0
Number of revolving contacts 0
Contactless type No
Number of rockers 1
Number of modules (module system) 1
Number of poles 1
Nominal voltage 250 V
Rated current 10 A
With lighting No
With light source No
With complemantary luminous signal No
Monitoring contact No
Connection type Screwed terminal
Mounting method Module frame
Type of fastening Engage (snap)
Material Plastic
Material quality Thermoplastic
Halogen free No
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Titanium
Transparent No
Label space/information surface No
Imprint Symbol "bell"
Suitable for degree of protection (IP) IP20
Device width 22.5 mm
Device height 62 mm
Device depth 42 mm
Min. depth of built-in installation box 30 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Built-in depth 35 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -5-70 °C
Voltage type AC
Mandatory neutral No
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
Cable nature for connection Flexible or rigid
