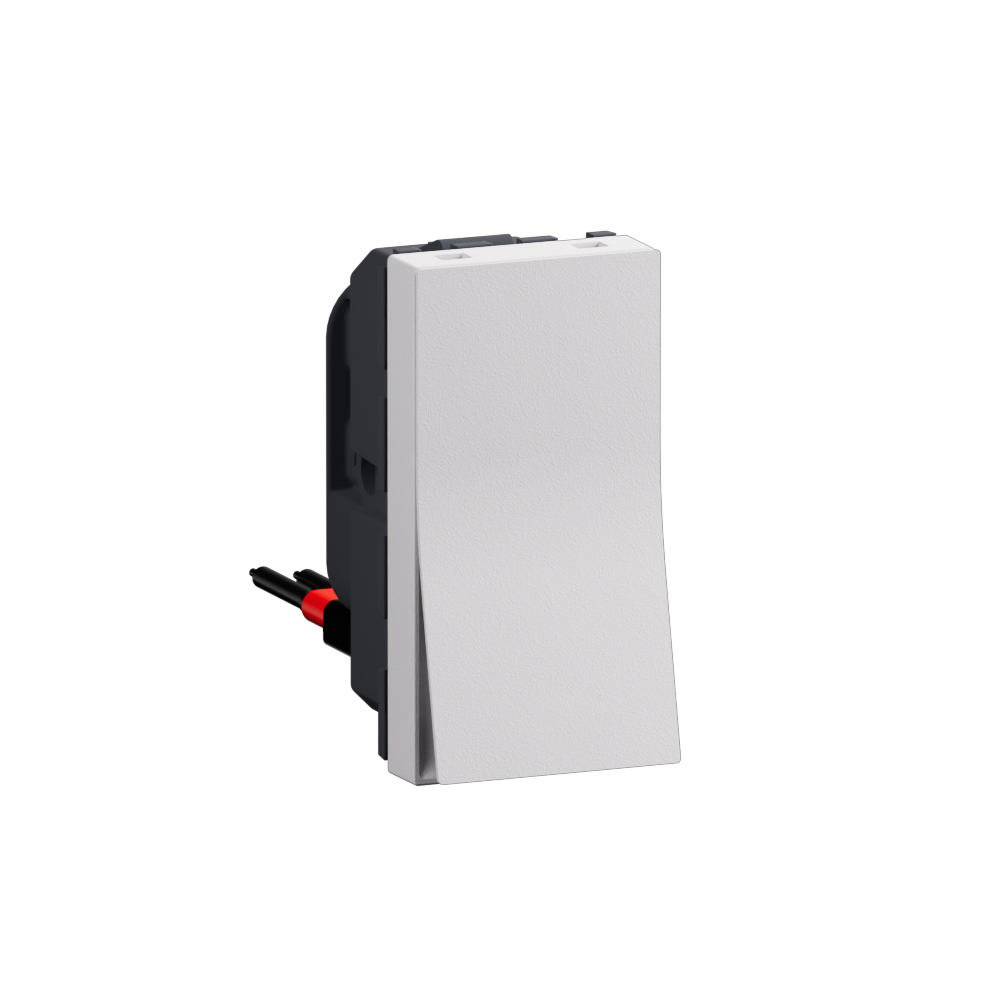

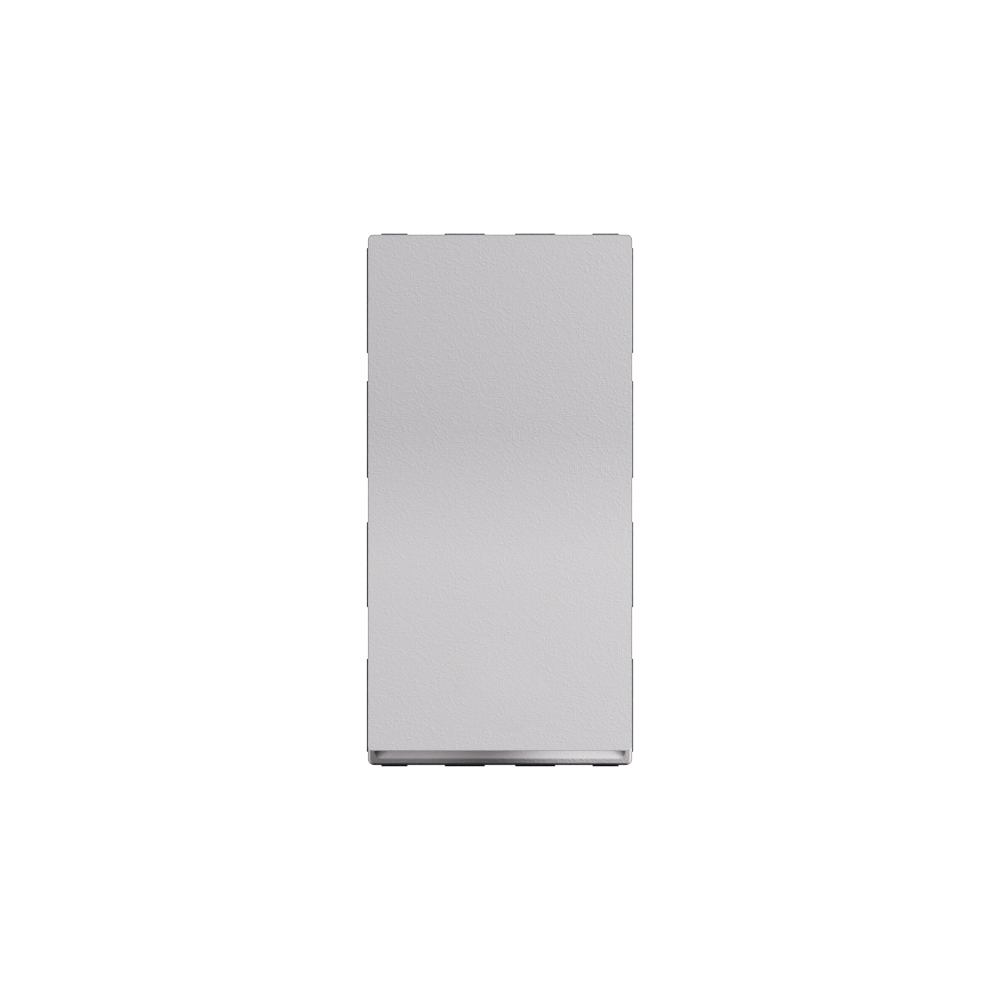

Arteor Advance - 1 module 1 way 10A single pole push button with locator matt white - 230V AC 10A SP - Screw terminals IP20

Arteor Advance Legrand

Arteor Advance - 1 module 1 way 10A single pole push button with locator matt white - 230V AC 10A SP - Screw terminals IP20

REF. AC23107MW EAN. 3414972749619
Offers a gentle touch for effortless light control with smooth, quiet operation. This 1 module, 1 way, 10A single pole push button ensures reliable 230V AC switching for SBL and LED loads.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Offers a gentle touch for effortless light control with smooth, quiet operation. This 1 module, 1 way, 10A single pole push button ensures reliable 230V AC switching for SBL and LED loads.

Product characteristics
  • 1-module, 1-way, 10A single-pole push-button mechanism optimized for modular domestic switching applications at 230V AC.
  • Matt white thermoplastic front (similar to RAL 9003) with smooth, powdery finish for a discreet, contemporary appearance.
  • Integrated locator function provides a visible reference point to quickly identify the push button in low-light environments.
  • Rated 10A for reliable switching of the full load current on inductive and resistive SBL loads and LED circuits in IP20 indoor installations.
  • Compact 1M module (22.5x45x38mm) with snap-in mounting and screw terminals (0.75mm² to 1.5mm² flexible or rigid) for fast, secure wiring in 25mm minimum depth boxes.
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch & sound
  • Powdery white with a smooth matt aspect
  • The square format enables modularity for lighting control

Technical characteristics

Assembly arrangement Modular device for domestic switching devices
Model Single push button
Method of operation Push button
Operating principle Electromechanical
Number of contacts as normally closed contact 0
Number of contacts as normally open contact 1
Number of contacts as change-over contact 0
Number of revolving contacts 0
Contactless type No
Number of rockers 1
Number of modules (module system) 1
Number of poles 1
Nominal voltage 230 V
Rated current 10 A
With lighting Yes
With light source Yes
With complemantary luminous signal No
Monitoring contact No
Connection type Screwed terminal
Mounting method Module frame
Type of fastening Engage (snap)
Material Plastic
Material quality Thermoplastic
Halogen free No
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Transparent No
Label space/information surface No
Imprint None
Suitable for degree of protection (IP) IP20
Device width 22.5 mm
Device height 45 mm
Device depth 38 mm
Min. depth of built-in installation box 25 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Built-in depth 35 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -5-70 °C
Voltage type AC
Mandatory neutral No
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
Cable nature for connection Flexible or rigid
