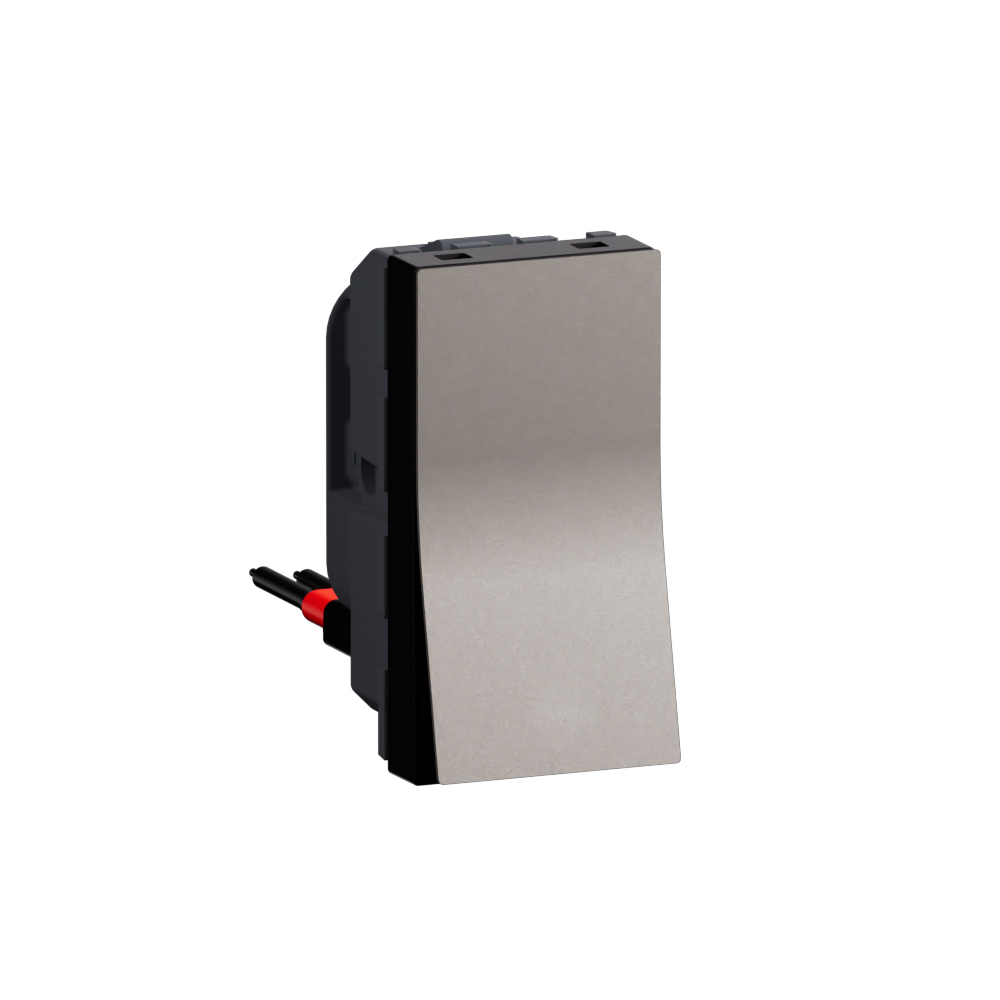

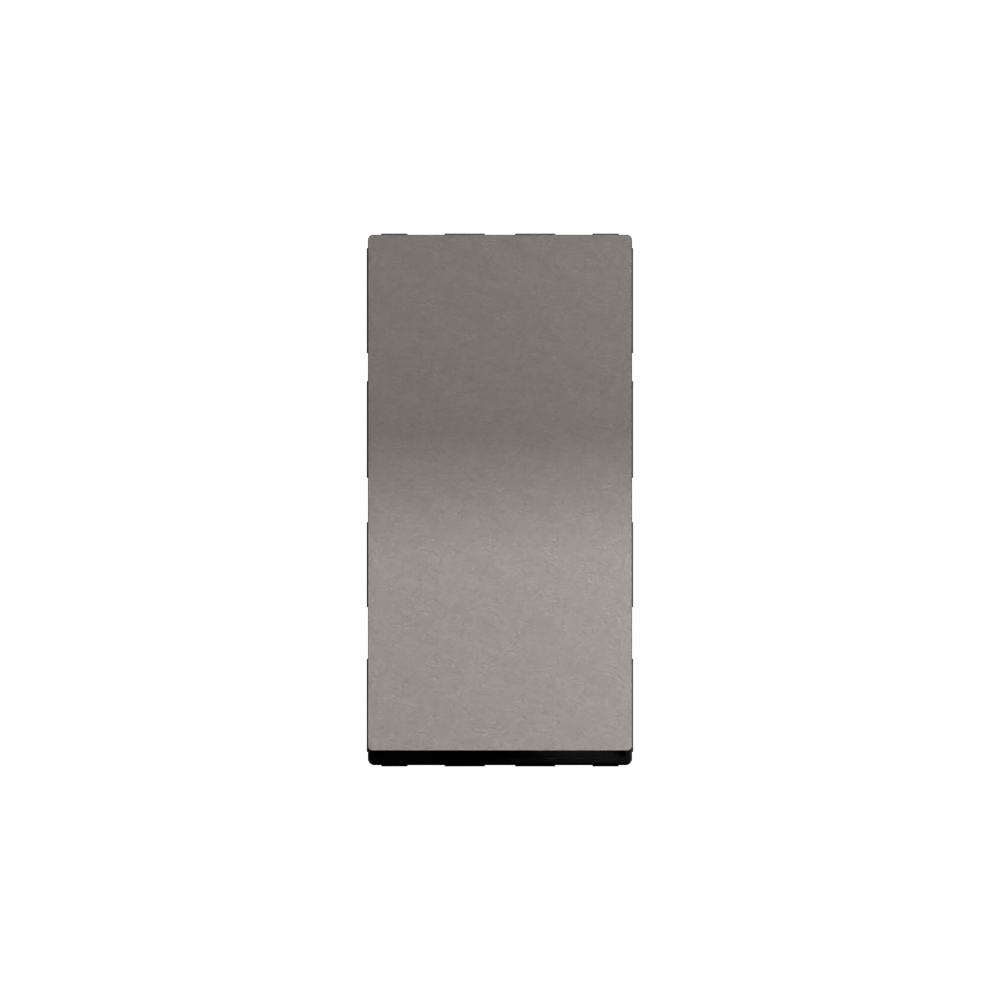

Arteor Advance - 1 module 1 way 10A single pole push button with locator matt titanium - 230V AC modular switch - Matt titanium finish

Arteor Advance Legrand

Arteor Advance - 1 module 1 way 10A single pole push button with locator matt titanium - 230V AC modular switch - Matt titanium finish

REF. AC23107MT EAN. 3414972749589
Offers a gentle touch for effortless light control with smooth, quiet operation. The 1 module, 1 way, 10A single pole push button with locator ensures easy location in the dark. Its matt titanium finish and screw-type terminals deliver
Download product sheet
Colour :
Imprint :
With lighting :
You can only compare 4 products, you must remove 1 to add this one

Description

Offers a gentle touch for effortless light control with smooth, quiet operation. The 1 module, 1 way, 10A single pole push button with locator ensures easy location in the dark. Its matt titanium finish and screw-type terminals deliver

Product characteristics
  • 1-module, 1-way, 10A single-pole push-button mechanism optimized for modular domestic switching applications at 230V AC.
  • Matt titanium thermoplastic front with lacquered surface finish delivers a premium, low-glare aesthetic that coordinates with Arteor Advance plates.
  • Integrated locator function provides a discrete visual reference to quickly identify the push button in low-light environments.
  • Rated 10A at 230V AC for reliable switching of full-load inductive and resistive SBL loads and LED circuits in indoor installations (IP20).
  • Compact 1M module (22.5x45x38mm) with snap-in mounting and screw terminals (0.75mm² to 1.5mm², flexible or rigid) for fast, secure wiring and installation.
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch & sound
  • Titanium with a smooth matte finish
  • The square format enables modularity for lighting control

Technical characteristics

Assembly arrangement Modular device for domestic switching devices
Model Single push button
Method of operation Push button
Operating principle Electromechanical
Number of contacts as normally closed contact 0
Number of contacts as normally open contact 1
Number of contacts as change-over contact 0
Number of revolving contacts 0
Contactless type No
Number of rockers 1
Number of modules (module system) 1
Number of poles 1
Nominal voltage 230 V
Rated current 10 A
With lighting Yes
With light source Yes
With complemantary luminous signal No
Monitoring contact No
Connection type Screwed terminal
Mounting method Module frame
Type of fastening Engage (snap)
Material Plastic
Material quality Thermoplastic
Halogen free No
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Titanium
Transparent No
Label space/information surface No
Imprint None
Suitable for degree of protection (IP) IP20
Device width 22.5 mm
Device height 45 mm
Device depth 38 mm
Min. depth of built-in installation box 25 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Built-in depth 35 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -5-70 °C
Voltage type AC
Mandatory neutral No
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
Cable nature for connection Flexible or rigid
