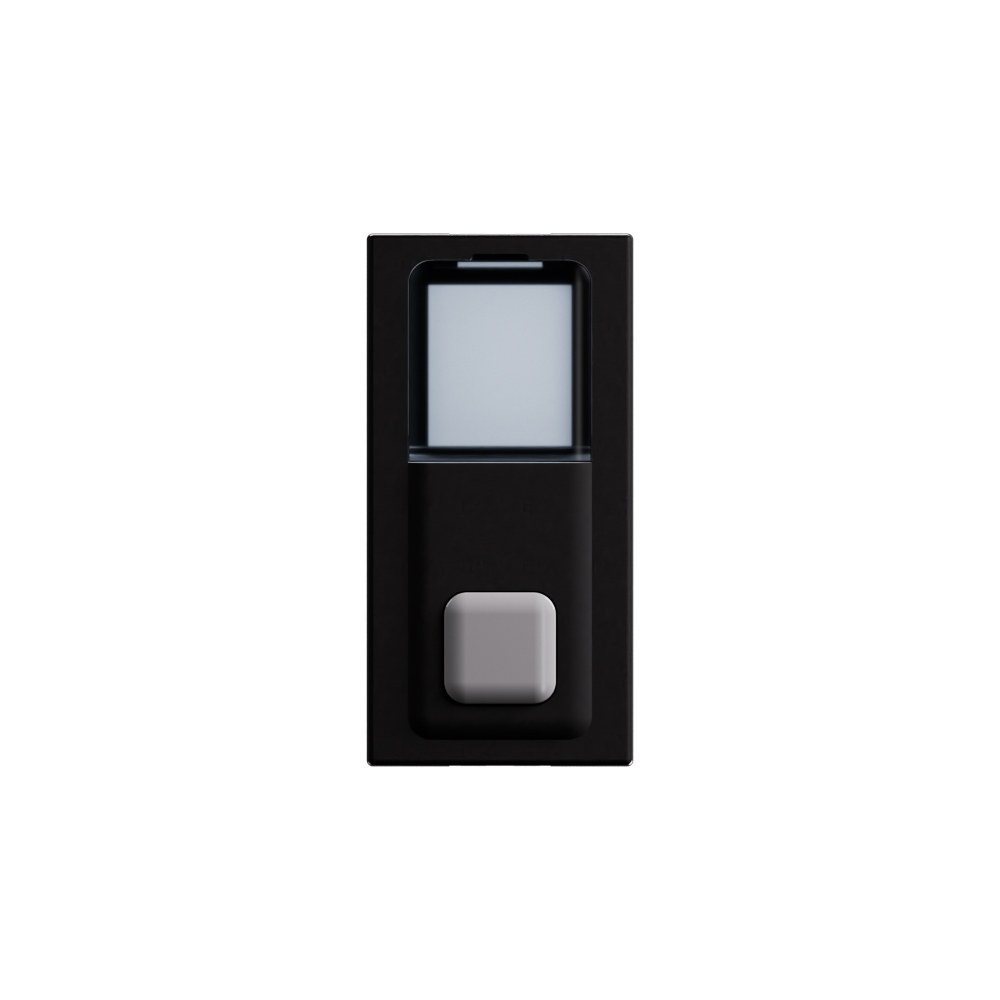

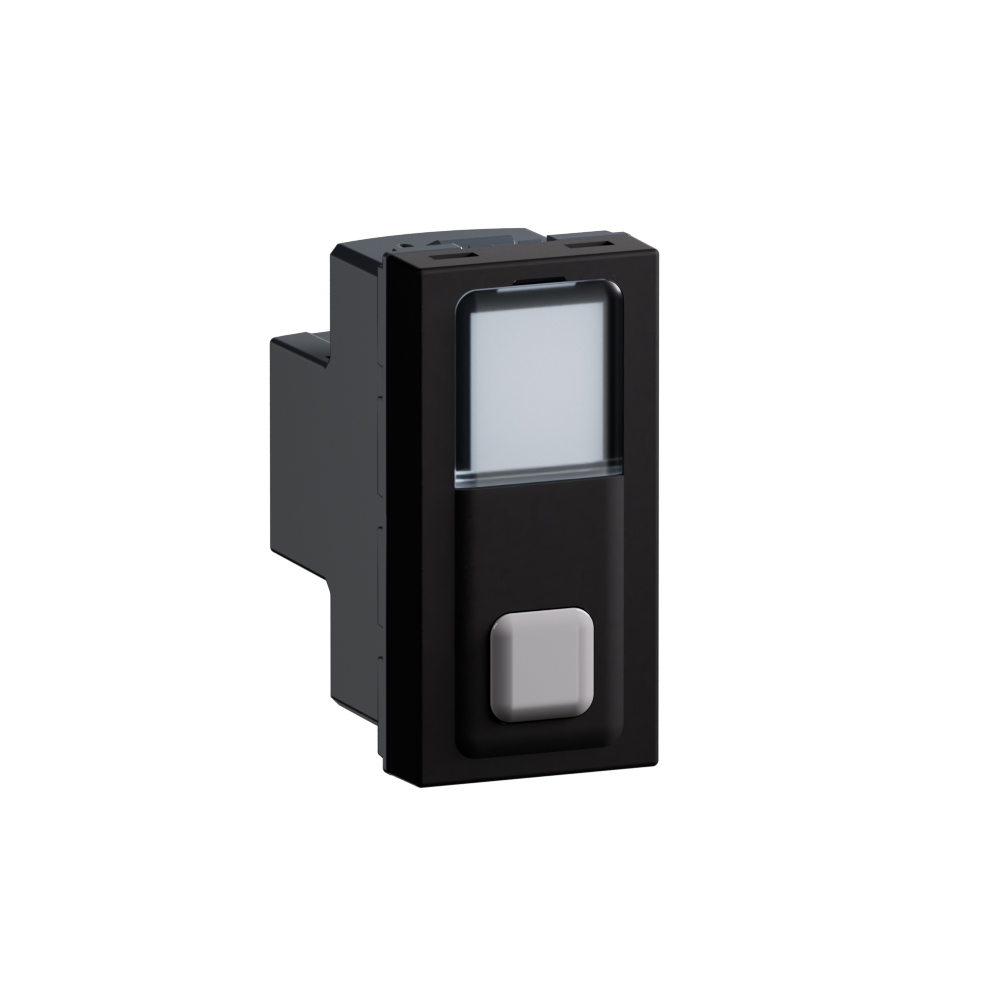

Arteor Advance - 1 module 1 way 10A single pole bell push call confirmation reset matt black - 240V AC push button with luminous signal

Arteor Advance Legrand

Arteor Advance - 1 module 1 way 10A single pole bell push call confirmation reset matt black - 240V AC push button with luminous signal

REF. AC23105MB EAN. 3414972749374
Offers a gentle touch for effortless light control with smooth, quiet operation. This 1 module, 1 way, 10A bell push automatically returns to its original state and handles inductive, resistive, and LED loads with screw terminals.
Download product sheet
Colour :
You can only compare 4 products, you must remove 1 to add this one

Description

Offers a gentle touch for effortless light control with smooth, quiet operation. This 1 module, 1 way, 10A bell push automatically returns to its original state and handles inductive, resistive, and LED loads with screw terminals.

Product characteristics
  • 1-module, 1-way 10A single-pole bell push for modular domestic switching applications at 240V AC, 40-50Hz
  • Matt black thermoplastic front with lacquered surface finishing for a deep, low-glare aesthetic in Arteor Advance installations
  • Momentary push button with electronic operating principle that automatically returns to its original state for call/confirmation/reset functions
  • Rated 10A and suitable for switching the full rated current on inductive and resistive SBL loads and LED circuits within IP20 indoor environments
  • Module-frame mounting with snap fastening and screwed terminals for secure wiring of flexible or rigid cables, with label space and terminal marking indication for clear identification
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch & sound
  • Deep black with a smooth matt aspect
  • The square format enables modularity

Technical characteristics

Assembly arrangement Modular device for domestic switching devices
Model Other
Method of operation Push button
Operating principle Electronic
Contactless type No
Number of modules (module system) 1
Nominal voltage 240 V
Rated current 0.5 A
With lighting Yes
With light source No
With complemantary luminous signal Yes
Monitoring contact No
Connection type Screwed terminal
Mounting method Module frame
Type of fastening Engage (snap)
Material Plastic
Material quality Thermoplastic
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Black
Transparent No
Label space/information surface Yes
Imprint Numbers
Suitable for degree of protection (IP) IP20
Device width 22.5 mm
Device height 45 mm
Device depth 40 mm
Min. depth of built-in installation box 45 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 40-50 Hz
Mandatory neutral Yes
Terminal marking indication Yes
Cable nature for connection Flexible or rigid
