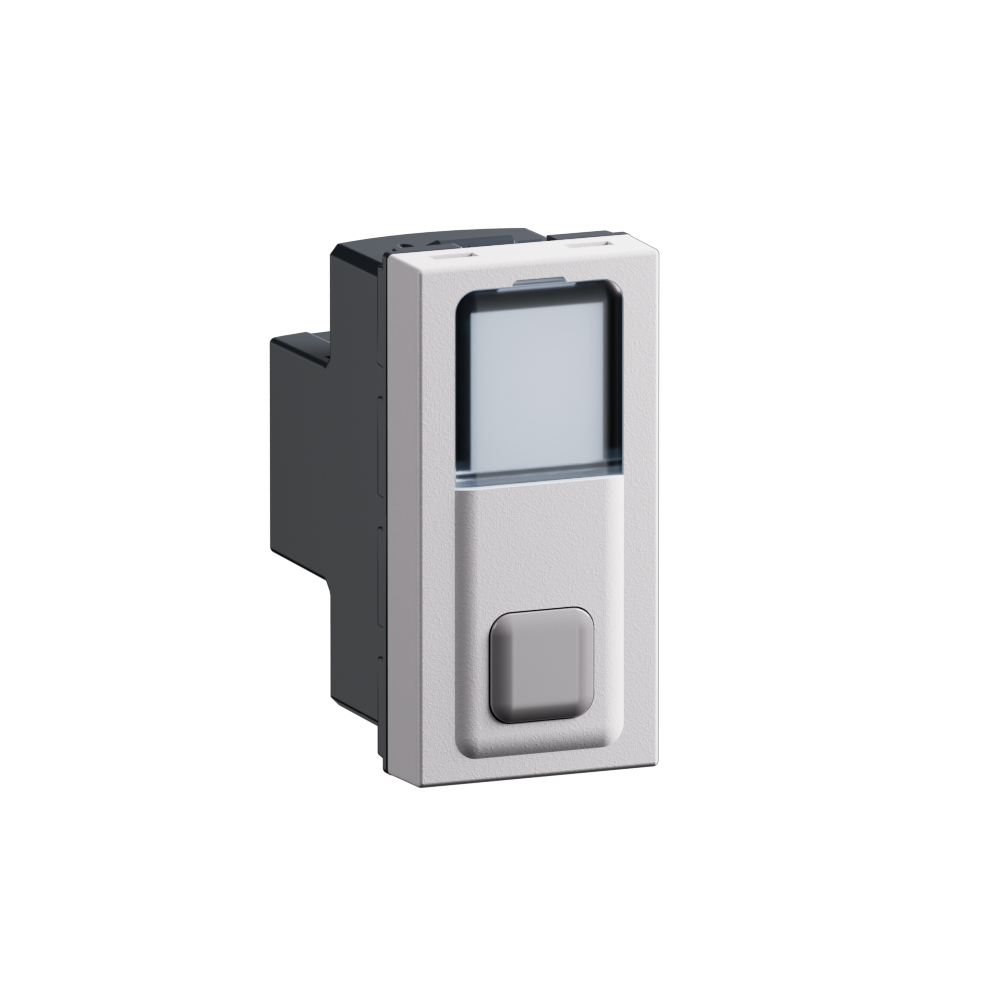

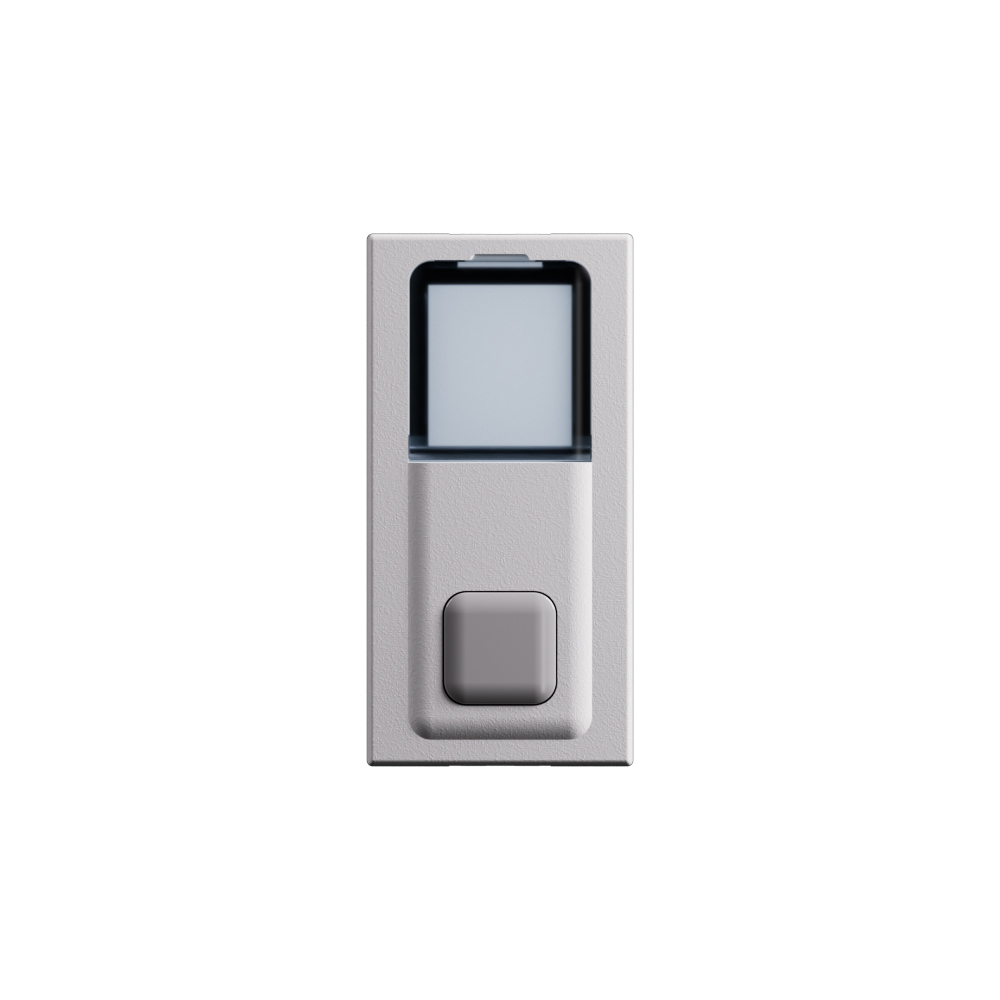

Arteor Advance - 1 module 1 way 10A single pole bell push call confirmation reset - 1M modular push button - 240V AC, IP20, matt white

Arteor Advance Legrand

Arteor Advance - 1 module 1 way 10A single pole bell push call confirmation reset - 1M modular push button - 240V AC, IP20, matt white

REF. AC23105MW EAN. 3414972749435
Offers a gentle touch for effortless light or call control with smooth, quiet operation. This 1 module, 1 way 10A single pole bell push in matt white features automatic return and screw terminals for secure wiring.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Offers a gentle touch for effortless light or call control with smooth, quiet operation. This 1 module, 1 way 10A single pole bell push in matt white features automatic return and screw terminals for secure wiring.

Product characteristics
  • One-module, one-way push-button bell switch, modular device for domestic switching systems
  • Matt white thermoplastic front with smooth, non-reflective surface finish for discreet integration
  • Momentary push button with electronic operating principle that automatically returns to its original rest position
  • Rated 10A for switching full load on inductive and resistive SBL loads and LED circuits at 240V AC, 40 to 50Hz
  • 1M module with snap-in mounting, screwed terminals for flexible or rigid cables, IP20, 22.5x45x40mm, indoor use
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch & sound
  • Powdery white with a smooth matt aspect
  • The square format enables modularity

Technical characteristics

Assembly arrangement Modular device for domestic switching devices
Model Other
Method of operation Push button
Operating principle Electronic
Contactless type No
Number of modules (module system) 1
Nominal voltage 240 V
Rated current 0.5 A
With lighting Yes
With light source No
With complemantary luminous signal Yes
Monitoring contact No
Connection type Screwed terminal
Mounting method Module frame
Type of fastening Engage (snap)
Material Plastic
Material quality Thermoplastic
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Transparent No
Label space/information surface Yes
Imprint Numbers
Suitable for degree of protection (IP) IP20
Device width 22.5 mm
Device height 45 mm
Device depth 40 mm
Min. depth of built-in installation box 45 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 40-50 Hz
Mandatory neutral Yes
Terminal marking indication Yes
Cable nature for connection Flexible or rigid
