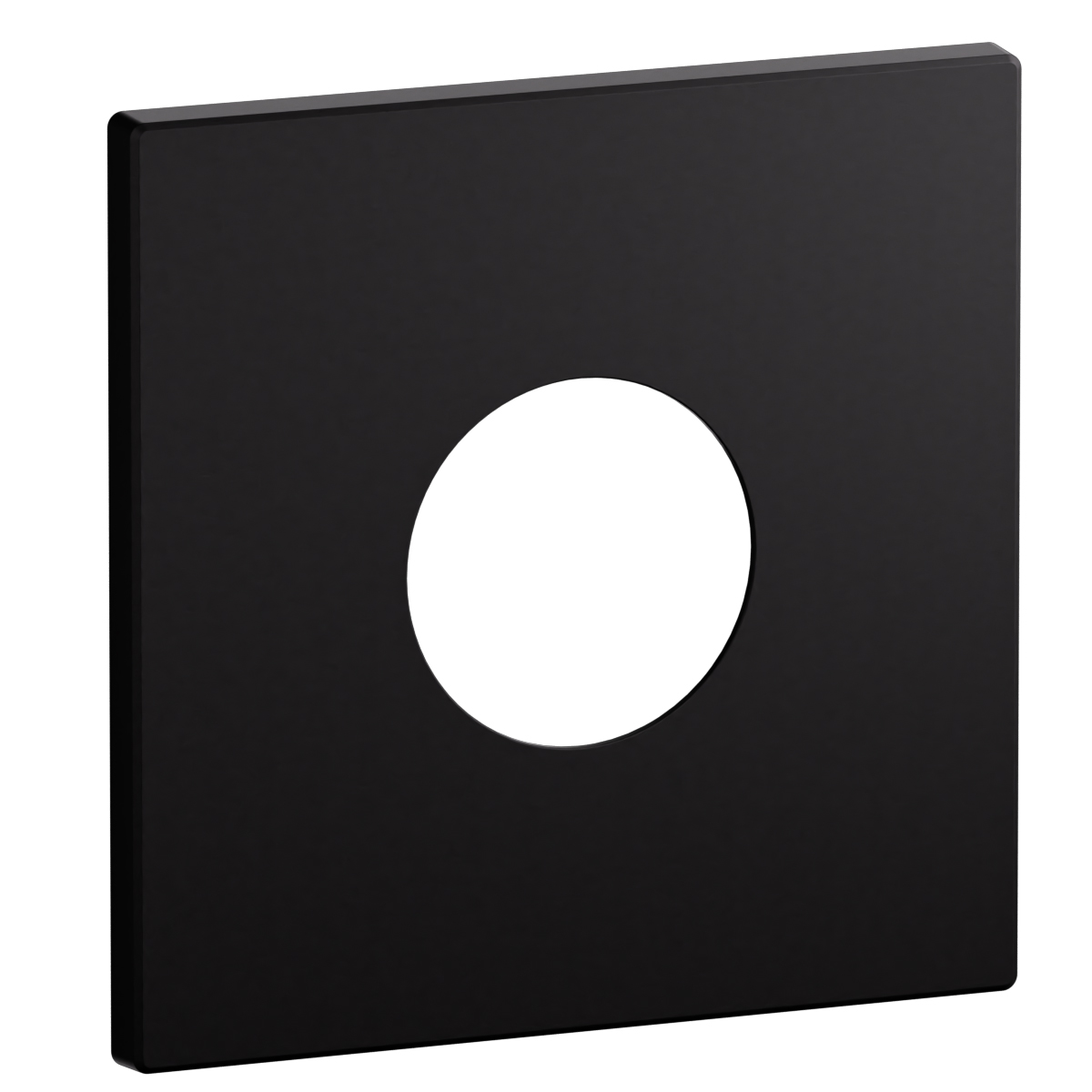

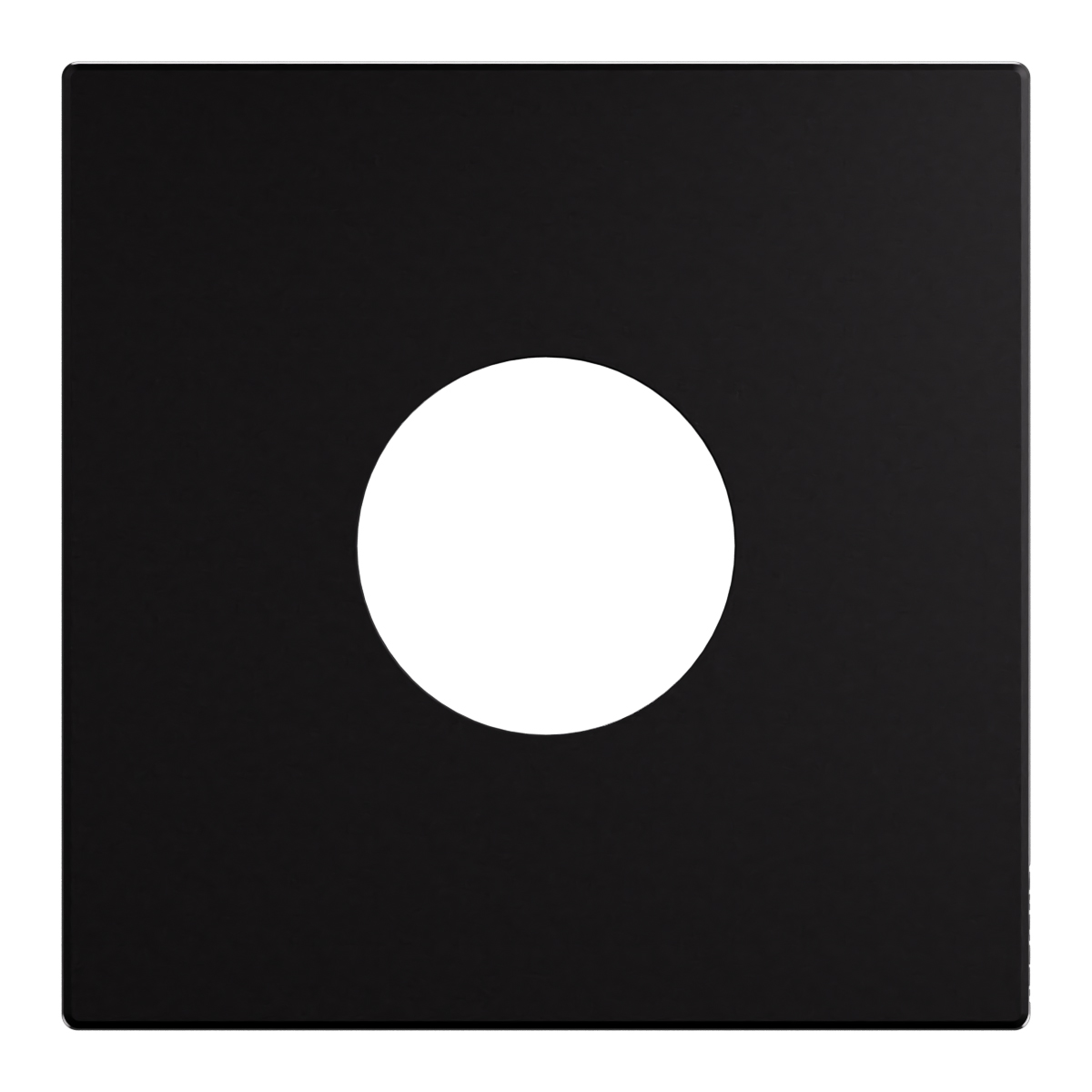

Arteor Advance - 1 gang plate+frame for slender dimmer or fan matt black - 1 gang flush-mounted plate - Matt black thermoplastic

Arteor Advance Legrand

Arteor Advance - 1 gang plate+frame for slender dimmer or fan matt black - 1 gang flush-mounted plate - Matt black thermoplastic

REF. AA1202MB EAN. 3414972723145
The 1 gang plate+frame for slender dimmer or fan matt black delivers refined aesthetics with a smooth matt aspect. Its thermoplastic, halogen-free construction and snap fastening ensure robust, flush-mounted installation.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

The 1 gang plate+frame for slender dimmer or fan matt black delivers refined aesthetics with a smooth matt aspect. Its thermoplastic, halogen-free construction and snap fastening ensure robust, flush-mounted installation.

Product characteristics
  • One-gang plate and frame for dimmer or fan control, optimized for single-device domestic switching applications
  • Deep matt black finish for reduced reflections and a refined, contemporary aesthetic on the wall
  • Plate and frame manufactured from thermoplastic polycarbonate, halogen free for enhanced safety and durability
  • Slender, low-profile design with 8.5mm depth, providing a discreet appearance that blends with modern interiors
  • Snap-on fastening and integrated adjuster ensure precise, flush-mounted installation in wall or duct boxes for interior use
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Deep black with a smooth matte finish
  • Refined design
  • Unique design blending straight and organic lines

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 1
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation Yes
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Black
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
