Arteor Advance - 1 gang plate+frame for 2x1 module slender switches frosted black - Crystal polycarbonate matt finish - Flush-mounted

Arteor Advance Legrand

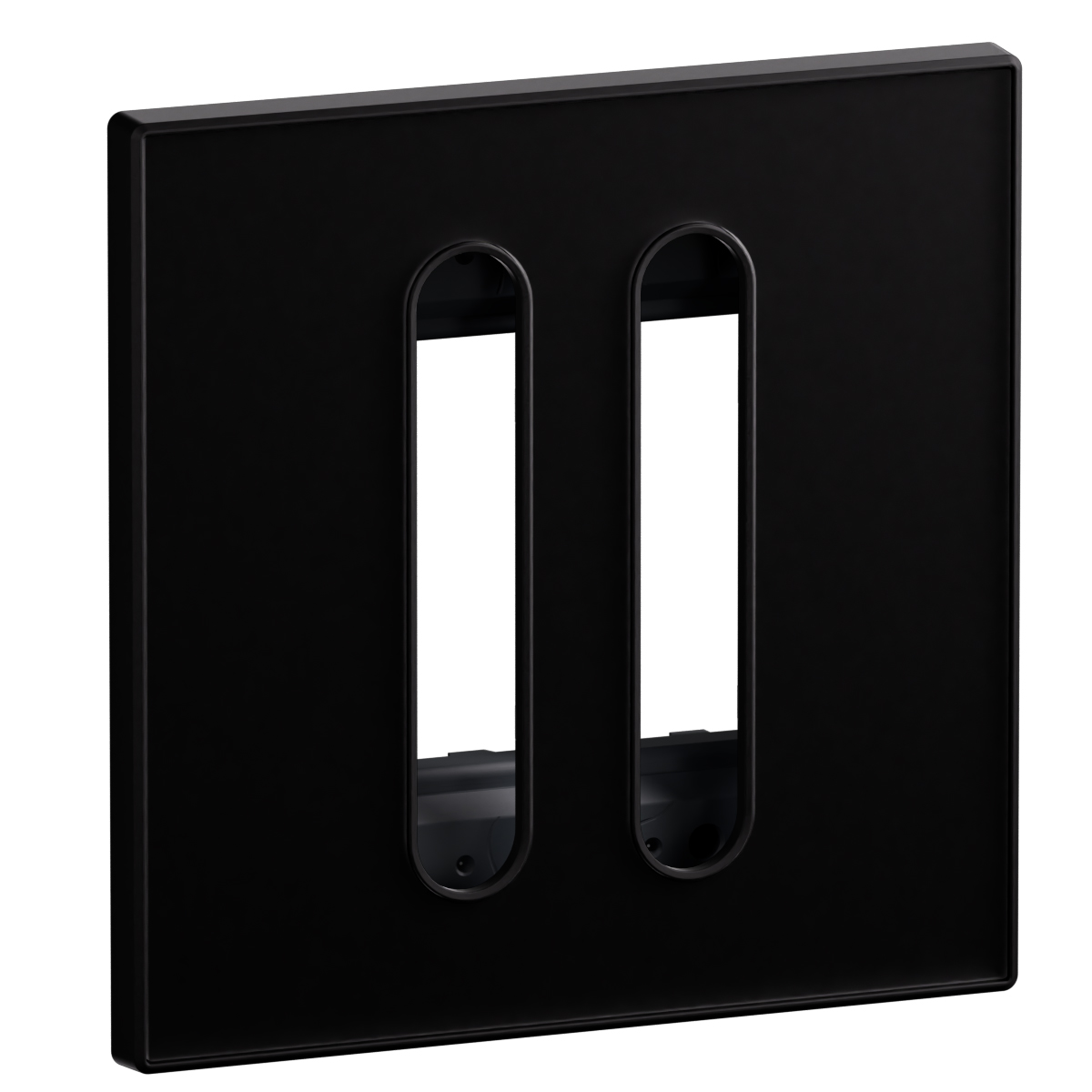

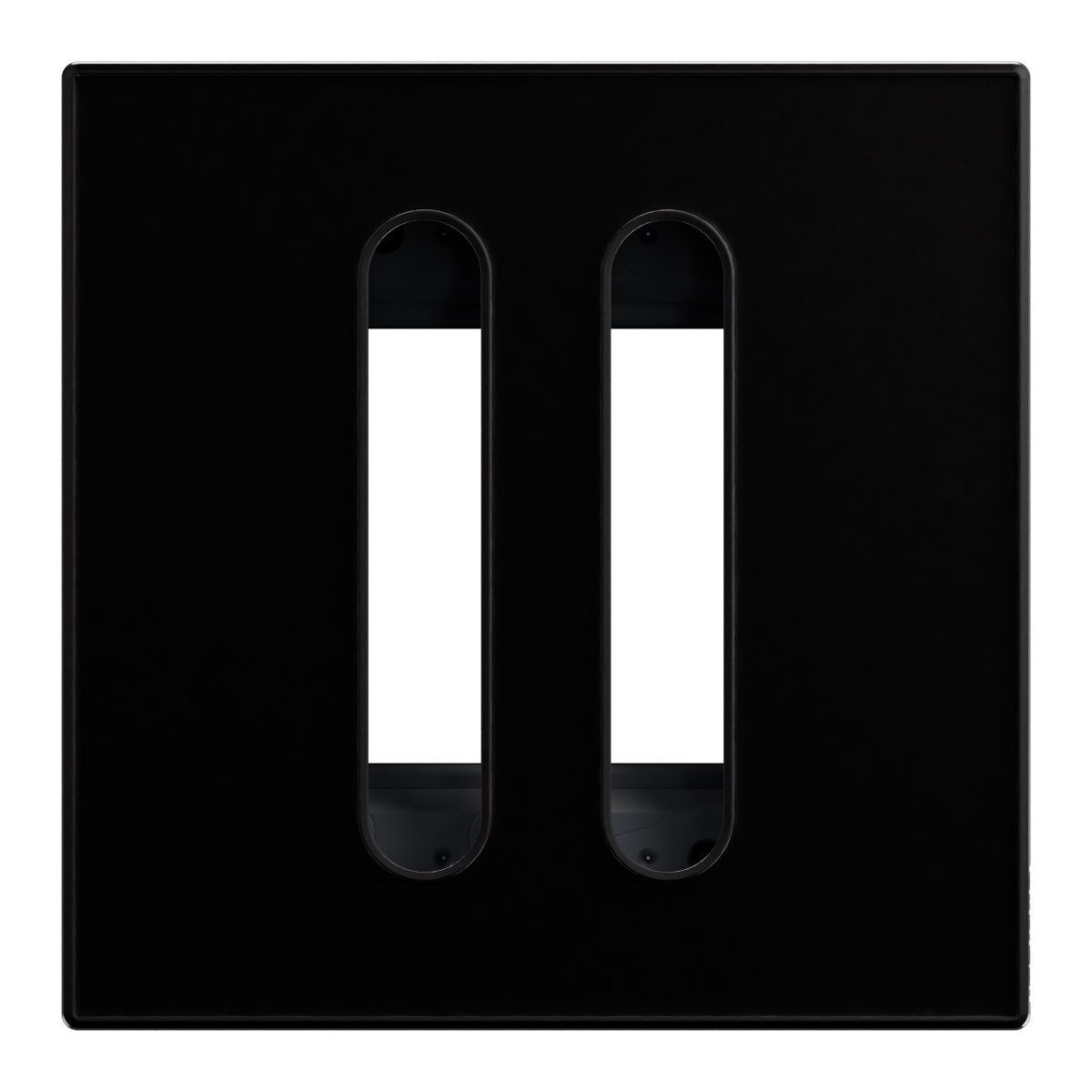

Arteor Advance - 1 gang plate+frame for 2x1 module slender switches frosted black - Crystal polycarbonate matt finish - Flush-mounted

REF. AA1201FB EAN. 3414972722902
The 1 gang plate+frame for 2x1 module slender switches frosted black delivers refined, slender design and crystal polycarbonate durability. Its velvet-touch frosted black finish ensures high opacity.
Download product sheet
Finition :
Number of modules horizontal (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

The 1 gang plate+frame for 2x1 module slender switches frosted black delivers refined, slender design and crystal polycarbonate durability. Its velvet-touch frosted black finish ensures high opacity.

Product characteristics
  • One-gang plate and frame for 2x1-module slender switches, optimized for horizontal mounting with 2 horizontal and 1 vertical module positions.
  • Frosted black matte finish for reduced glare and a refined, contemporary aesthetic in premium interior installations.
  • Plate manufactured from crystal polycarbonate thermoplastic, halogen free, providing high mechanical strength, black opacity, and velvet-touch surface feel.
  • Ultra-slender profile with 8.65mm depth and compact built-in dimensions (10.5x60.5mm) for a flush, minimalist wall appearance.
  • Flush-mounted cover frame with snap fastening and integrated adjuster for precise wall alignment, suitable for built-in, wall duct, and subfloor duct box installations in indoor environments (-5 to 35° C operating temperature).
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Crystal PC, set in a cradle, providing both velvet touch and black opacity
  • Refined design
  • Unique design blending straight and organic lines

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 1
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation Yes
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Black
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8.65 mm
Built-in width 10.5 mm
Built-in height 60.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
